2D Symbologies
144 Magellan
TM
3200VSi
Aztec — cont.
Length Control
Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a bar
code if the label length matches one of the configurable fixed lengths.
Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a
bar code if the label length falls in the range of the configurable Length 1 and Length 2 values.
Configuring Fixed Length Decoding:
1. Scan the START bar code.
2. Scan the Fixed Length Decoding bar code.
3. Scan the END bar code.
4. Set Length 1 to the first fixed length by following the Length 1, Length 2 Programming
Instructions below.
5. Set Length 2 to the second fixed length (or to ‘0000’ if there is only one fixed length) by
following the
Aztec Length 1, Length 2 Programming Instructions below.
Configuring Variable Length Decoding:
1. Scan the START bar code.
2. Scan the Variable Length Decoding bar code.
3. Scan the END bar code.
4. Set Length 1 to the minimum length by following the
Aztec Length 1, Length 2 Program-
ming Instructions
below.
5. Set Length 2 to the maximum length by following the
Aztec Length 1, Length 2 Program-
ming Instructions
below.

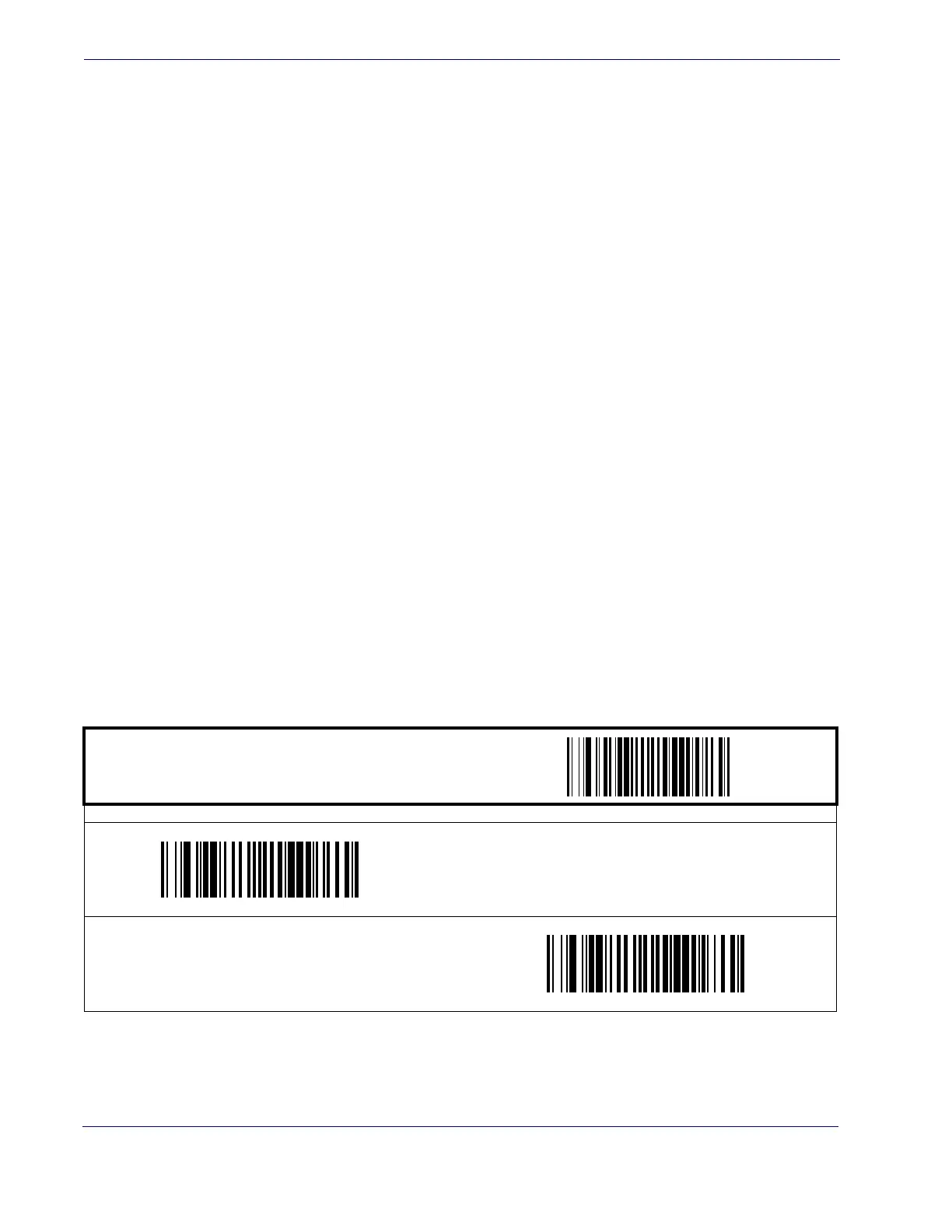

START / END
PROGRAMMING bar codes
Variable Length Decoding
DEFAULT
Fixed Length Decoding

Datalogic MAGELLAN 3200VSI Specifications

General

Tilt angle range	0 - 360 °
Decoding standards	1D/2D/GS1/PDF417
Dimensions (WxDxH)	142 x 152 x 82 mm
Power consumption (standby)	1.8 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Cable length	4.5 m
Standard interfaces	USB
Certification	RoHS

Weight and Dimensions

Weight	600 g
