Sleep Mode

Product Reference Guide

21

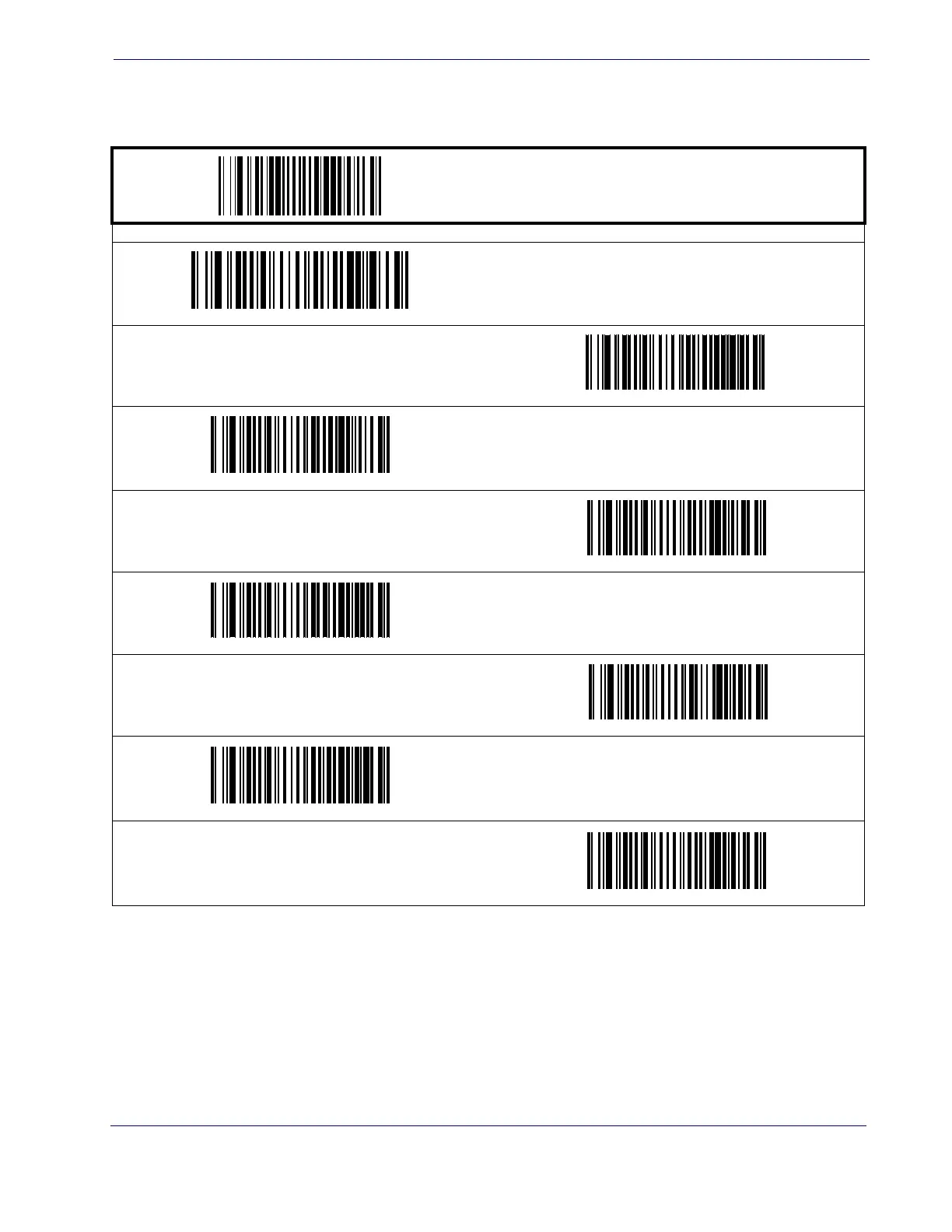

Sleep Mode

This feature specifies the amount of time with no bar code reads before the scanner enters sleep mode.

START / END

PROGRAMMING bar codes

Disable Sleep Mode

15 Seconds

30 Seconds

1 Minute

2 Minutes

3 Minutes

4 Minutes

5 Minutes

DEFAULT
