Datalogic MAGELLAN 3200VSI Product Reference Guide

Getting Started
2 Magellan
TM
3200VSi
Connecting the Scanner
The scanner kit you ordered to match your interface should provide a compatible cable for your
installation. Alternatively, if your scanner receives Power Off the Terminal (POT) it might be
possible to connect using a cable from a previously existing installation (except for USB). If you
wish to connect using an existing cable, but cannot use POT, a short adapter cable is available.
Check with your technical support representative about compatibility before connecting. Use
the appropriate instructions below when you’re ready to connect the scanner to the terminal, PC
or other host device.
Upon completing the connection via the appropriate interface instructions below, proceed to
the
Interface Related Features section of this manual and scan the bar code to select the correct
interface type.
RS-232 Serial Connection — Turn off power to the terminal/PC and connect the scanner to the
terminal/PC serial port via the RS-232 cable as shown in
Figure 1a. If the terminal will not sup-
port POT (Power Off the Terminal) to supply scanner power, use the approved power supply
(AC Adapter) as shown in
Figure 1b. Plug the AC Adapter barrel connector into the socket on
the RS-232 cable connector and the AC Adapter plug into a standard power outlet.

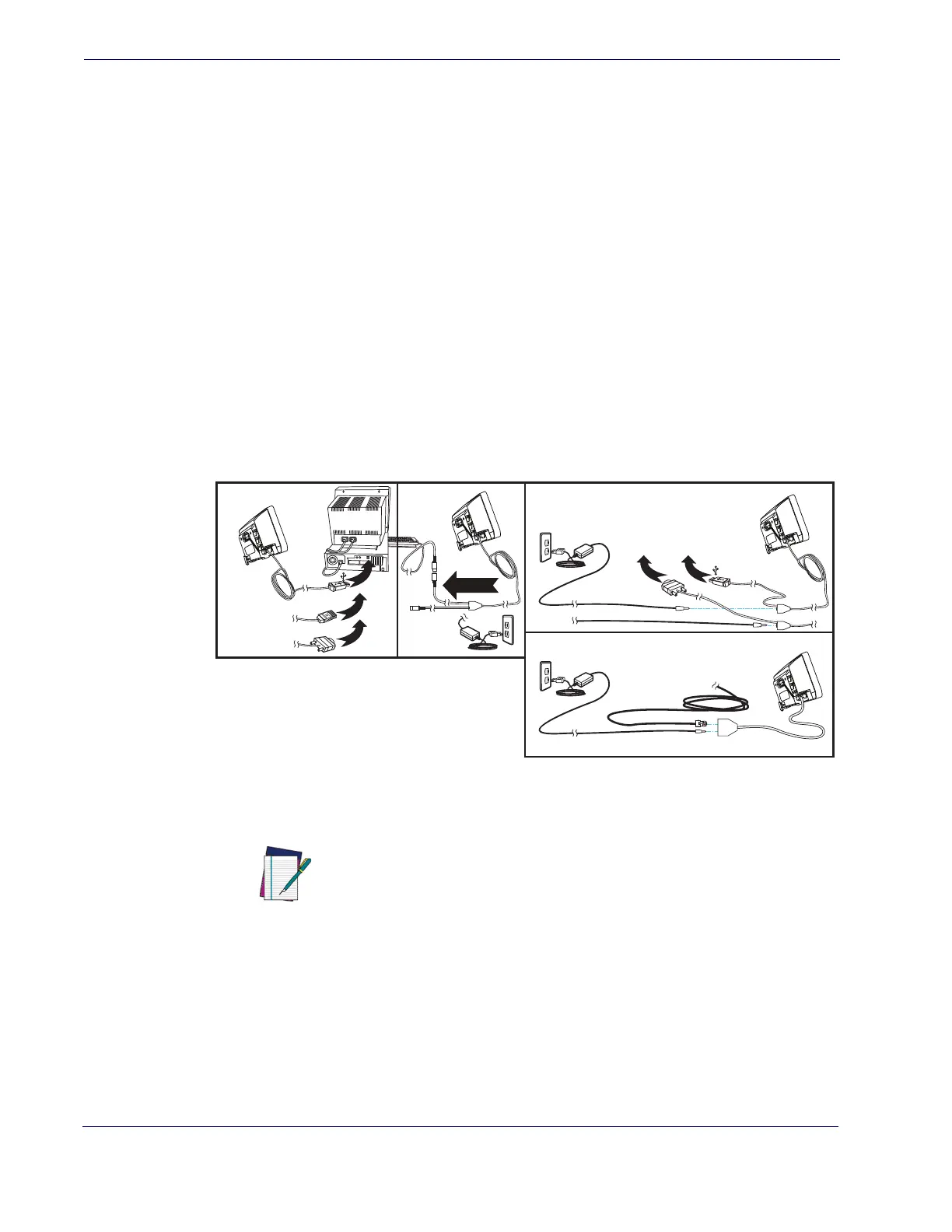

Figure 1 . Connecting the Scanner
USB Connection — Connect the scanner to a USB port on the terminal/PC using the correct
USB cable for the interface type you ordered. Reference
Figure 1.
IBM Connection — Connect the scanner to the IBM port on the terminal/PC using the correct
IBM cable. Reference
Figure 1.
NOTE
USB installations may require a power connection via an approved A/C
Adapter as shown in
Figure 1b or Figure 1c. For example, this would be
the case if the scanner is connected along with a number of other devices
to a non-powered USB hub.
U
S
B
I
B
M
or...
or...
Terminal (PC)
R
S
-
2
3
2
a
Power Off
the Terminal
(POT)
U
S
B
R
S
-
2
3
2
To Terminal (PC)
To Terminal (PC)
Other Non-POT Cables
Powered by AC Adapter
via short adapter cable
b
c
Keyboard Wedge, RS-232
and USB Cables
Powered by AC Adapter
Keyboard
Wedge

Datalogic MAGELLAN 3200VSI Specifications

General

Tilt angle range	0 - 360 °
Decoding standards	1D/2D/GS1/PDF417
Dimensions (WxDxH)	142 x 152 x 82 mm
Power consumption (standby)	1.8 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Cable length	4.5 m
Standard interfaces	USB
Certification	RoHS

Weight and Dimensions

Weight	600 g
