Symbologies

154 QuickScan® QD2100

Code 39

The following options apply to the Code 39 symbology.

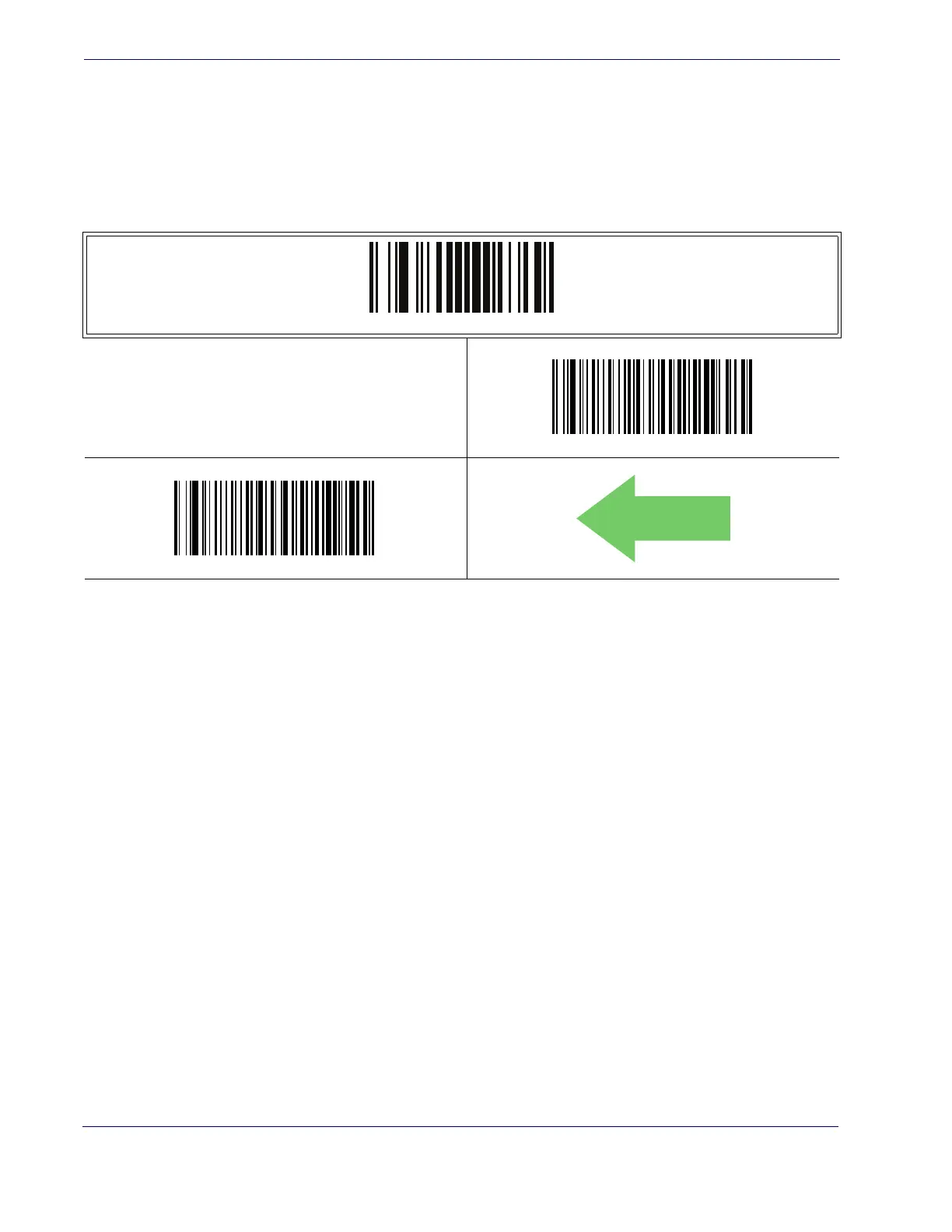

Code 39 Enable/Disable

When disabled, the reader will not read Code 39 barcodes.

ENTER/EXIT PROGRAMMING MODE

Code 39 = Disable

Code 39 = Enable

DEFAULT
