Datalogic QD2100 User Manual

RS-232 ONLY Interface
46 QuickScan® QD2100
Handshaking Control
The data interface consists of an RS-232 port designed to operate either with or without
the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Hand-
shaking Control includes the following options:
• RTS — RTS is asserted during transmissions. CTS is ignored.
• RTS/CTS — RTS is asserted during transmissions. CTS gates transmissions.
• RTS/XON/XOFF — RTS is asserted during transmissions. CTS is ignored. XON and
XOFF gate transmissions.
• RTS On/CTS — RTS is always asserted. CTS gates transmissions.
• RTS/CTS Scan Control — RTS is asserted during transmissions. CTS gates transmis-
sions and controls enable and disable state of scanner.

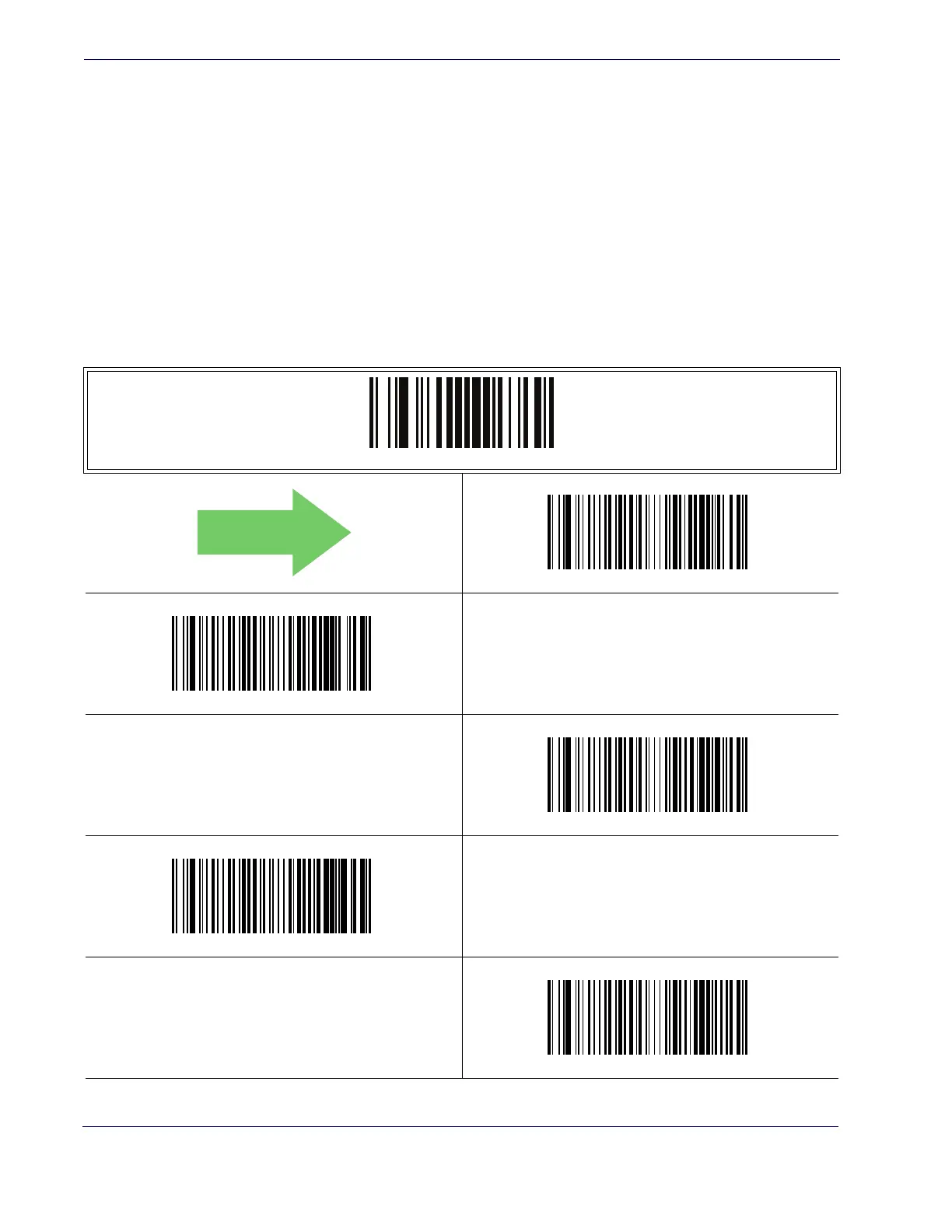

ENTER/EXIT PROGRAMMING MODE
Handshaking Control = RTS
Handshaking Control = RTS/CTS
Handshaking Control = RTS/XON/XOFF
Handshaking Control = RTS On/CTS
Handshaking Control = RTS/CTS Scan Control
DEFAULT

Datalogic QD2100 Specifications

General

Scanner Type	Linear Imager
Environmental Sealing	IP42
Operating Temperature	0 to 50 °C / 32 to 122 °F
Scan Rate	270 scans/sec
Interface	RS-232, Keyboard Wedge, USB
Drop Resistance	Withstands drops from 1.5 m / 5.0 ft onto concrete
Print Contrast Ratio	15%
Decode Capability	All standard 1D barcodes
Resolution	0.102 mm / 4 mils
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Humidity	5 to 95% non-condensing
Electrical Safety	EN60950-1
EMC	EN 55022
Light Source	LED (red)
