Using the RIDA DBT6400
14 RIDA™ DBT6400
A beam illuminates the label. The projected pattern of the
aiming system will be smaller when the reader is closer to
the bar code and larger when it is farther from the code.
Symbologies with smaller bars or elements (mil size)
should be read closer to the unit. Symbologies with larger
bars or elements (mil size) should be read farther from the
unit.
If the aiming system is centered you will get a good read.
Successful reading is signaled by an audible tone plus a
good read green spot LED indicator.

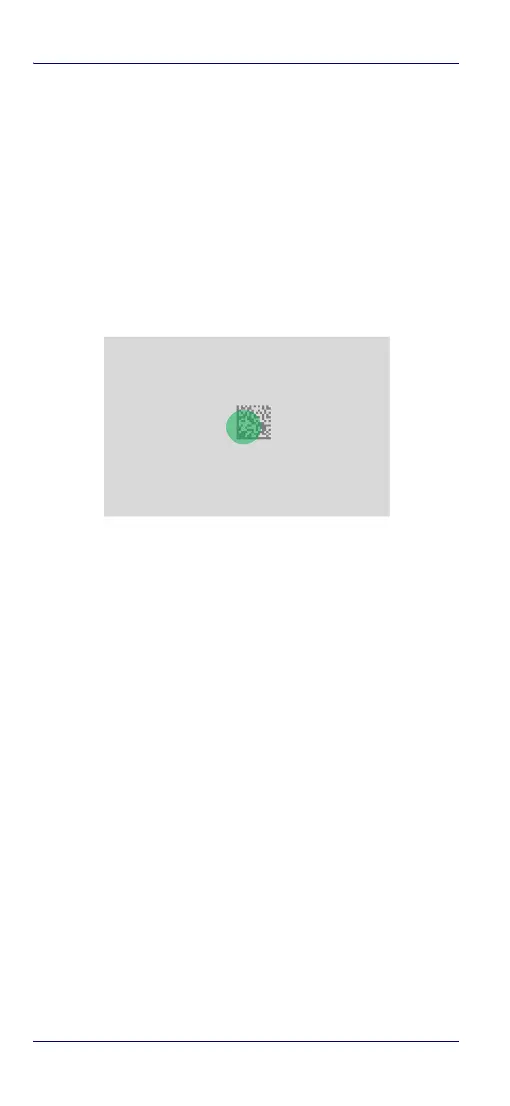

Relative Size and Location of Green Spot
Refer to the RIDA DBT64XX Product Reference Guide (PRG)
on the Datalogic website for more information about this
feature and other programmable settings.
