MAINTENANCE
4

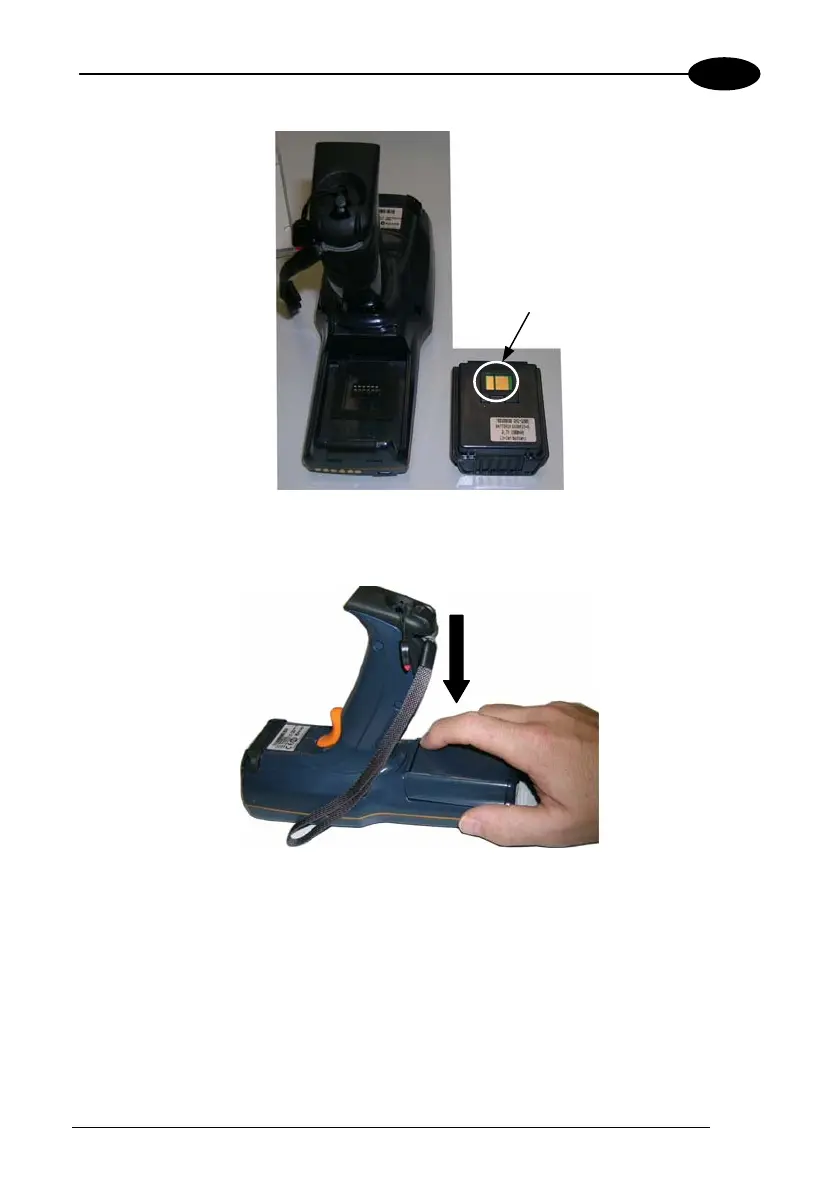

Battery Contacts
3. To correctly insert the new battery pack, first insert the bottom and then the
upper part of the battery pack into the slot as indicated in the following figure:
4. Press it until the battery latch is automatically closed.
81
