CONNECTIONS
2
A
B
C
D

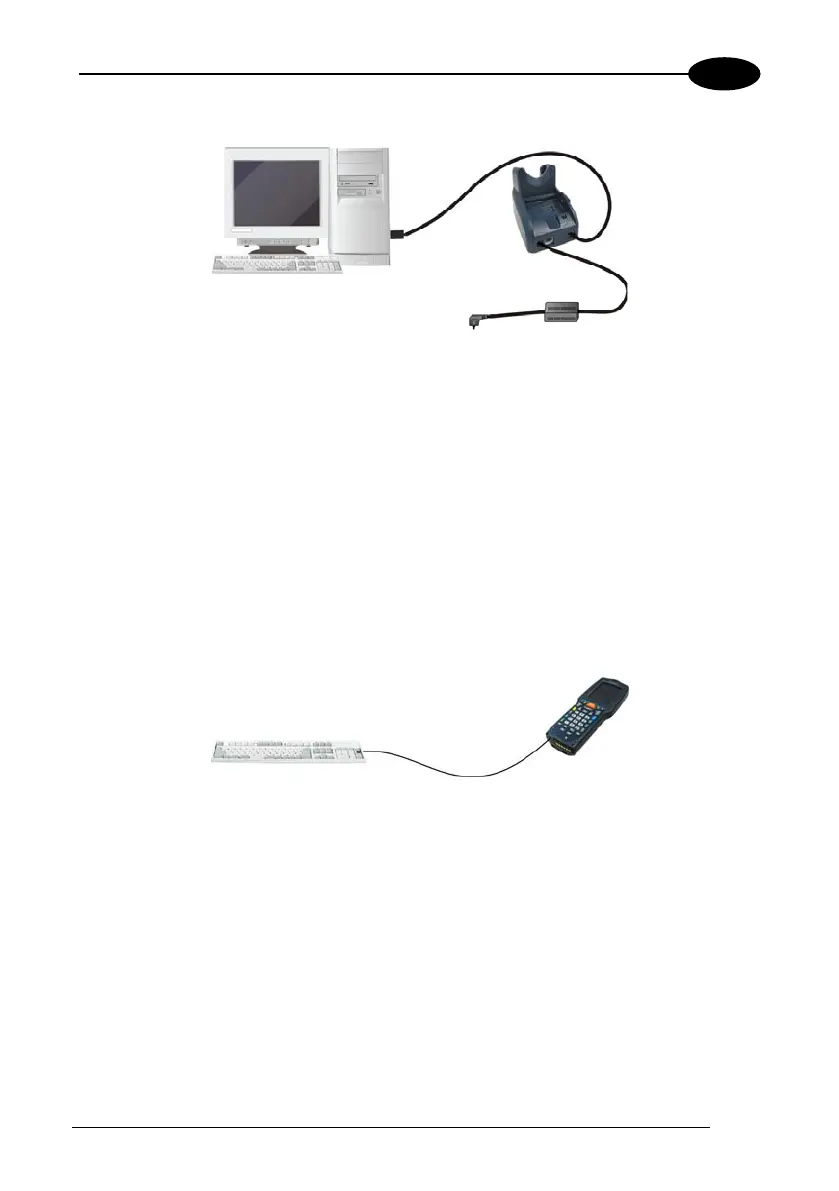

Key:
A Host computer C Datalogic Skorpio™ Single Cradle Desk/
Datalogic Skorpio™ SIngle Cradle
Ethernet
B 94A051017 CAB-381 USB
type A-B Straight Cable
D Power Supply*
* Recommended Power Supply: FPS18 AC/DC Power Supply (94ACC4595).
2.2 CONNECTION TO USB PERIPHERALS
You can use a standard A (4 pin female) to mini A (5 pin male) USB cable to connect
the Datalogic Skorpio™ to a keyboard or a memory. For all these devices maximum
current withdrawal must be below 100mA.
A
B
C
Key:
A Keyboard with USB interface C 94A051024 (Standard A to Mini A USB
cable)
B Datalogic Skorpio™
13
