MAINTENANCE
4
4.2 REPLACING THE BATTERY PACK
4.2.1 Datalogic Skorpio™ Models
To correctly replace the battery pack, proceed as follows.
1. Turn off the Datalogic Skorpio™.

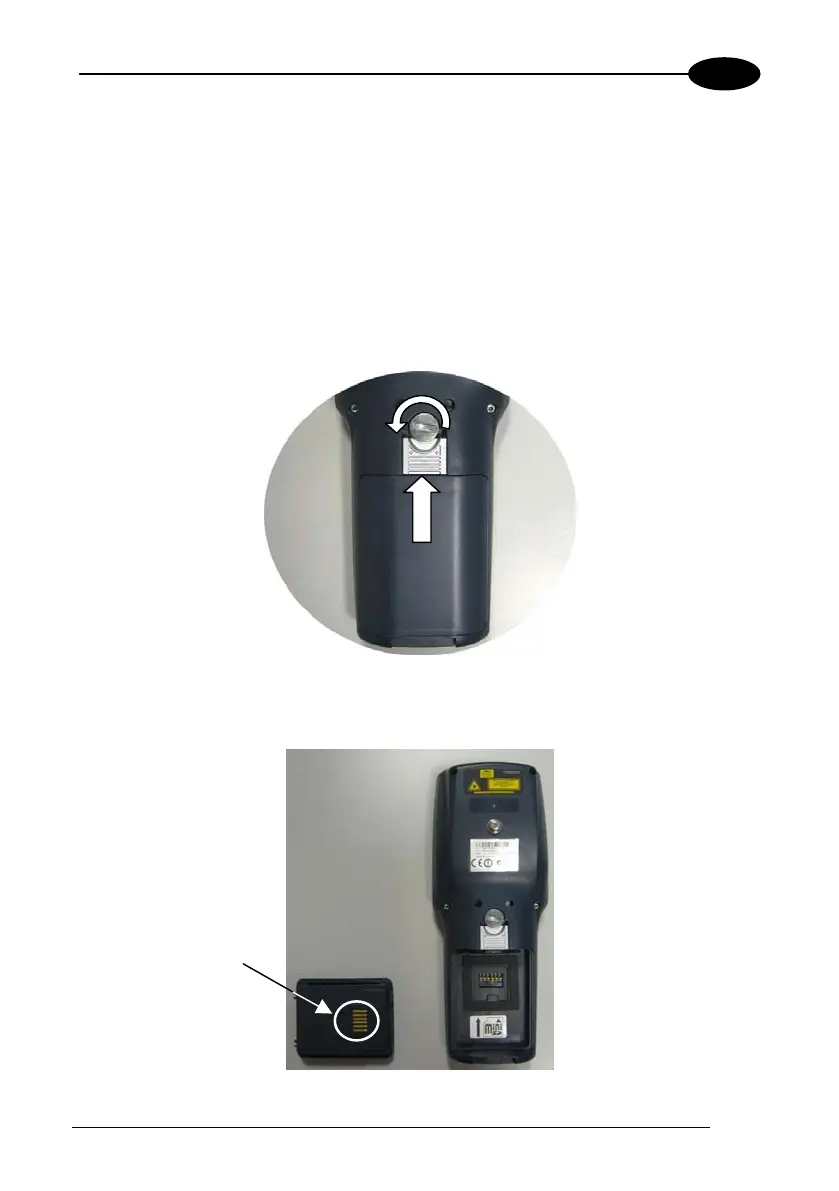

2. Turn the battery lock screw to the open position (horizontal), then pull the lock
runner up, as indicated in the figure below.
3. Remove the battery pack.
Battery Contacts
79
