DATALOGIC SKORPIO™/ SKORPIO-GUN™
4

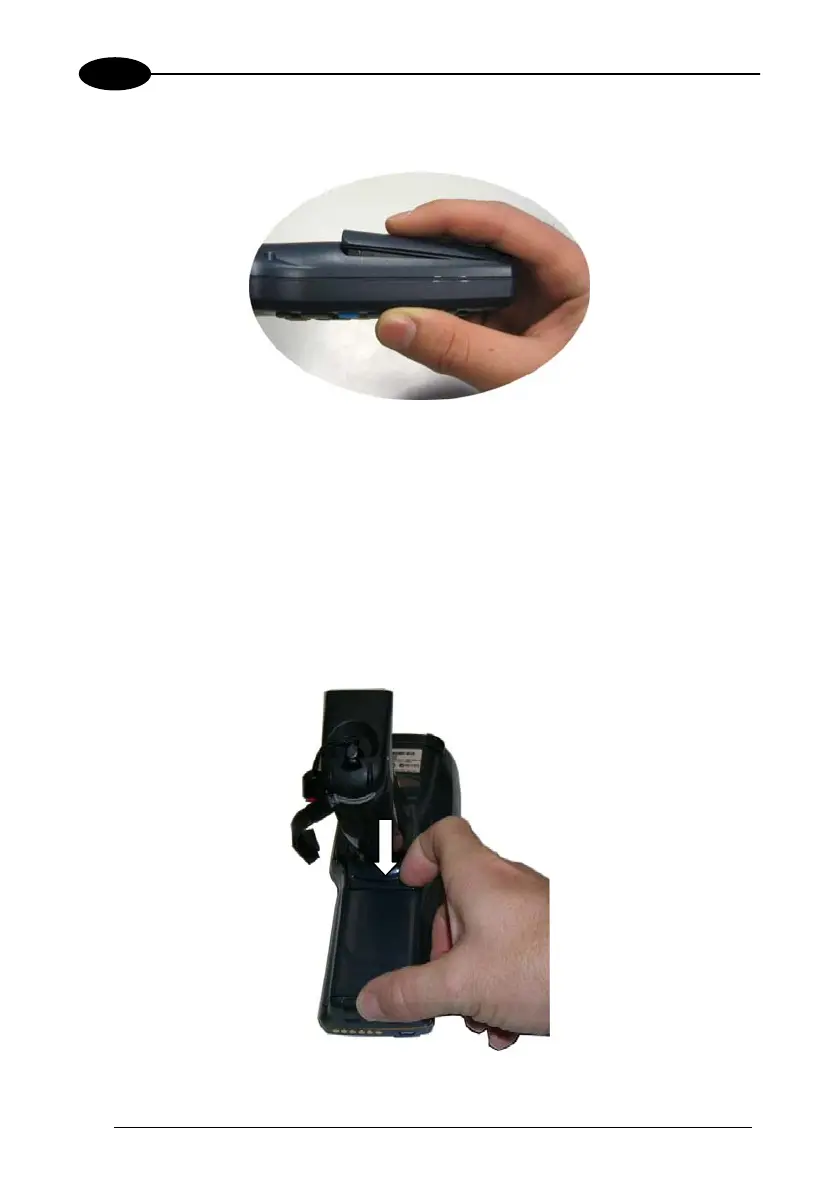

4. To correctly insert the new battery pack, first insert the bottom and then the
upper part of the battery pack into the slot as indicated in the following figure:
5. Press it until the battery latch is automatically closed.
4.2.2 Datalogic Skorpio-GUN™ Models
To correctly replace the battery pack, proceed as follows.
1. Turn off the Datalogic Skorpio-GUN™.
2. Remove the battery pack, by pulling the battery latch down.
