RAPID CONFIGURATION
19 SMART-VS PLUS
I/O SETTINGS

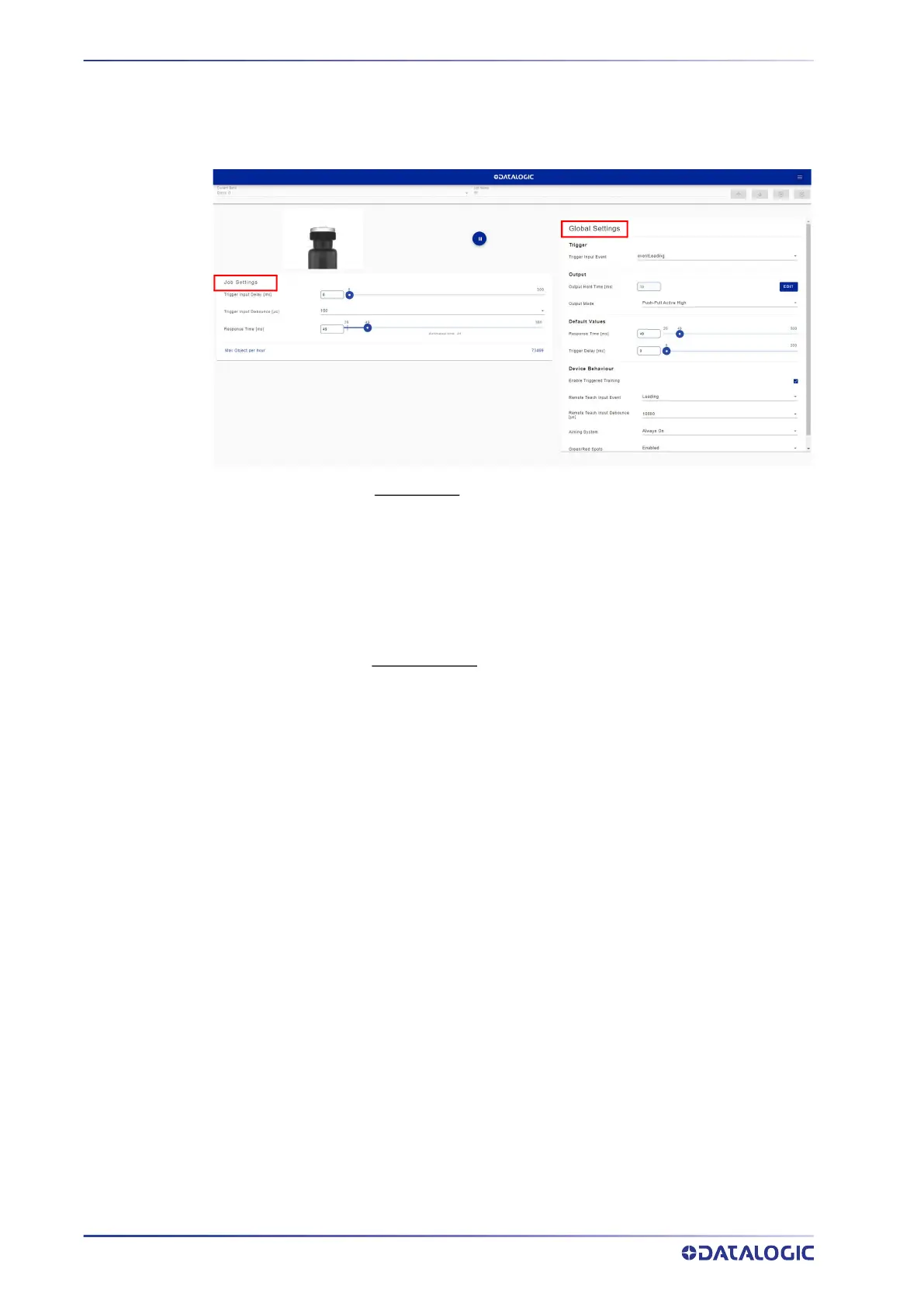

This page contains Job Settings and Global Settings.
It can be reached using the hamburger icon on the upper right corner.
The parameters under Job Settings
are variable for each job, which means that any
change will only be valid for the current job:
• Trigger Input Delay: the delay to apply prior to the acquisition process of the trig-
ger event. It is measured in time (ms). This parameter can be adjusted along with
image acquisition: images are shown on the related window.
• Trigger Input Debounce: filter debounce time measured in μs.
• Response time: refer to "
Step 5: Response Time" on page 15.
The parameters under Global Settings
are common to all jobs, which means that any
change will be valid for all jobs:
• Enable triggered Training: allows to enable triggered training for configurations
made with the button.
• Trigger Input Event: can be either Leading or Trailing.
• Output Hold Time: the time (ms) during which the output data remains valid.
• Output Mode: available selections are NPN, PNP, Push-Pull active High, Push-Pull
active Low.
• Response Time: This is the default response time for new job. It is the one used for
the job created following the Button Teaching Procedure, it is displayed and can be
changed for the job created following the teaching though WebApp.
• Trigger Delay: This is the default trigger input delay for new job. It is the one used
for the job created following the Button Teaching Procedure, it is displayed and
can be changed for the job created following the teaching though WebApp.
• Remote Teach Input Event: available selections are Leading and Trailing.
• Remote Teach Input Debounce: filter debounce time measured in μs.
• Aiming System: available selections are Always ON, Always OFF, Calibration Only.
• Green/Red Spots: available selections are Calibration Only, Enabled, Disabled.
