Peel Assembly
Latch Roller
Slot

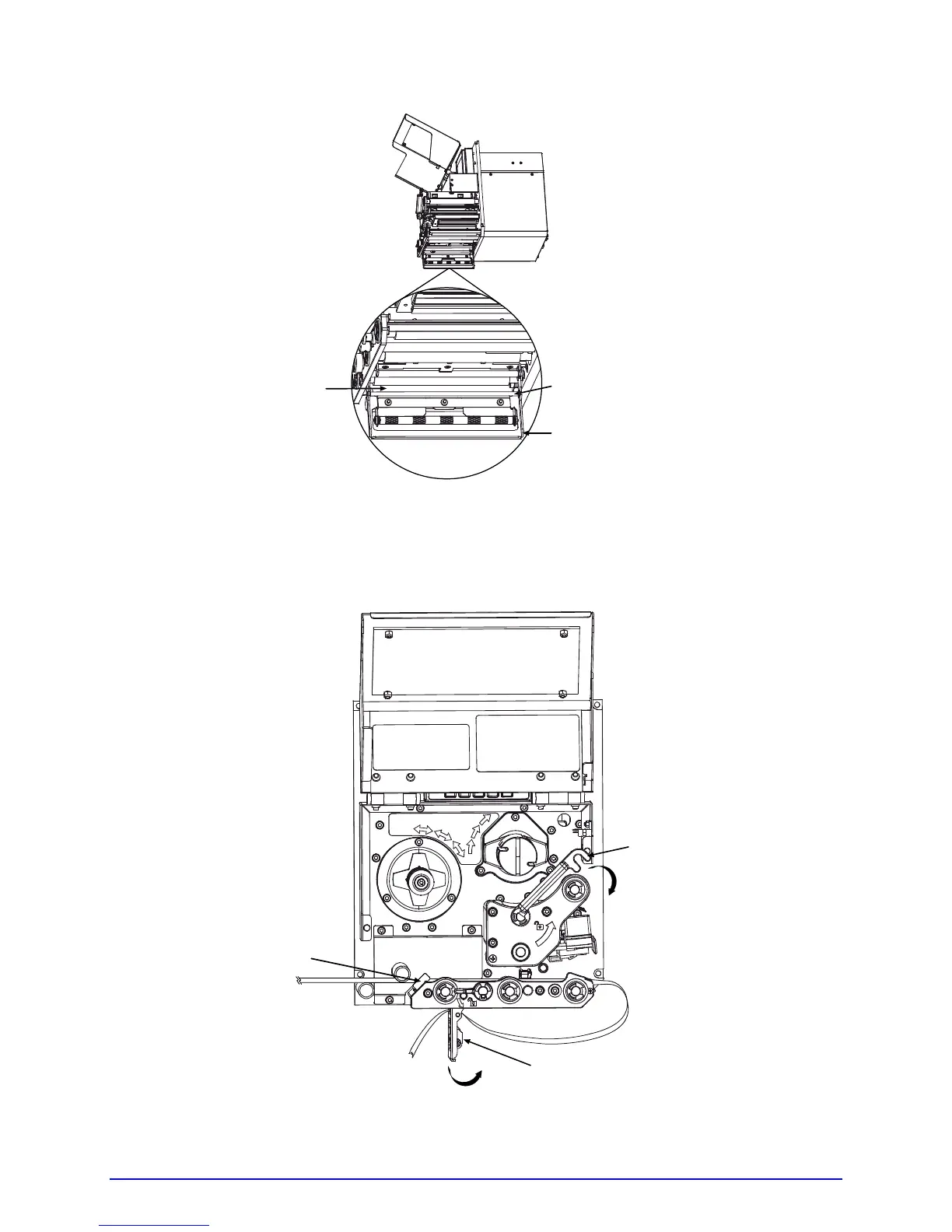

5. Pull the Media Liner through the Slot in the Peel Assembly until all slack is removed.
Lifting from the center, raise the Peel Assembly until it locks into place.
Head Lift Lever
Peel Assembly
Media Guide
