3.3 Loading Ribbon
Load ribbon (for thermal transfer media) according to its coated side and the printer model.
;
Using a ribbon slightly wider than the media (and liner) is recommended for added protection against abrasive wear.
3.3.1 Right Hand Models
Load ribbon as follows:

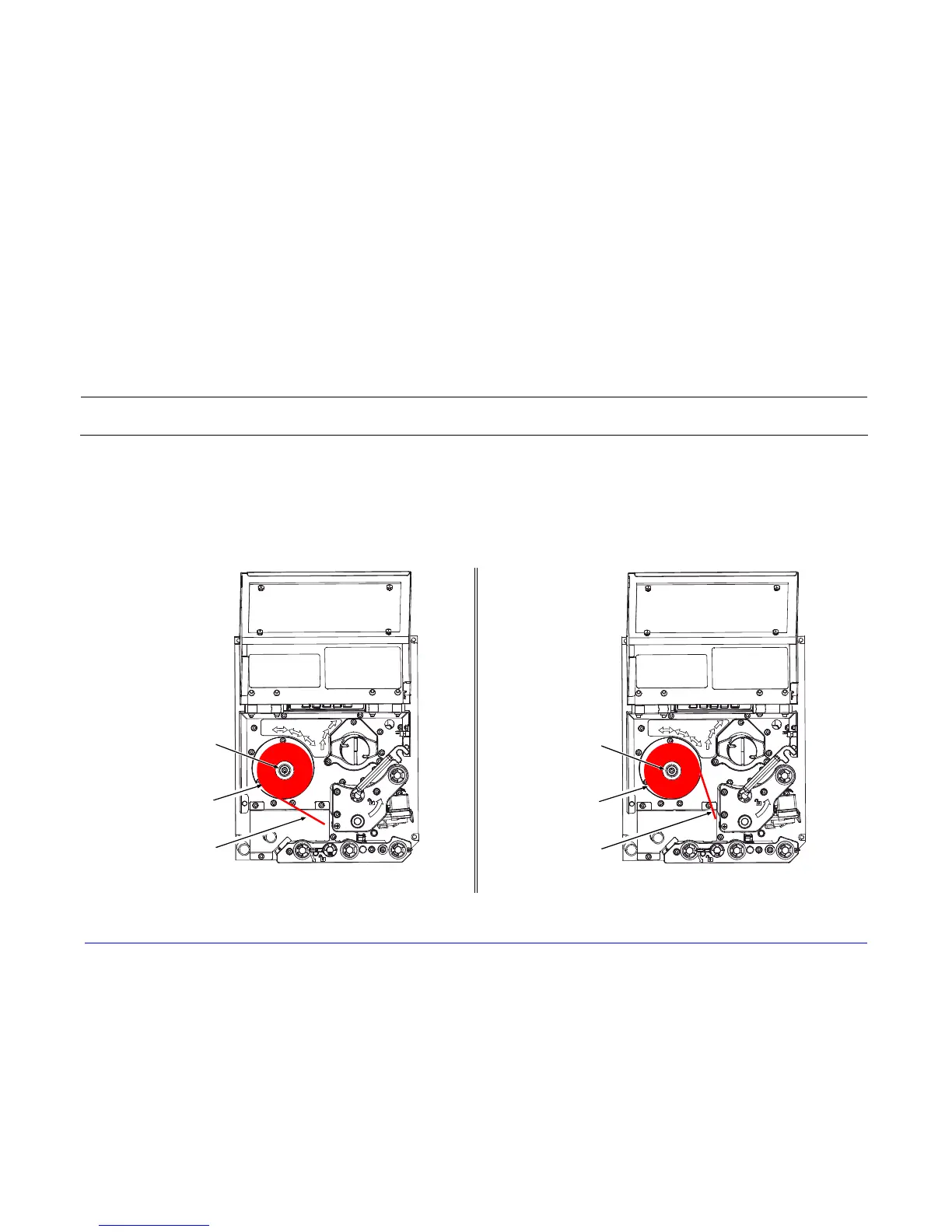

1. Orient the unwind position of the Ribbon according to the coated side (CSI or CSO) and then slide the Ribbon Roll
completely onto the Ribbon Supply Hub, as shown below:
CSO Ribbon
Roll
Ribbon
Ribbon
Supply Hub
Ribbon
Ribbon
Supply Hub
CSI Ribbon
Roll
CSO Ribbon CSI Ribbon
