12 Chapter 2 – Printer Setup

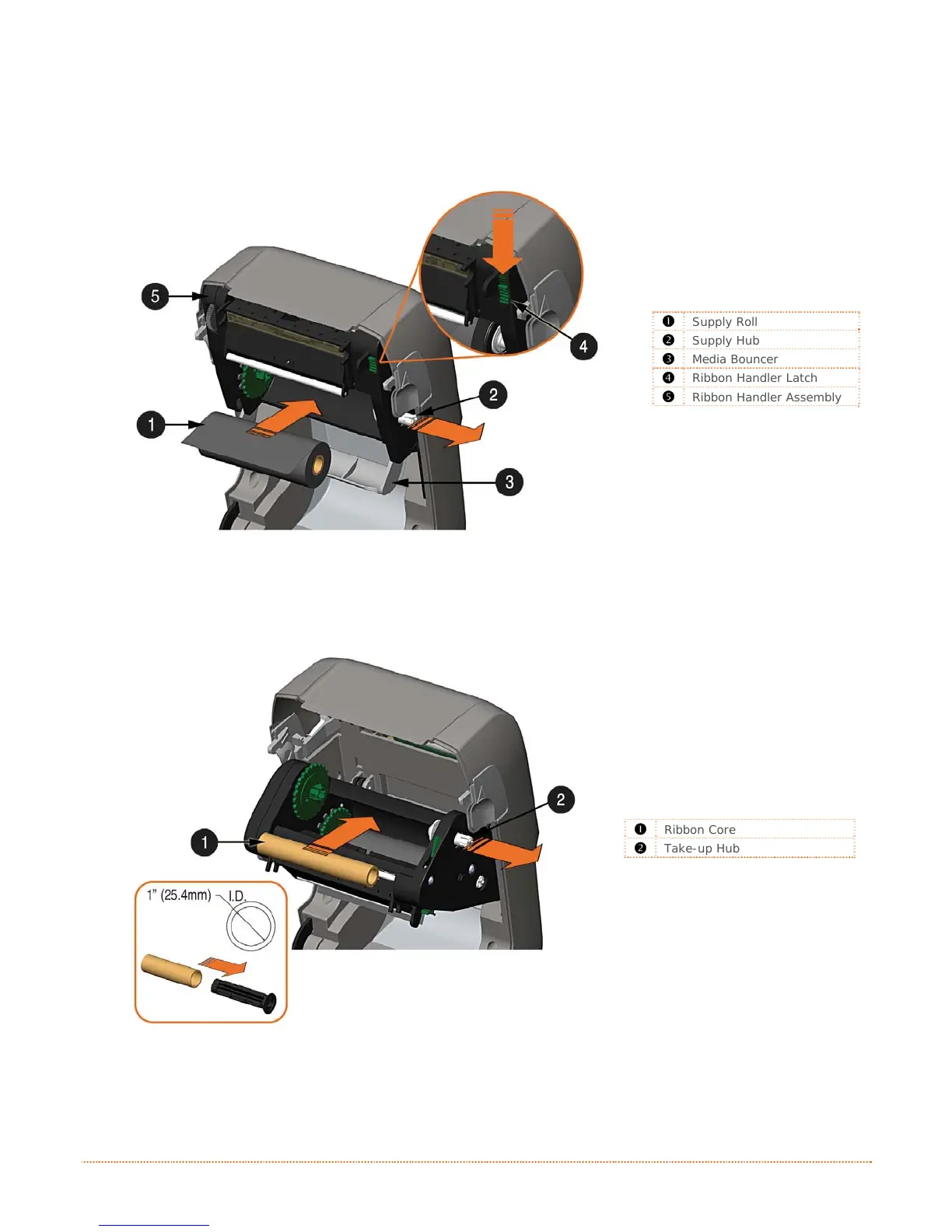

2) Push out the Supply Hub and load the Supply Roll into the printer as shown. Depending on the
size of the Supply Roll, the Media Bouncer may need to be pushed out of the way.
3) Once the Supply Roll is loaded, slide the Ribbon Handler Latch downward to unlatch the Ribbon
Handler Assembly.
312

Supply Roll

Supply Hub

Media Bouncer

Ribbon Handler Latch

Ribbon Handler Assembly
4) Push out the Take-up Hub and load an empty Ribbon Core into the printer as shown.
312

Ribbon Core

Take-up Hub

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
