Datamax E-Class Mark II User Manual

Chapter 3 – Printer Operation 19

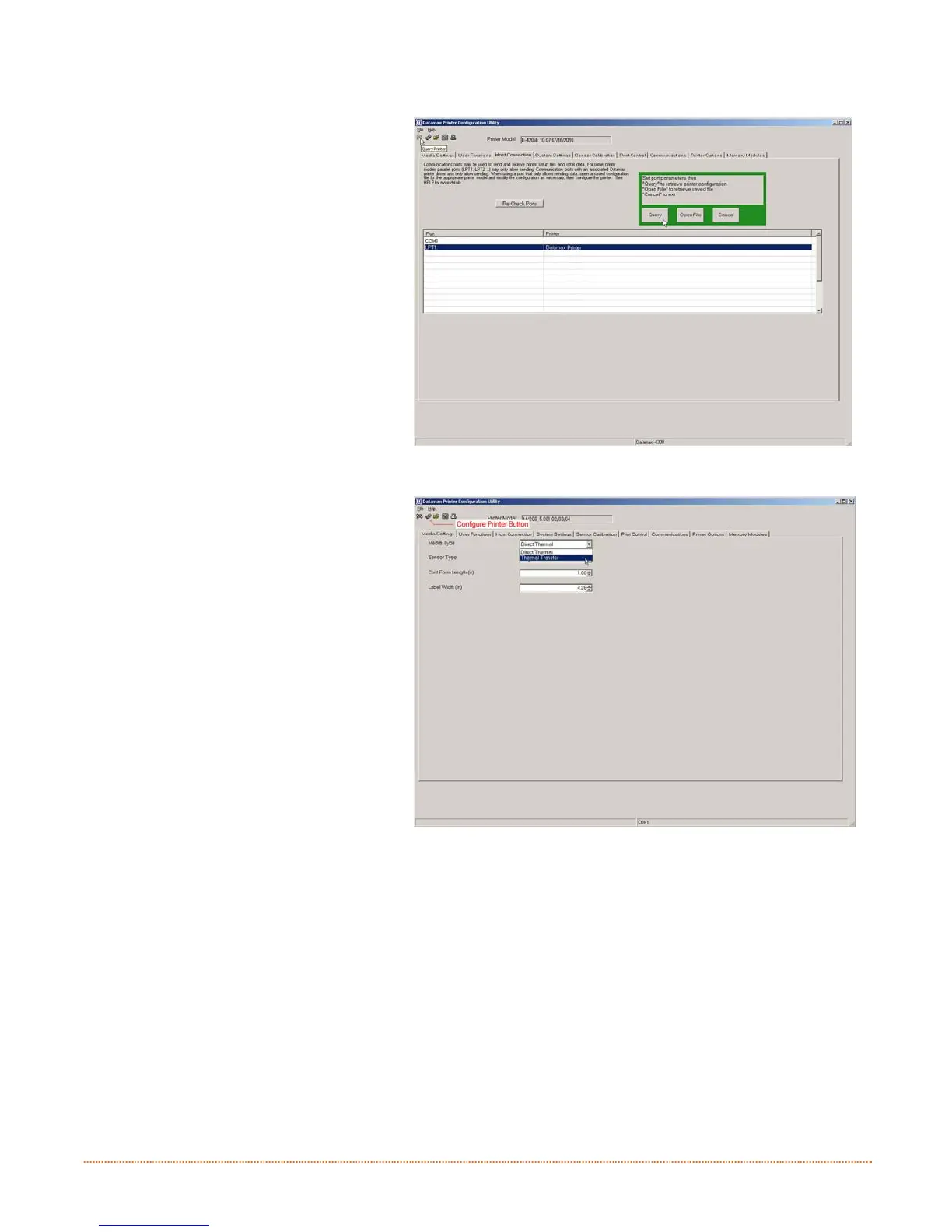

Once you have installed the DMXConfig utility:
1) Connect the host to the printer with a
serial, parallel, or (USB cable if driver is
installed).
2) Turn ON the printer and launch the
DMXConfig utility.
3) Click on the port or the printer you wish
to connect to from the list.
4) Query the printer by using the Query
Printer toolbar button (top-left) or the
large ‘Query’ button in the green box.
This will connect to the printer and get
the current printer settings.
5) At this point you may browse the tabs
and make any changes necessary to the
printer configuration. Once complete,
send the new settings to the printer
using the Configure Printer toolbar
button.
(The example below illustrates changing the
Media Type setting to Thermal Transfer.
Other parameters can be changed using this
procedure as well.)
6) Select the Media Settings tab then in
the Media Type drop-down box select
Thermal Transfer.
7) Send the settings to the printer using
the Configure Printer toolbar button.
The printer is now configured to use
thermal transfer media. You may close the
DMXConfig utility and begin printing using
ribbon.

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
