I-Class 15

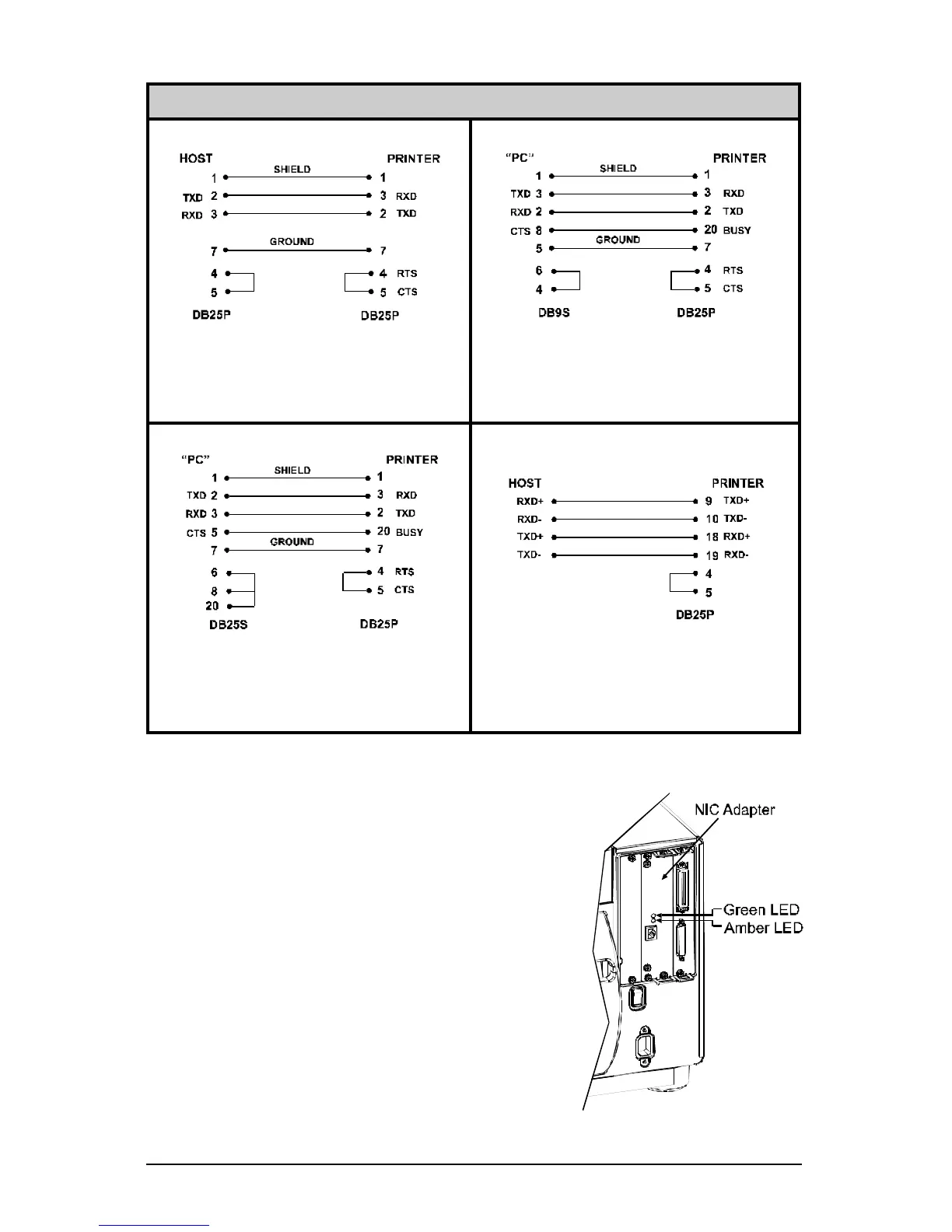

Serial Interface Cable Listing (all models, except as noted)
Null Modem (MXM) “PC” (DB9P) to Printer
Part Number 556000 Part Number 556001
For connection to other DCE equipment.
Flow control is only Xon/Xoff.
For connection to a PC compatible with
DB9P communication ports. Flow control
can be either Xon/Xoff or CTS/DTR.
“PC” (DB25P) to Printer RS-422 Connection
*
Part Number 556002 Part Number N/A
For connection to a PC compatible with
DB25 communication ports. Flow control
can be either Xon/Xoff or CTS/DTR.
Diagram only provided for reference.
*
Not available for the I-4206 and I-4208.
NIC Adapter (optional):
The NIC Adapter has several menu-selectable
modes; see Section 4.1.6 for details. Refer to the
information provided with the option for
connection requirements and detailed operational
instructions. The Status Indicators, viewable from
the back of the printer, provide a quick operational
check.
Normal Operating Conditions:
Green LED – indicates the operating
condition. Upon power-up, the LED is ‘On’
indicating that the NIC Adapter is performing
self-tests. The LED may also be ‘On’ when
awaiting a print job.
