24 I-Class
3.5 Outputting Labels
In addition to directly outputting labels from the printer, there are several
optional output configurations available.
3.5.1 Rewinding
With the Internal Media Rewinder option, the printer can wind the printed labels
and backing material. To rewind labels:
;
Note: When winding labels, do not allow the outer diameter of the roll to
exceed 6 inches (154 mm) on the Media Rewind Hub.

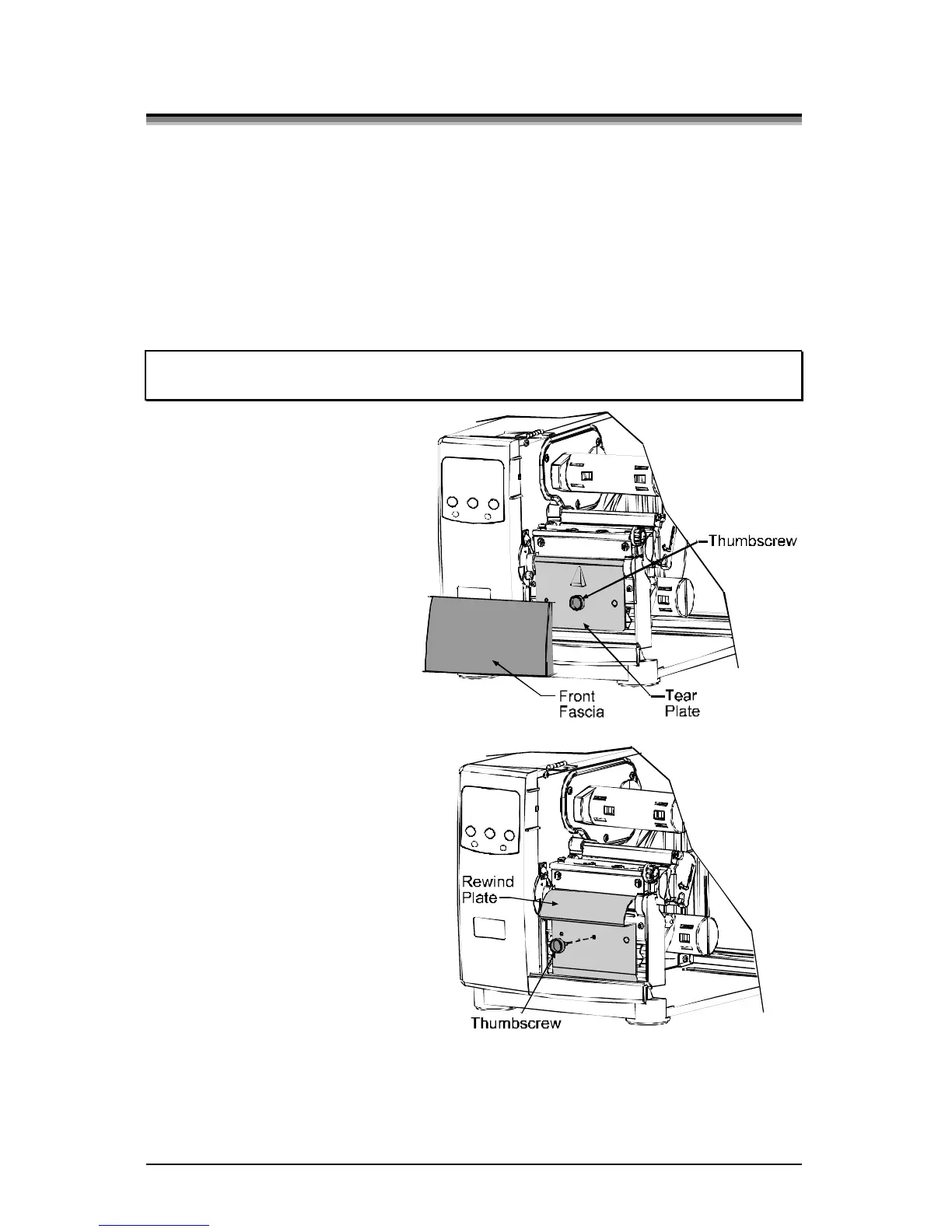

n Remove the Front Fascia.
o Remove the Tear Plate by
first removing the
Thumbscrew.
p Position the Rewind Plate
on the printer and install and
tighten the Thumbscrew.
q If installed, remove the
Rewind Retainer and Media
Clip from the Media
Rewind Hub (see drawing
next page).
r Load media as described in Section 3.1, press the FEED Key and advance
approximately 20 inches (51 cm) of media.
