18 I-Class
3.1.1 Roll Media

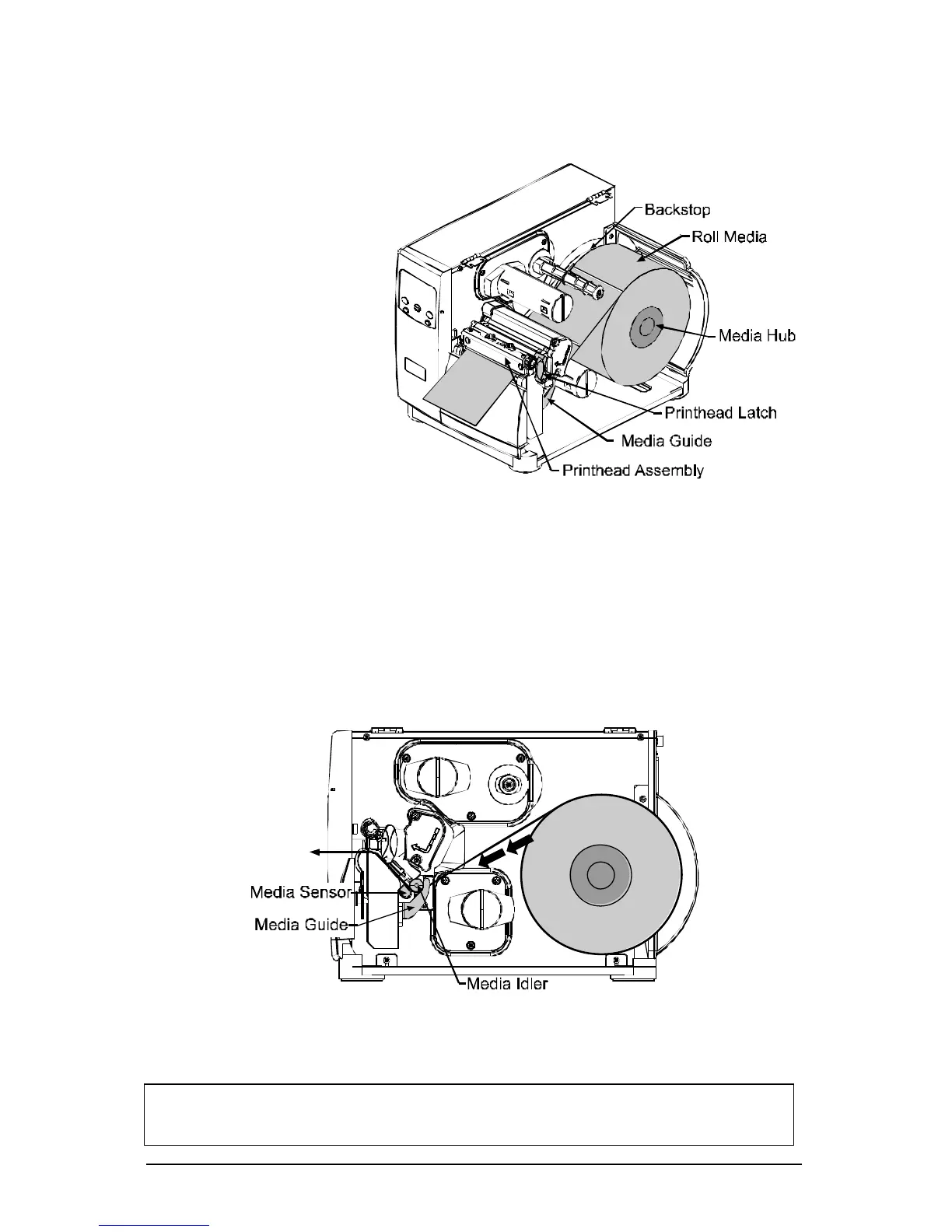

This loading method is for roll type media applications. To load:
n Slide the Roll Media
onto the Media Hub
until it rests against the
Backstop.
o Route the media as
shown: under the
Media Idler, through
the Media Sensor, then
out the front of the
printer.
p Raise and slide the
Media Guide over until
it rests lightly against the edge of the media.
q Position the Media Sensor; see Section 3.2.
r If your application uses thermal transfer media, load ribbon (see Section
3.3); otherwise continue.
s Lower the Printhead Assembly and rotate the Printhead Latch completely
back into the locked position. Close the Access Cover.
t Turn ‘On’ the printer. After ‘Ready is displayed, press and hold the FEED
Key until at least one label gap or mark is advanced; see Section 3.4.
To Next Page
