20 I-Class
3.2 Media Sensor Adjustment
The Media Sensor needs to be positioned so that the printer can detect the
presence of media and the top-of-form (except for continuous stock, where the
TOF is set through programming; see Label Length, Section 4.1.2). To adjust:

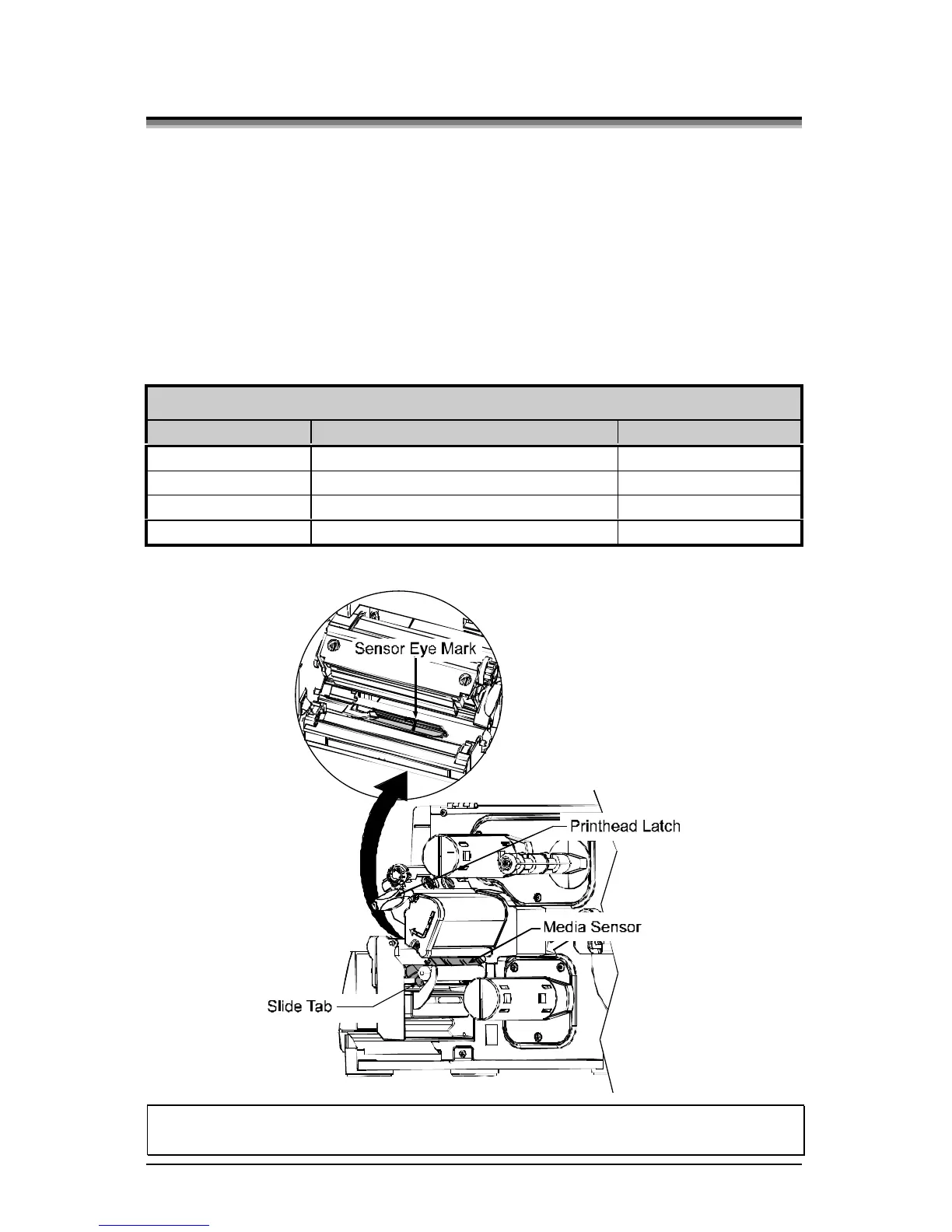

n With media loaded, as described in Section 3.1.1 or 3.1.2, grasp the Slide
Tab and move the Sensor Eye Mark into position over media according to
the table below.
o If loading media, return to the media loading instructions.
Me dia Se nsor Se lection and Adjust me nt
Me dia Type Sensor Eye Mark Position Sensing Required
*
Die-cut Near the middle of the label Gap
Notched Centered over the notch Gap
Reflective Centered over the black mark Reflective
Continuous Near the middle of the media Continuous
*
See Section 4.1.2 for Sensor Type selection.
;
Note: Changes to the start of print position can be made using the Print
Control/Row Adjust or Row Offset (see Section 4.1.3).
