3.1.2 Fan-Fold Media

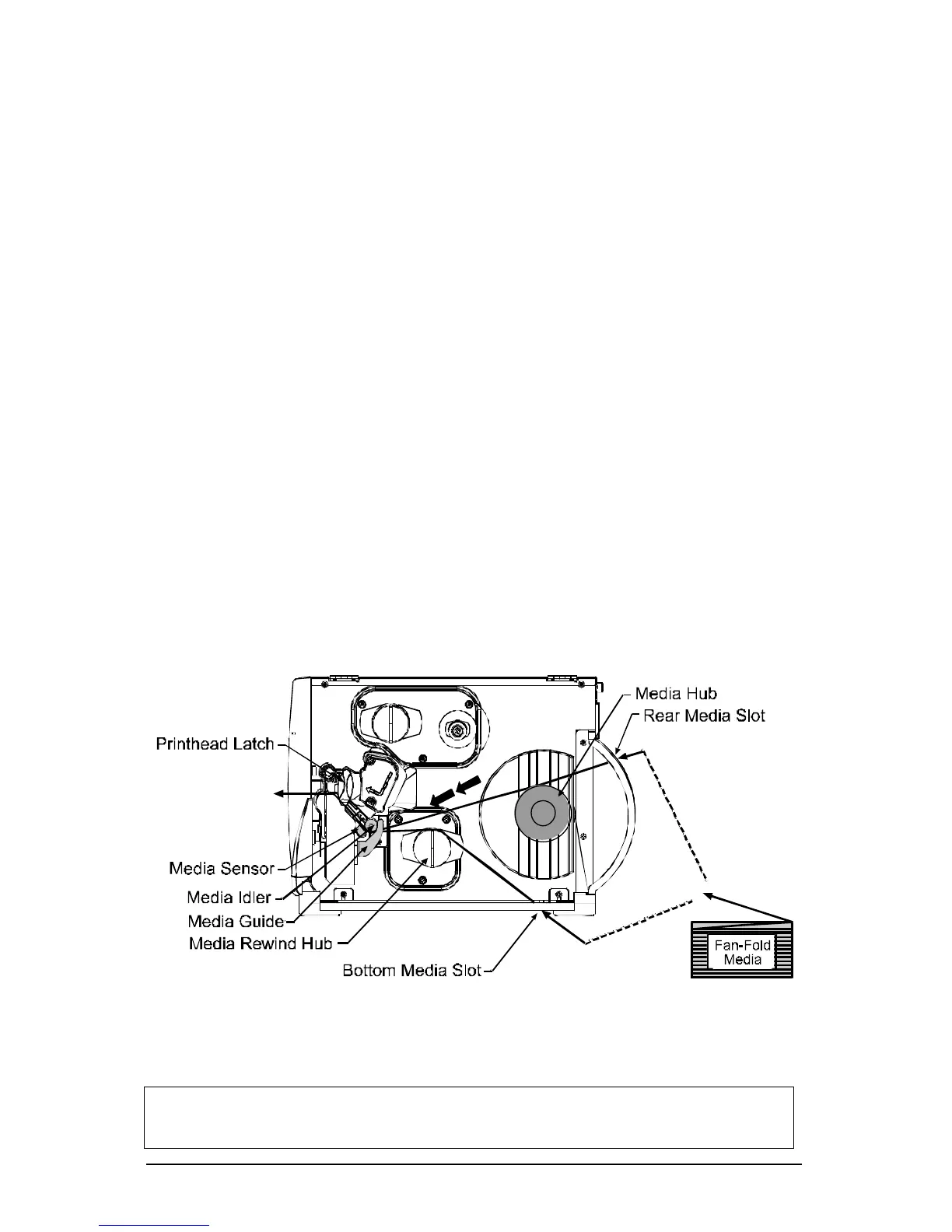

This loading method is for tag and fan-fold type media applications. To load:
n Bring the media in through the Bottom or the Rear Media Slot. (If using
reflective stock, ensure that the mark is facedown.)
o Depending upon the entry point, route the media as shown: if through the
Rear Media Slot, route the media over the Media Hub; or, if through the
Bottom Media Slot, route the media over the Media Rewind Hub.
p Continue routing the media under the Media Idler, through the Media
Sensor and out the front of the printer.
q Raise and slide the Media Guide over until it rests lightly against the edge
of the media.
r Position the Media Sensor; see Section 3.2.
s If your application uses thermal transfer media, load ribbon (see Section
3.3); otherwise continue.
t Lower the Printhead Assembly and rotate the Printhead Latch completely
back into the locked position. Close the Access Cover.
u Turn ‘On’ the printer. After ‘Ready is displayed, press and hold the FEED
Key until at least one label gap or mark is advanced; see Section 3.4.
To Next Page
