22 I-Class
; Note: Directional Arrows near the Ribbon Supply Hub indicate the correct
ribbon route. Ribbon types are available with the ink (coating) layer
wound ‘in’ or ‘out’. These types are NOT interchangeable for use with
the printer.

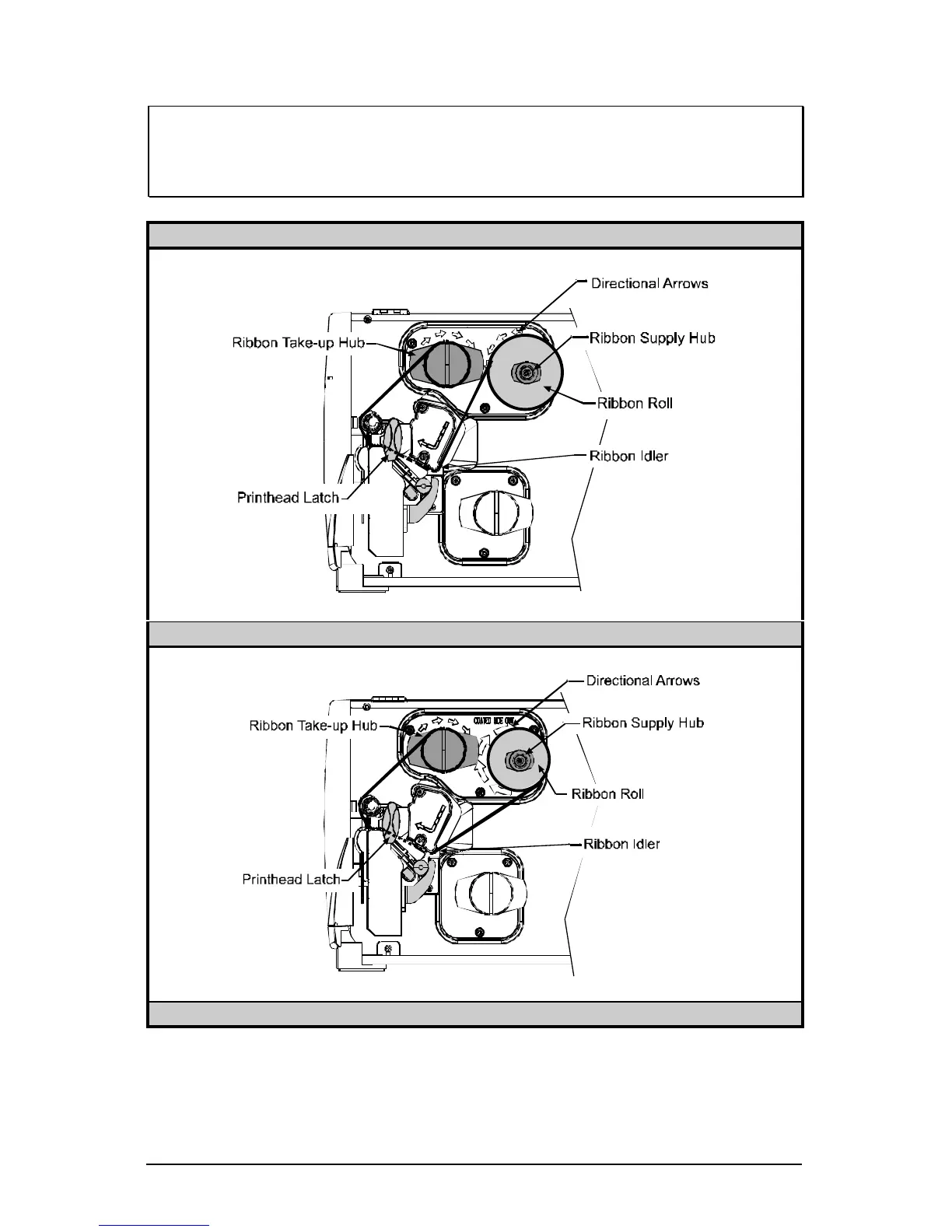

Ribbon Routing Diagrams
‘Coating Side In’ Ribbon Supply Hub
‘Coating Side Out’ Ribbon Supply Hub
