132 M-Class
11

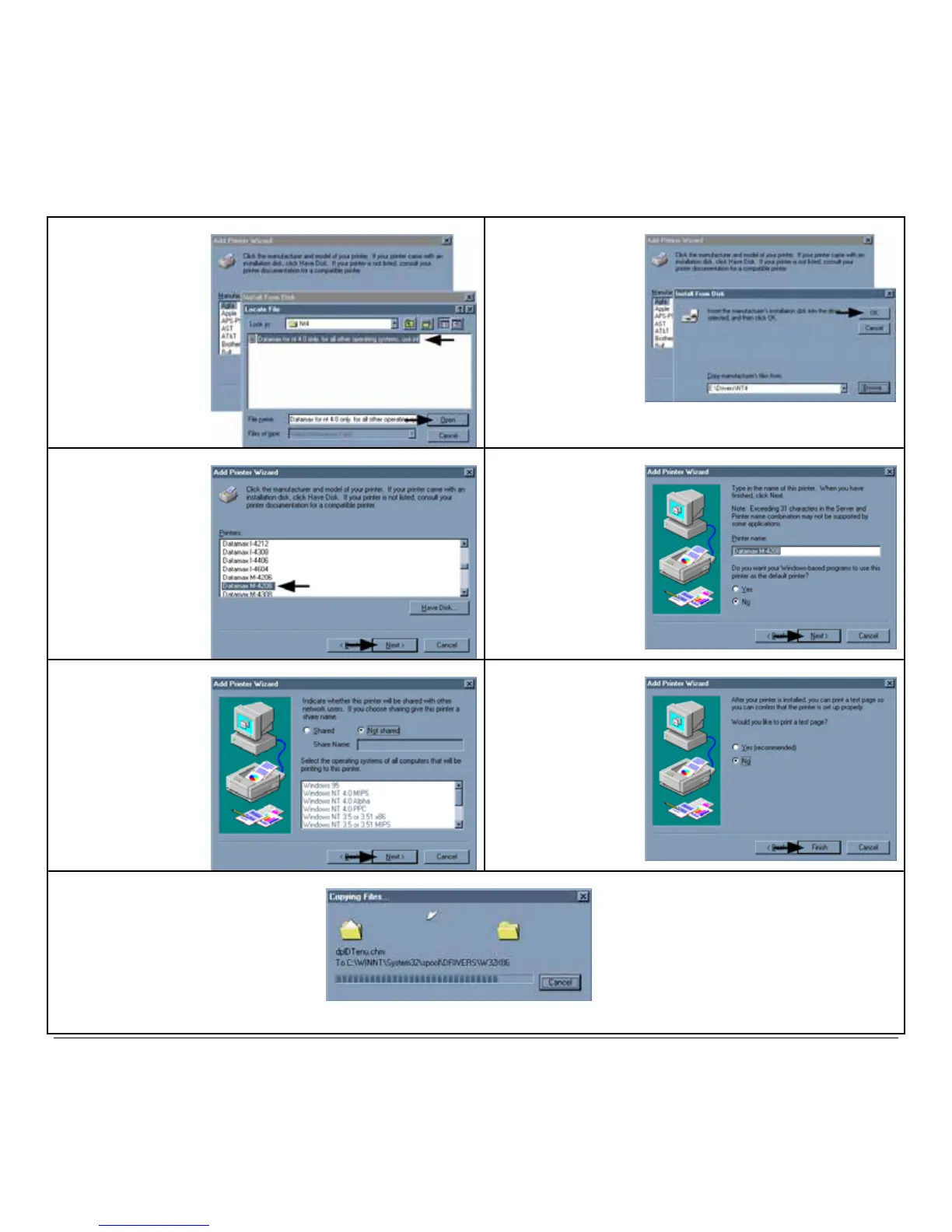

Browse to the
“Drivers\Nt4\” folder
on the CD-ROM, make
sure the file “Datamax
for nt 4.0 only” is
selected and click
‘Open’.
12
Click ‘OK’.
13
Select the ‘M-4208’
printer from the list and
then click ‘Next’.
14
Name your printer in
the ‘Printer name:’
field. Next select
whether or not to set
this printer as your
default printer. Then
Click ‘Next’.
15
Select whether or not to
share this printer on
your network. Then
Click ‘Next’.
16
Select ‘No’ then Click
‘Finish’.
17
Your computer will now copy the
necessary files from the CD-ROM.
The driver and port installation is
now complete. The printer can be
selected through any window’s
application.

Datamax M-Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	6 IPS (152 mm/s)
Interface	USB, Serial, Ethernet, Parallel
Media Sensor	Reflective and Transmissive
Supported Media Types	Labels, Tags
Media Thickness	0.0025" (0.0635 mm)
