Datamax M-Class User Manual

M-Class 37

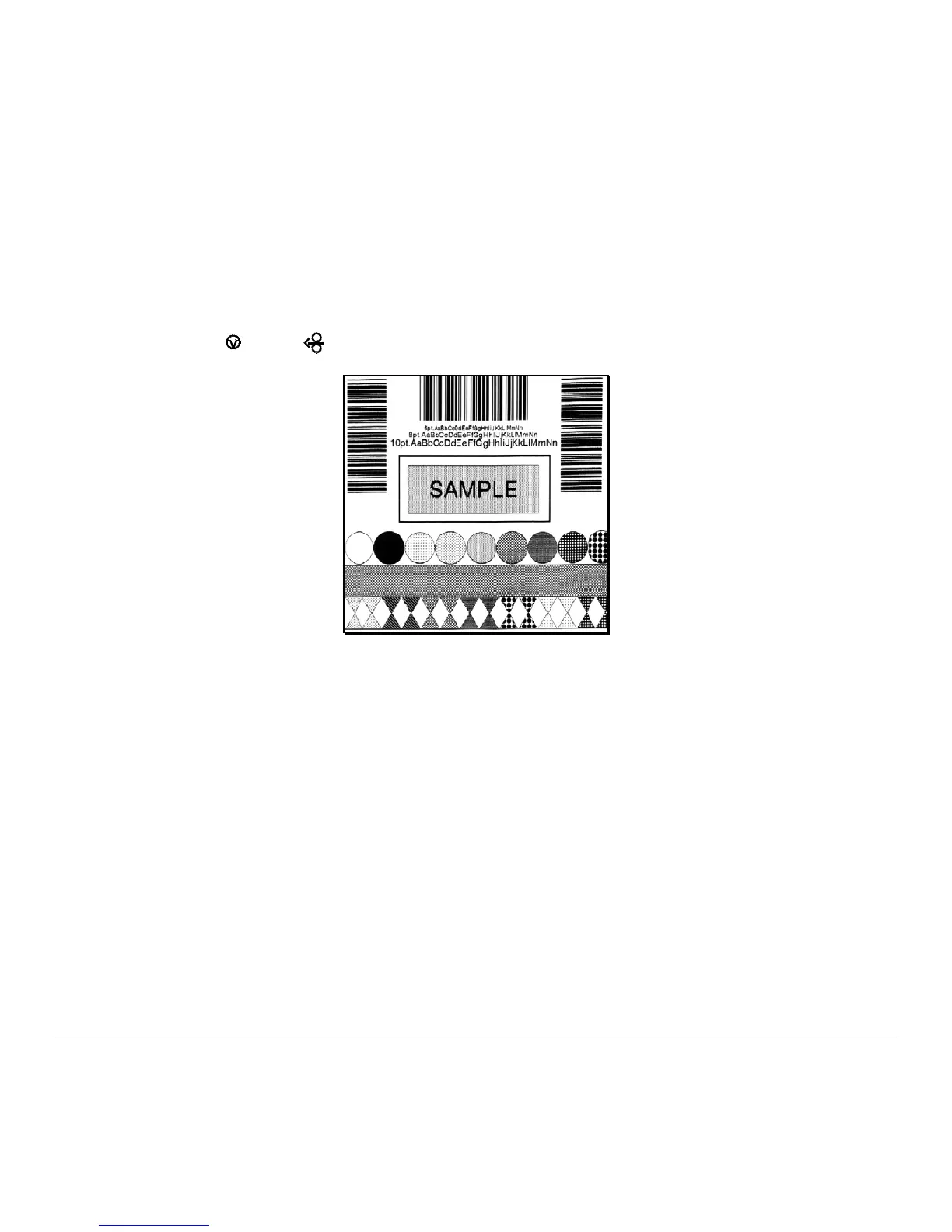

4.8.2 Test Label
The Test Label is used to evaluate the current printer setup for print quality, label tracking, and print positioning.
To print the Test Label:
With the printer loaded with media (at least 4 inches wide), and ribbon (if printing with thermal transfer media),
simultaneously press the
PAU SE
+
FEED
buttons.

Datamax M-Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	6 IPS (152 mm/s)
Interface	USB, Serial, Ethernet, Parallel
Media Sensor	Reflective and Transmissive
Supported Media Types	Labels, Tags
Media Thickness	0.0025" (0.0635 mm)
