12 M-Class
3.3 Media Sensor Adjustment
The Media Sensor needs to be positioned so that the printer can detect the presence of media and the top-of-form (except for
continuous stock, where the TOF is set through the front panel.
To adjust:

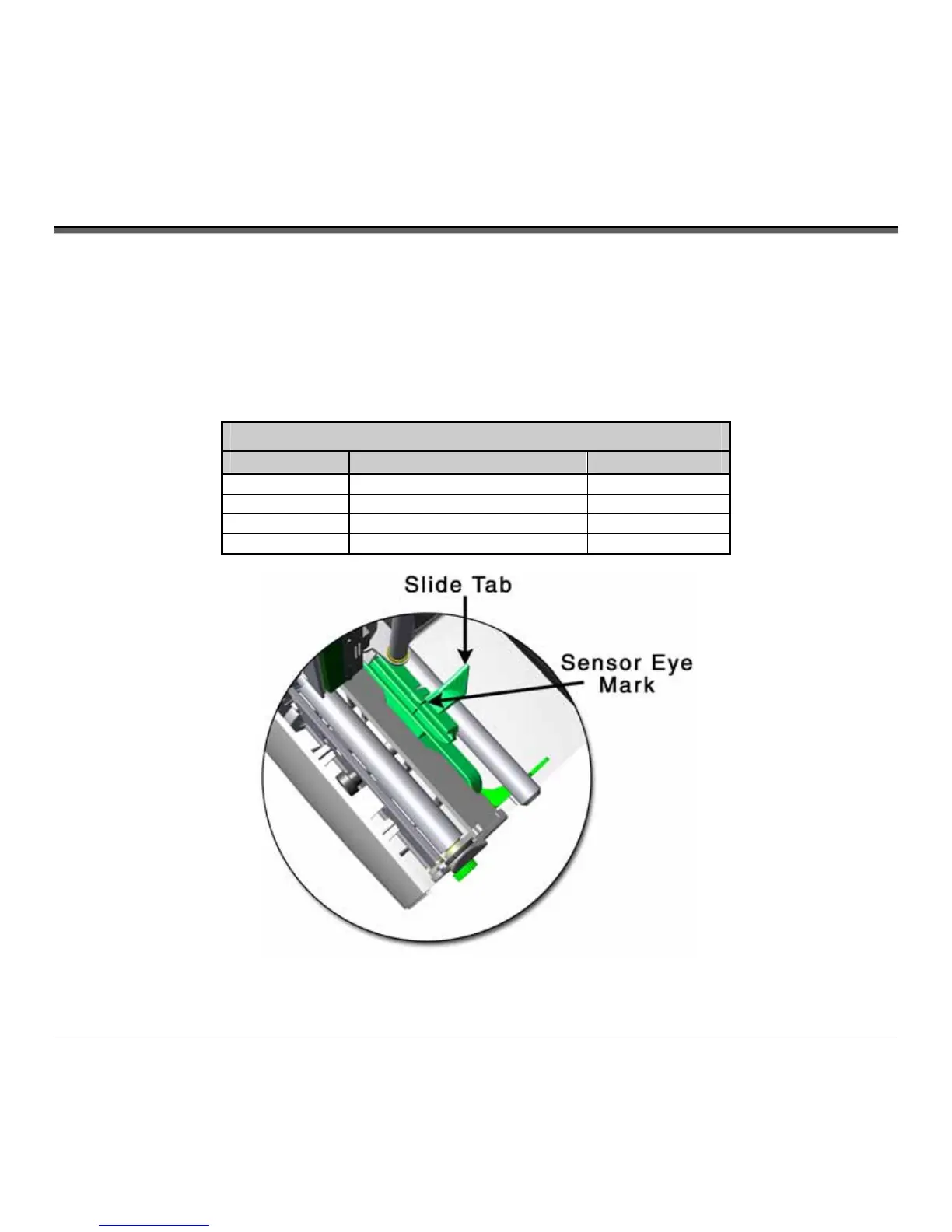

With media loaded, as described in Section 3.2, grasp the Slide Tab and move the Sensor Eye Mark into position over
media according to the table below.
If loading media, return to the media loading instructions.
Media Sensor Selection and Adjustment
Media Type
Sensor Eye Mark Position
Sensing Required
*
Die-cut Near the middle of the label Gap
Notched Centered over the notch Gap
Reflective Centered over the black mark Reflective
Continuous Near the middle of the media Continuous
