30
4
4
4
.
.
.
2
2
2
C
C
C
l
l
l
e
e
e
a
a
a
n
n
n
i
i
i
n
n
n
g
g
g
t
t
t
h
h
h
e
e
e
P
P
P
r
r
r
i
i
i
n
n
n
t
t
t
h
h
h
e
e
e
a
a
a
d
d
d
If print quality declines (symptoms include non-compliant bar codes, print dropouts, and streaks)
the typical cause is debris build-up on the printhead. Furthermore, when the build-up is not
removed it may lead to reduced service life or printhead failure. Streaks in printed labels usually
indicate a dirty or faulty printhead.
To clean the printhead (using Datamax-O’Neil cleaning card):
The following procedure is for “standard configuration” printers. Linerless printers should only be
cleaned with the Datamax-O’Neil Cleaning Pen #770172-000.

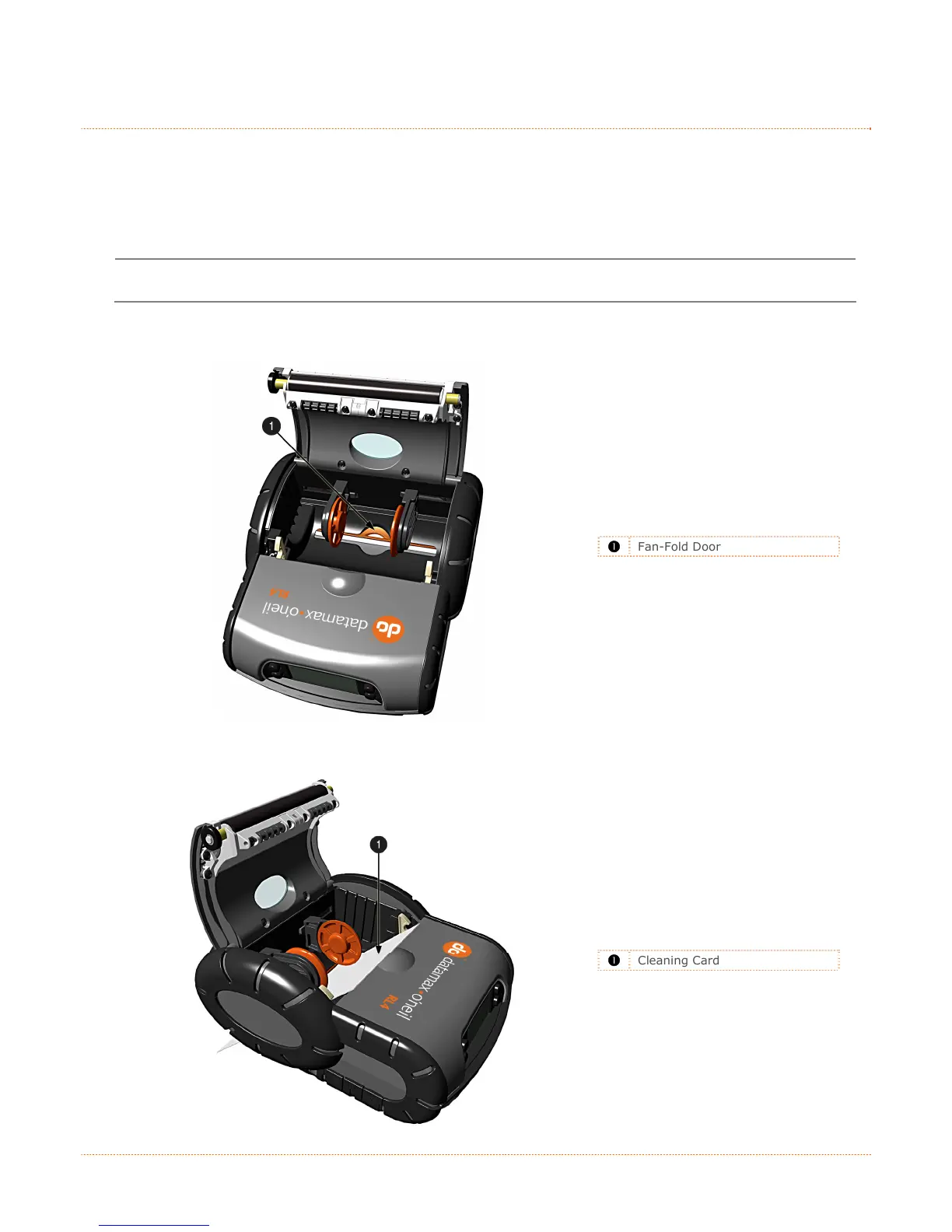

1) Open the printer Cover. Remove any media installed in the printer. Open the Fan-Fold Door
located in the bottom of the printer.
Fan-Fold Door
2) Remove the cleaning card from its package. Insert the cleaning card through the Fan-Fold slot and
into the printer as shown:
Cleaning Card
To Next Page
