Connections and Setup | 3
17 Workstation Series User’s Guide
Note: Be sure there are no labels attached to the backing that is routed behind the peel
and present sub-assembly.

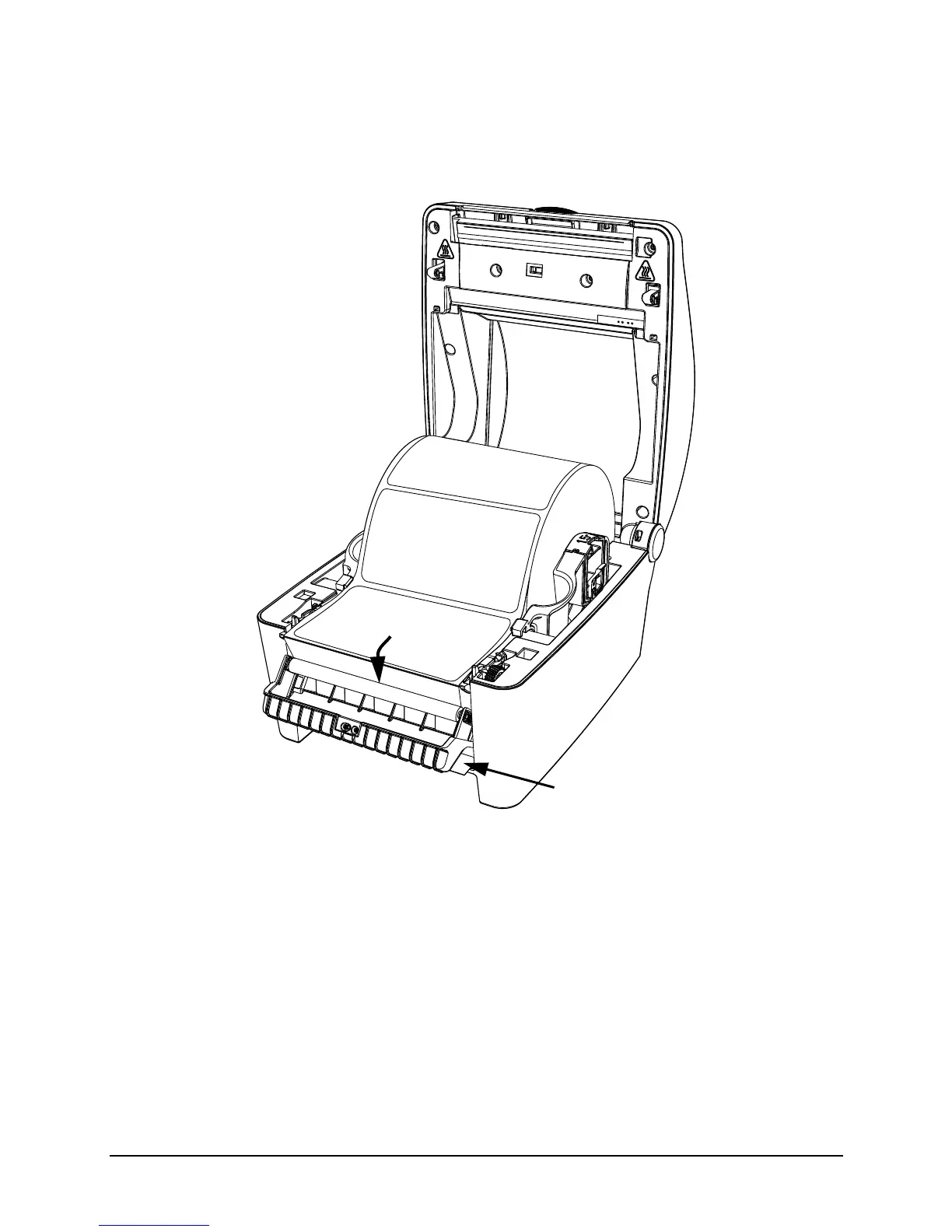

Figure: 3 - 5 Media Backing
4. Pull the label backing tight to ensure proper tension of the label backing.
5. Hold the backing tight and close the peel and present sensor assembly.
6. Close and latch the printer cover.
7. Feed the paper to find top-of-form.
Note: Peel and present mode is enabled through the configuration utility. If both peel
and present mode and prompt mode are enabled at the same time, only prompt mode
will be active.
