Passport 2®/Passport 2 LT™ Service Manual 0070-10-0441 6 - 5
Calibration Procedure Diagnostics

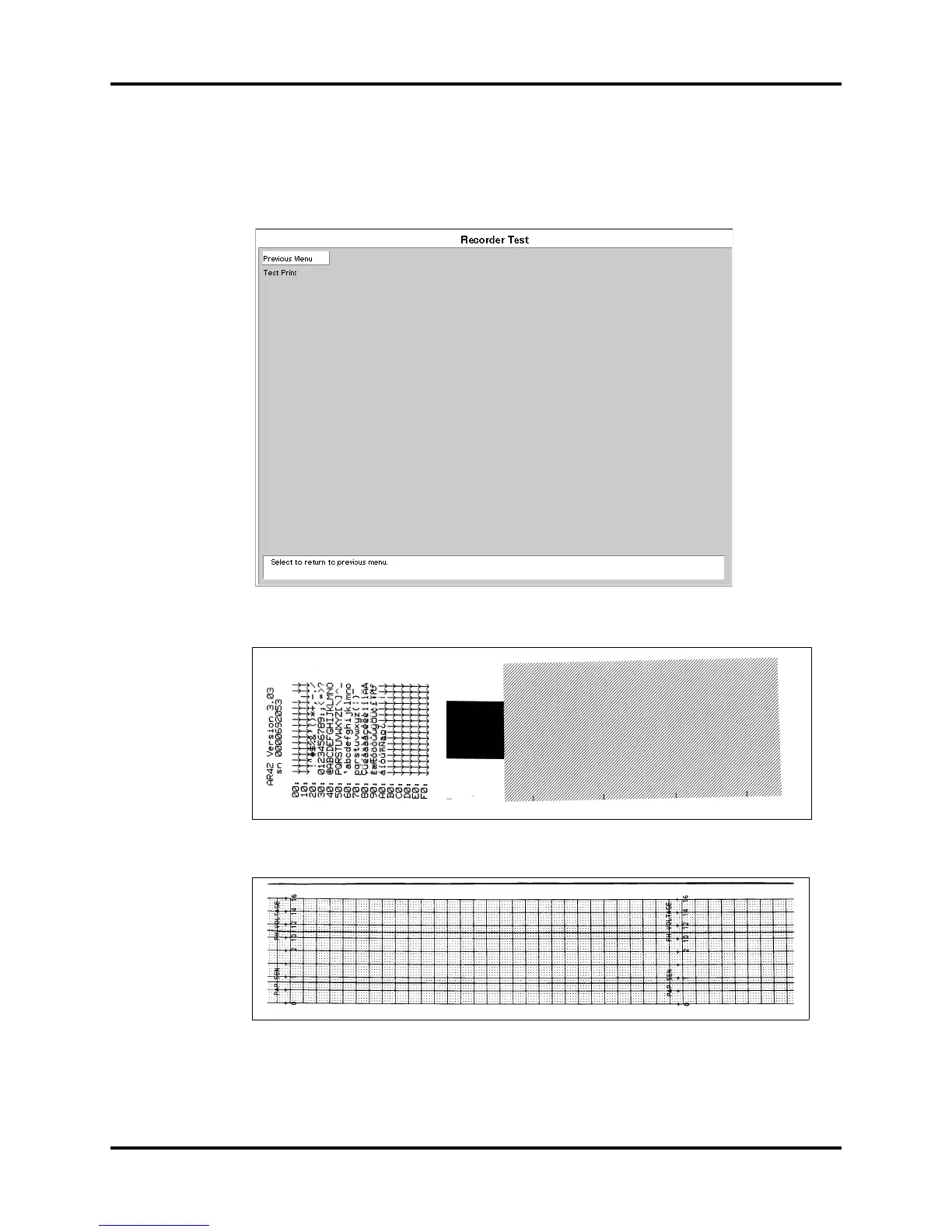

6.4.3 Recorder Test
Select the Chart Grid ASCII Characters menu. The printer will print the Recorder Test pattern
as shown in Figure 1 or Figure 2.
FIGURE 6-4
FIGURE 6-5 AR-42 Test Strip
FIGURE 6-6 XE-50 Test Strip
