Passport 2®/Passport 2 LT™ Service Manual 0070-10-0441 3 - 13
Repair Information Disassembly Instructions

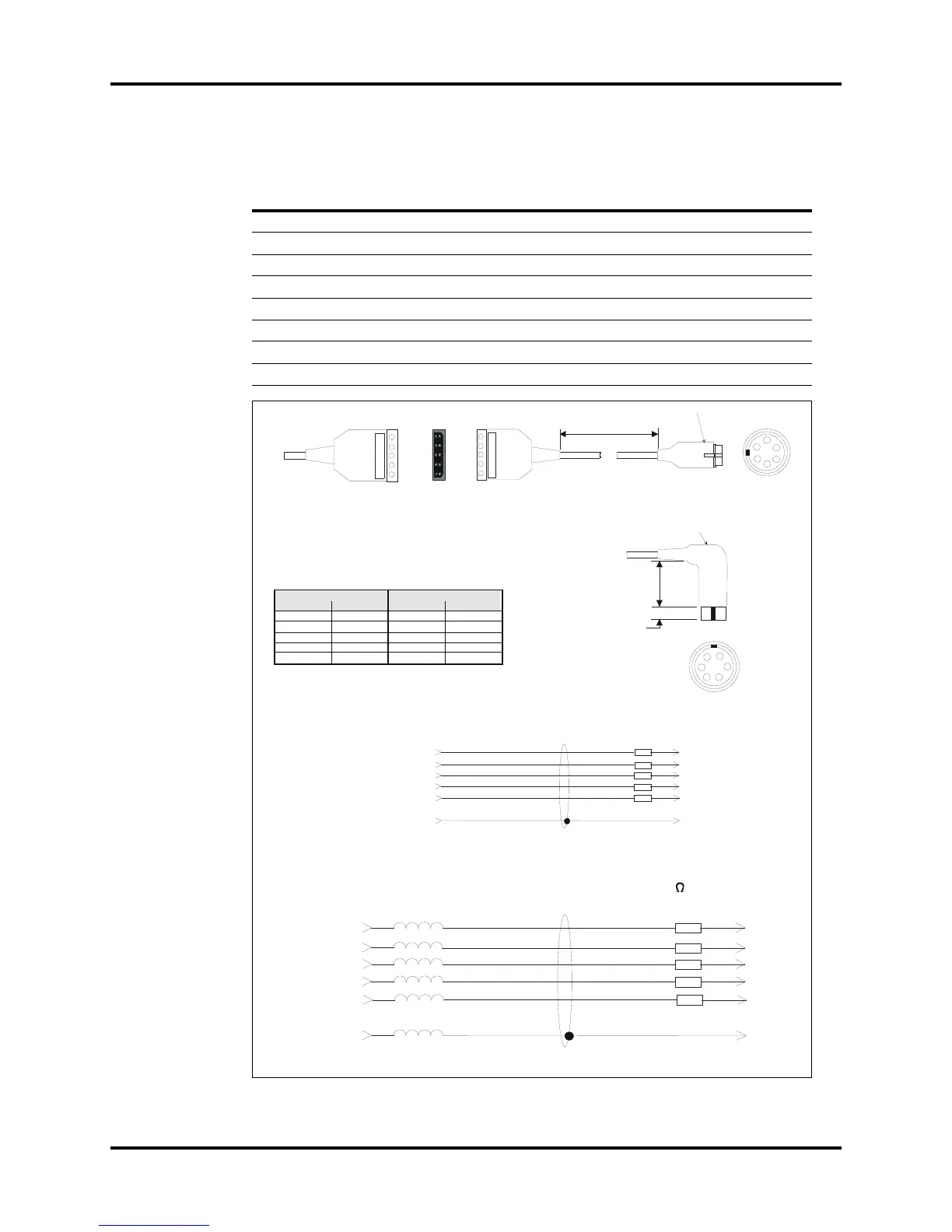

ECG Cable ESIS and Non ESIS
PART NUMBER LENGTH AND DESCRIPTION
0012-00-1255-01 10 feet Straight Non ESIS
0012-00-1255-02 20 feet Straight Non ESIS
0012-00-1255-03 10 feet Rt Angle Non ESIS
0012-00-1255-04 20 feet Rt Angle Non ESIS
0012-00-1255-05 10 feet Straight ESIS
0012-00-1255-06 20 feet Straight ESIS
0012-00-1255-07 10 feet Rt Angle ESIS
0012-00-1255-08 20 feet Rt Angle ESIS
4
1
3
2
5
6
V
RA
LL
LA
RL
SHIELD
brown
white
red
black
green
5 X 1k , 1W, 5%
Resistor in
Connector
RL LA LL RA V
CRFLN
brown
white
red
black
green
L' +/- 4"
1
2
3
4
5
6
Opposite Side
black
yellow
green
red
white
1
2
3
4
5
6
1.38"+/- .10"
.5"+/- .10"
USE LUDLOW CONNECTOR #95 RIGHT ANGLE FOR -03, -04, -07, -08
USE LUDLOW CONNECTOR #22 STRAIGHT FOR -01, -02, -05, -06
ANSI/AAMI EC53-1995 STANDARD IEC CONVENTIONAL STANDARD
LEAD COLOR LEAD COLOR
V Brown Chest (C) White
Right Arm (RA) White Right Arm (R) Red
Left Leg (LL) Red Left Leg (F) Green
Left Arm (LA) Black Left Arm (L) Yellow
Right Leg (RL) Green Right Leg (N) Black
Non ESIS
5 X 1k , 1W, 5%
Resistor in
Connector
4
1
3
2
5
6
V
RA
LL
LA
RL
SHIELD
brown
white
red
black
green
6 X 100mH Choke
in Yoke
ESIS
