3 - 16 0070-10-0441 Passport 2®/Passport 2 LT™ Service Manual

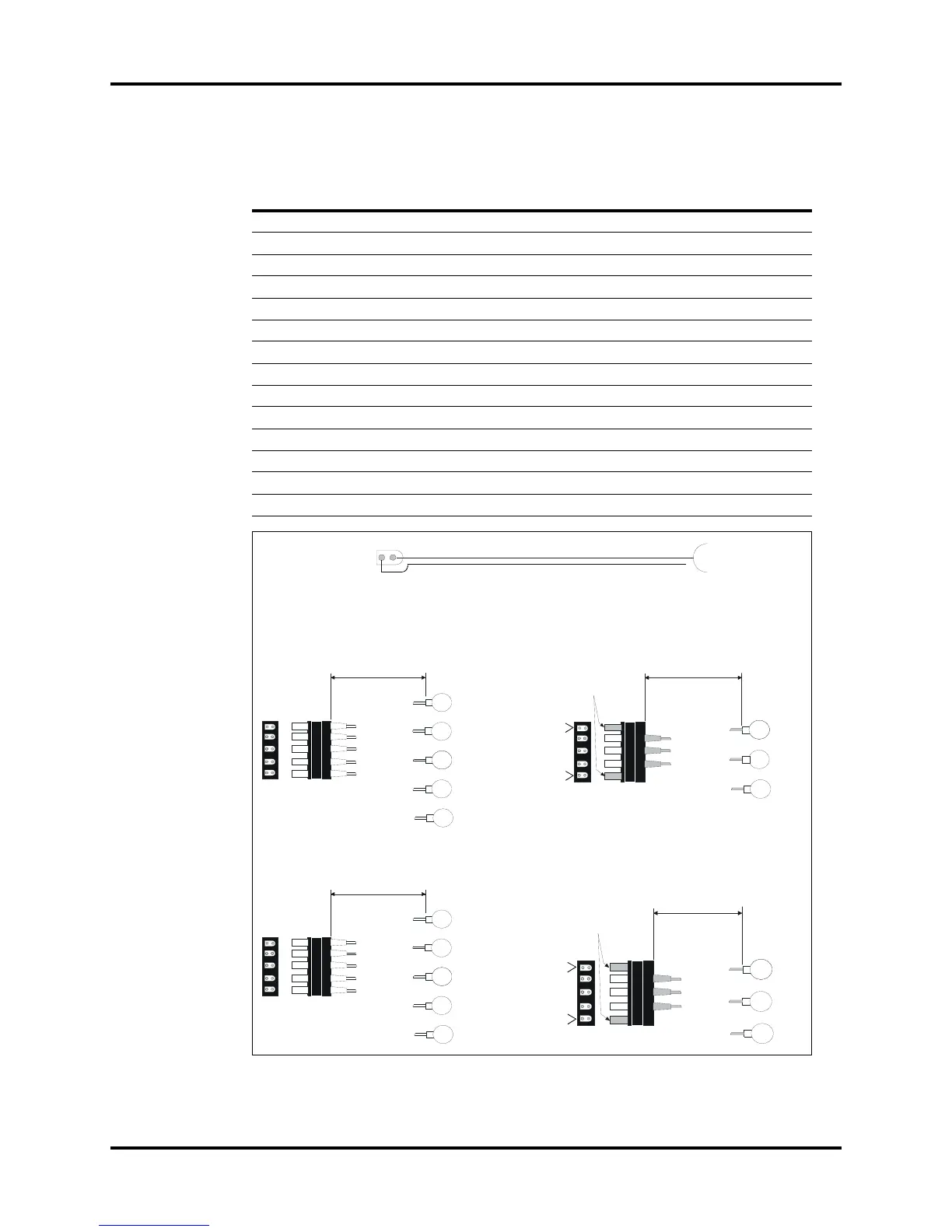

ECG Shielded Lead Wires
PART NUMBER LENGTH AND DESCRIPTION
0012-00-1261-01 18” snap lead set USA
0012-00-1261-02 24” snap lead set USA
0012-00-1261-03 40” snap lead set USA
0012-00-1261-04 18” snap lead set International
0012-00-1261-05 24” snap lead set International
0012-00-1261-06 40” snap lead set International
0012-00-1261-07 18” snap lead set USA
0012-00-1261-08 24” snap lead set USA
0012-00-1261-09 40” snap lead set USA
0012-00-1261-10 18” snap lead set International
0012-00-1261-11 24” snap lead set International
0012-00-1261-12 40” snap lead set International
0012-00-1261-13 3/40” 2/60” snap lead set USA
0012-00-1261-14 3/40” 2/60” snap lead set International
LEAD
CONNECTOR
PATIENT END
TERMINATION
SHIELD
5 Lead USA 3 Lead USA
GREEN
BLACK
RED
WHITE
BROWN
L" +/- 1.00"
GREEN
GREENGREEN
RED
BLACK
WHITE
BROWN
GREENGREEN
RED
WHITE
BLACK
BLACK
RED
WHITE
L" +/- 1.00"
TWO PINS
SHORTED
TWO PINS
SHORTED
KEYING BLOCKS
ARE TO BE THE SAME
COLOR AS LEAD WIRE
GREEN
BLACK
RED
WHITE
L" +/- 1.00"
GREENGREEN
RED
BLACK
WHITE
YELLOW
GREEN
YELLOW
GREENGREEN
RED
GREEN
YELLOW
YELLOW
RED
GREEN
L" +/- 1.00"
TWO PINS
SHORTED
TWO PINS
SHORTED
KEYING BLOCKS
ARE TO BE THE SAME
COLOR AS LEAD WIRE
5 Lead International 3 Lead International
