Datascope Passport 2 - Safety Precautions

Passport 2®/Passport 2 LT™ Service Manual 0070-10-0441 3 - 3
Repair Information Safety Precautions
Rolling Stand Kit
P/N:
0040-00-0287-01
Wall Mount Kit
P/N:
0040-00-0287-02
Channel Plate Assembly
P/N 0386-00-0264
Swivel Head Assembly
P/N 0376-00-0011
Basket Assembly
P/N 0426-00-0073
Column
P/N 0009-00-0004
Base
P/N 0441-00-0168
Stationary Mounting Bracket
and Screws
P/N 0040-00-0299-02
Stationary Mounting Bracket
and Screws
P/N 0040-00-0299-02
Track and Arm Assembly
P/N 0436-00-0169
Caster Locking
P/N 0401-00-0027-02
Caster Non-Locking
P/N 0401-00-0027-01
Handle
P/N 0367-00-0068

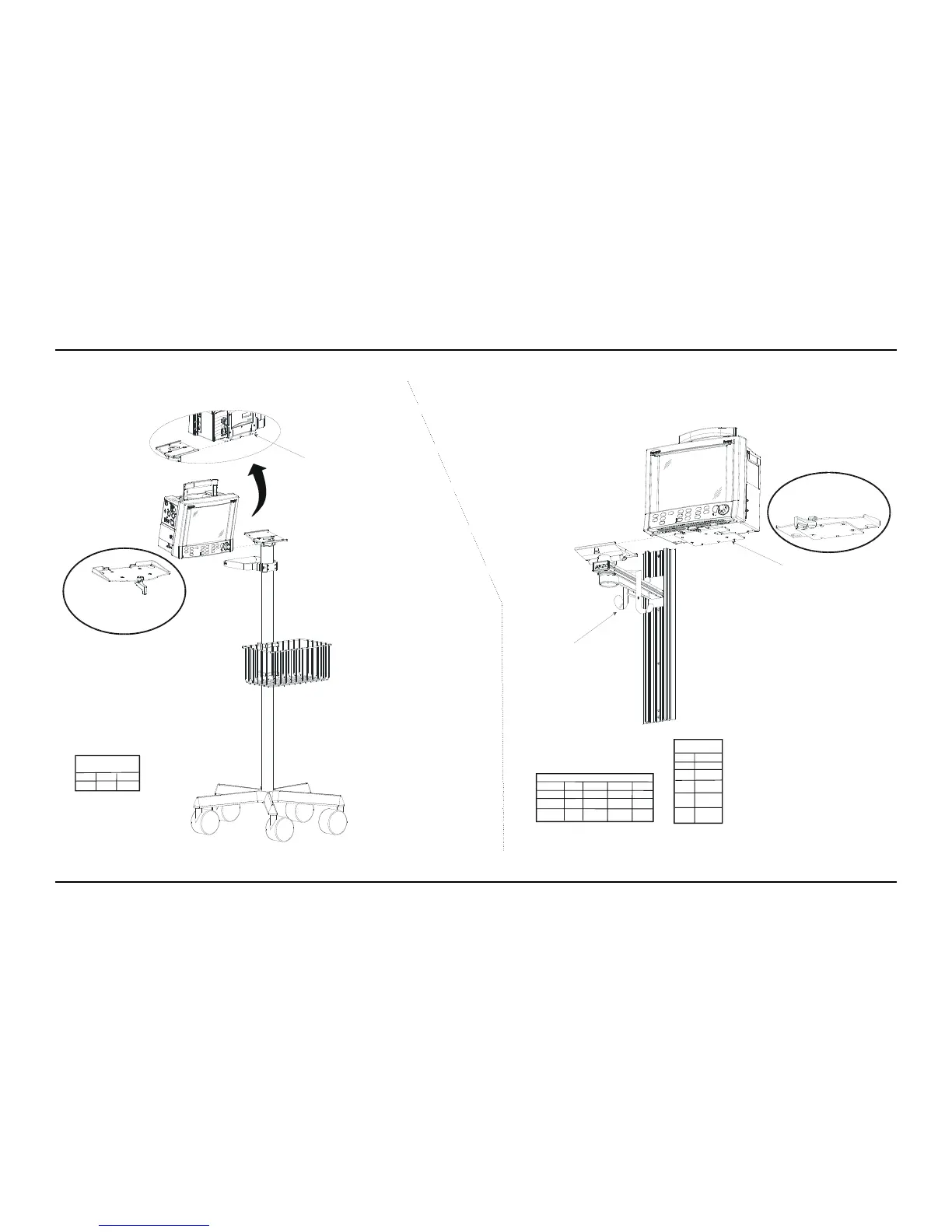

Rolling Stand and Wall Mount
Cable Hook Assembly
P/N 0436-00-0132
Single Wall Mount Dimensions
Tra ck
Item
19"
Height
Width
3.5"
Arm
12"
3.5"
Depth
Max. Load
per Arm
lbs.
80 lbs
Rolling Stand
Dimensions
44"
Height Width
24.5"
Max Load
50 lb
Passport 2
Specifications
Height
Width
Depth
lbs.
Watts
Max.
BTU's
72.0
11. 9"
9.5"
7.4"
13.9 lbs
245
Notes:
1. It is recommended all AC Power be 120/.6amps,or 240/.3amps.
Emergency power and a dedicated circuit be provided.
2. it is recommended minimum distance from finished floor to
bottom of wall mount be 54 inches.
3. Location of wall mount is recommended to be to the left or
right of the patients head for best visual.
Revised 12/01/08
(Optional)
(Quick Release)
Deluxe Mounting Plate
P/N 0040-00-0299-01
(Optional)
(Quick Release)
Deluxe Mounting Plate
P/N 0040-00-0299-01
