Passport 2®/Passport 2 LT™ Service Manual 0070-10-0441 3 - 17
Repair Information Disassembly Instructions

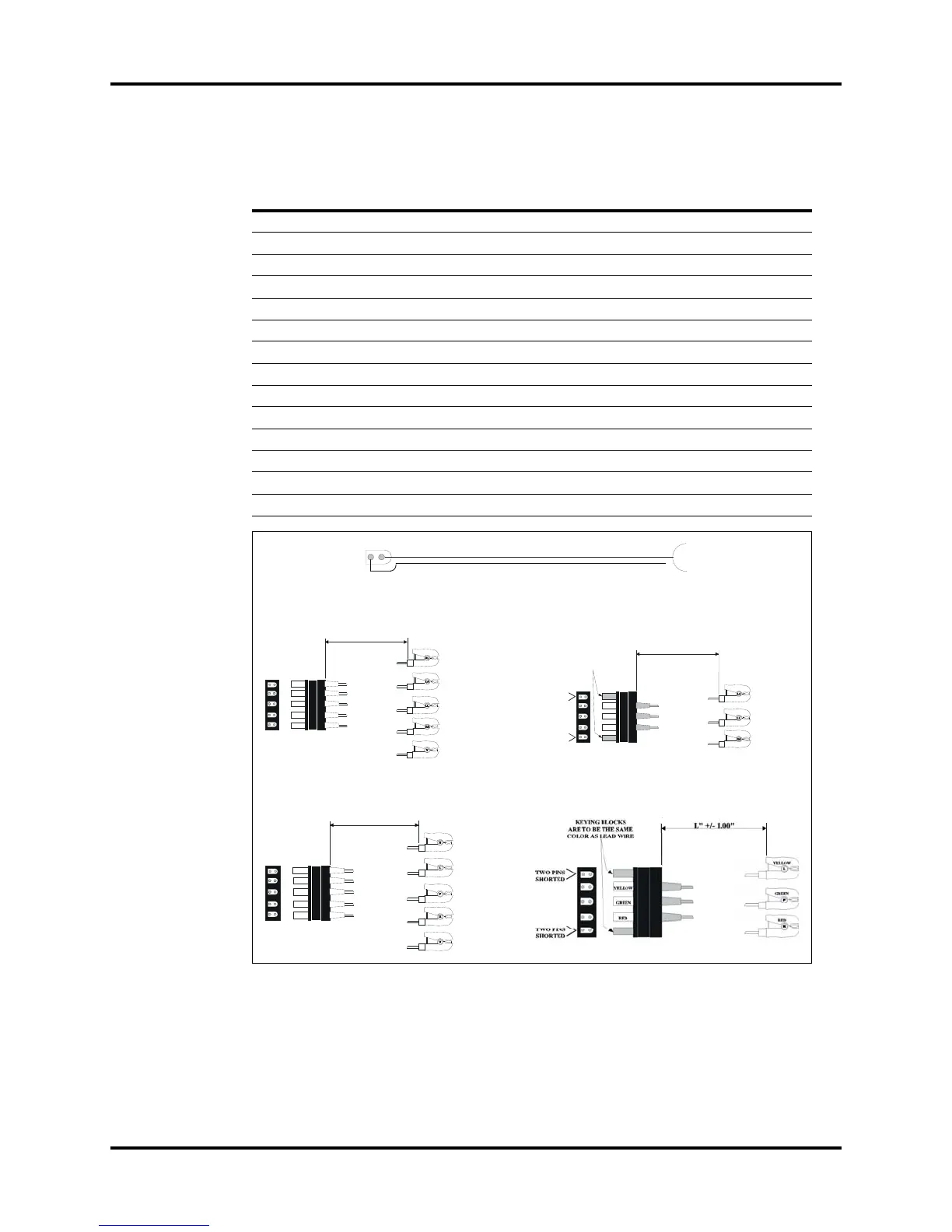

ECG Shielded Lead Wires
PART NUMBER LENGTH AND DESCRIPTION
0012-00-1262-01 18” pinch 5 lead set USA
0012-00-1262-02 24” pinch 5 lead set USA
0012-00-1262-03 40” pinch 5 lead set USA
0012-00-1262-04 18” pinch 5 lead set International
0012-00-1262-05 24” pinch 5 lead set International
0012-00-1262-06 40” pinch 5 lead set International
0012-00-1262-07 18” pinch 3 lead set USA
0012-00-1262-08 24” pinch 3 lead set USA
0012-00-1262-09 40” pinch 3 lead set USA
0012-00-1262-10 18” pinch 3 lead set International
0012-00-1262-11 24” pinch 3 lead set International
0012-00-1262-12 40” pinch 3 lead set International
0012-00-1262-13 3/40” 2/60” pinch 5 lead set USA
0012-00-1262-14 3/40” 2/60” pinch 5 lead set International
LEAD
CONNECTOR
PATIENT END
TERMINATION
SHIELD
5 Lead USA 3 Lead USA
GREEN
BLACK
RED
WHITE
BROWN
GREEN
BLACK
RED
WHITE
BROWN
L" +/- 1.00"
BLACK
RED
WHITE
BLACK
RED
WHITE
L" +/- 1.00"
TWO PINS
SHORTED
TWO PINS
SHORTED
KEYING BLOCKS
ARE TO BE THE SAME
COLOR AS LEAD WIRE
5 Lead International 3 Lead International
GREEN
BLACK
RED
WHITE
GREEN
BLACK
RED
WHITE
L" +/- 1.00"
YELLOW
YELLOW
