Disassembly Instructions Repair Information
3 - 14 0070-10-0441 Passport 2®/Passport 2 LT™ Service Manual
Panorama Mobility Cable (ESIS and Non ESIS)

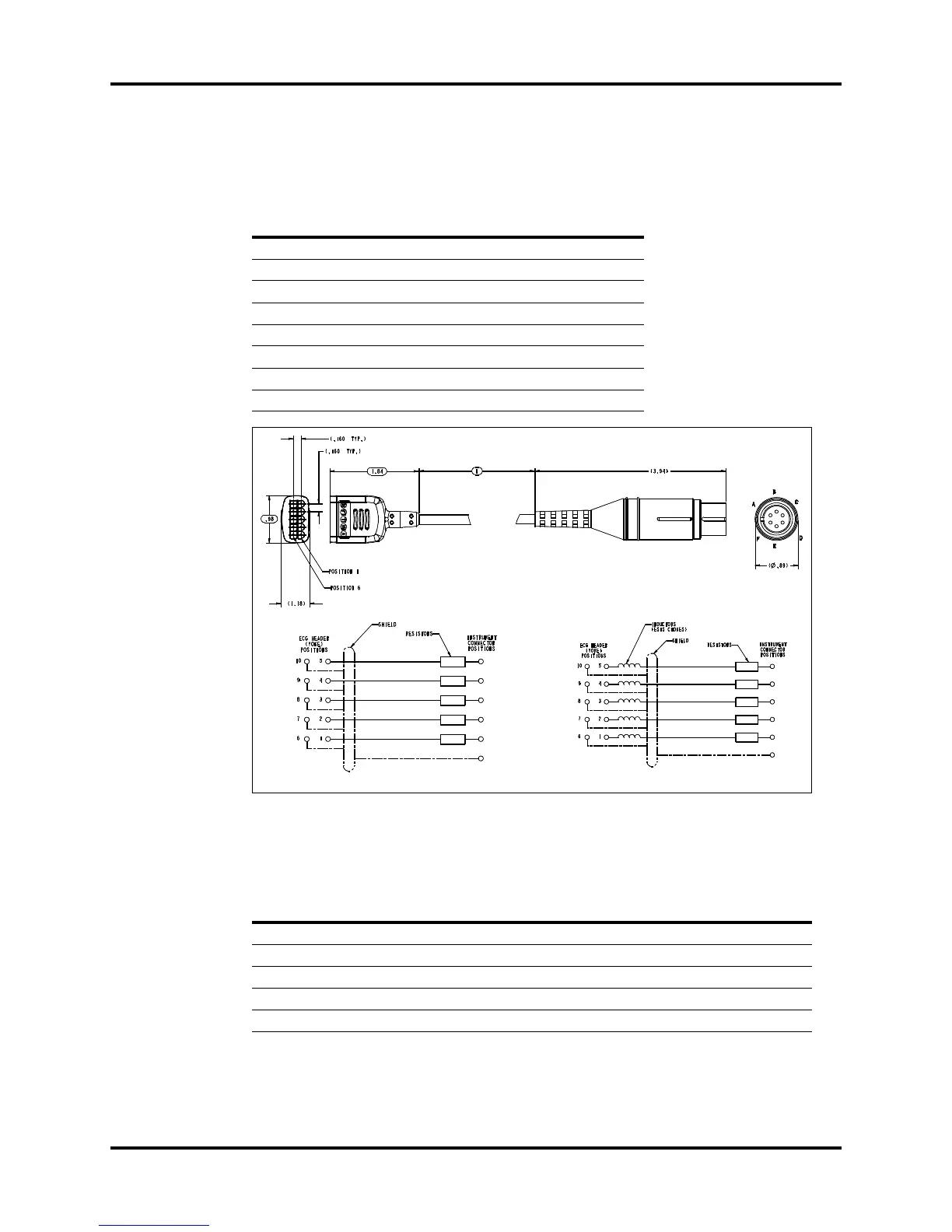

FIGURE 3-2 Panorama Mobility Cable (ESIS and Non ESIS)
P/N 0012-00-1502-XX
DESCRIPTION DASH #
Non ESIS, 10’, USA -01
Non ESIS, 20’, USA -02
ESIS, 10’, USA -03
ESIS, 20’, USA -04
Non ESIS, 10’, International -05
Non ESIS, 20’, International -06
ESIS, 10’, International -07
ESIS, 20’, International -08
ANSI/AAMI EC53-1995 IEC CONVENTIONAL STANDARD
LEAD COLOR LEAD COLOR
V Brown Chest (C) White
Right Arm (RA) White Right Arm (R) Red
Left Leg (LL) Red Left Leg (F) Green
Left Arm (LA) Black Left Arm (L) Yellow
Right Leg (RL) Green Right Leg (N) Black
Non ESIS
ESIS
E (RL/N)
B (LA/L)
C (LL/F)
A (RA/R)
D (V/C)
F
E (RL/N)
B (LA/L)
C (LL/F)
A (RA/R)
D (V/C)
F
