Passport 2®/Passport 2 LT™ Service Manual 0070-10-0441 6 - 9
Calibration Procedure Diagnostics
i. Select down to NIBP Overpressure Voltage. Adjust potentiometer R 31 on the NIBP
Module and verify on screen the Overpressure Voltage is 0.100 volts.

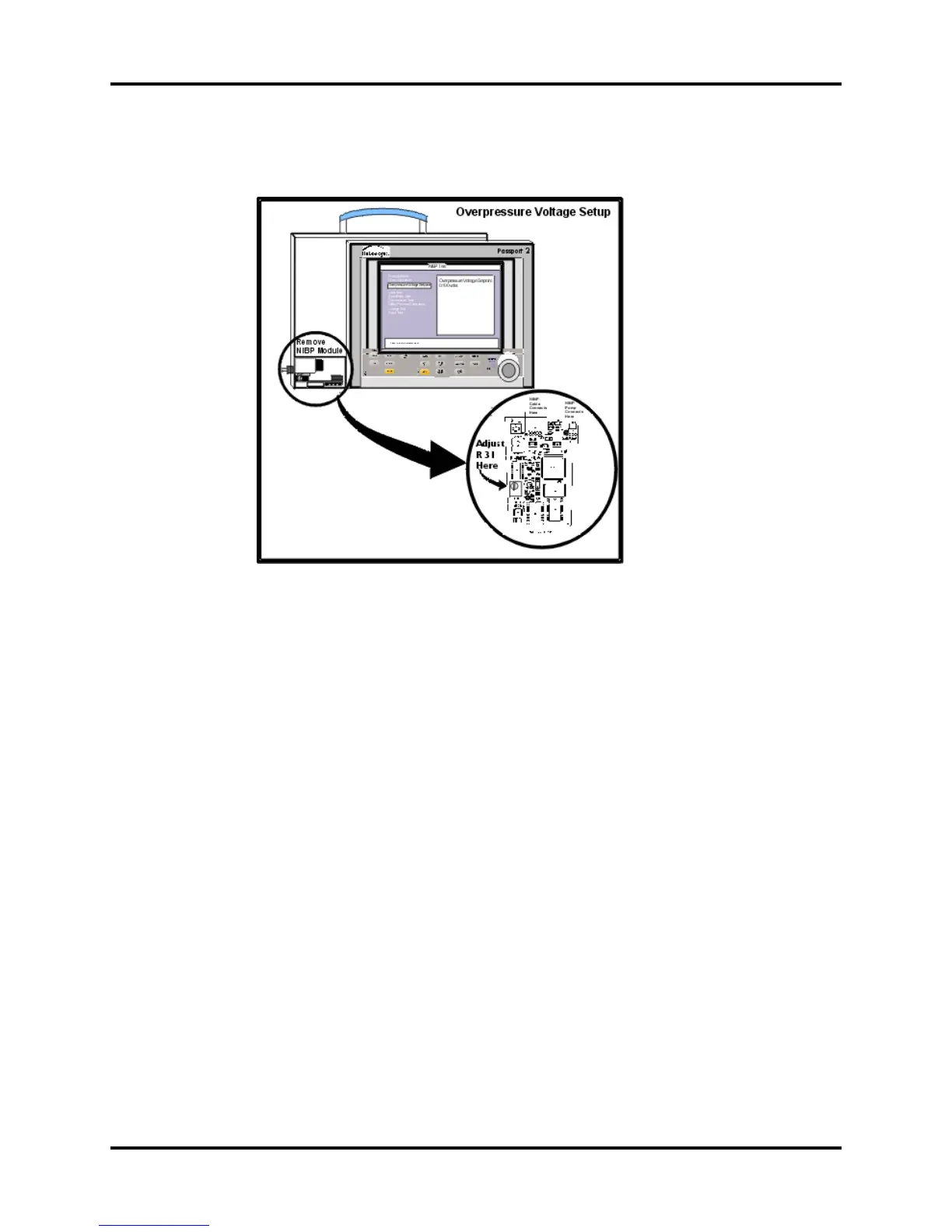

FIGURE 6-11
j. Reassemble unit and verify proper operation.
B. Specification with P/N 0670-00-0730/0670-00-0746-01
No manual adjustment is required. The voltage setpoint is controlled by software. If “Check
Calibration/Cuff Overpressure” appears on the screen in message area, replace the NIBP
module accordingly.
C. Specification: .030 to .170 volts
