Passport 2®/Passport 2 LT™ Service Manual 0070-10-0441 3 - 5
Repair Information Safety Precautions
Invasive Pressure
Ports 1 & 2
Battery
Connects to
Co2 Exhaust Port
Connects to
Co2 Input Port
Connects to
ECG Input Port
Connects to
Temperatu re
Input Port
Connects to
Spo2 Input Port
Connects to
NIBP Port

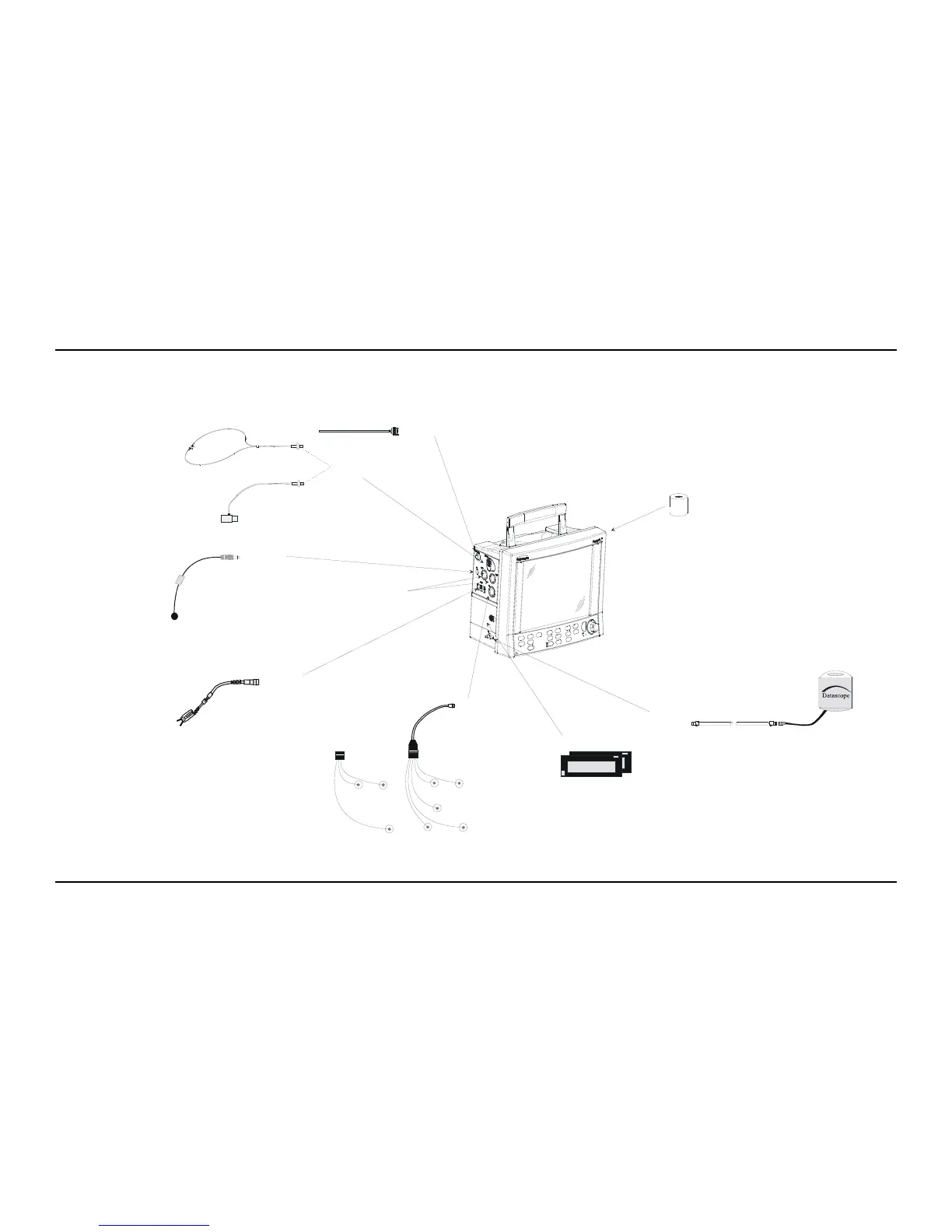

Basic Passport 2 Accessories
Recorder
Paper
P/N 0683-00-0422-02
NIBP Adult Cuff
P/N 0998-00-0003-54
NIBP Hose 3.5 Meters
P/N 0683-04-0004
Battery
P/N 0146-00-0043
5 Lead Wire Set (USA)
(Snap 18")
P/N 0012-00-1261-01
3 Lead Wire Set (USA)
(Snap 18")
P/N 0012-00-1261-07
ECG Cable Assembly 10'
P/N 0012-00-1255-01
Masimo Adult / Ped Spo2 Kit
P/N 0020-00-0130
(See Note:)
400 Series Instrument cable
P/N 0012-00-0975
400 Series Skin Temp Sensor
P/N 0206-03-0300-02
Filterline Set Short Term (Adult/Ped)
P/N 0683-00-0470-25
Filterline Nasal Canula (Adult)
P/N 0683-00-0467-25
Co2 Scavenging Assembly
P/N 0008-00-0332-01
Note: Refer to the Pressure Transducer
Manufacturer for the proper IBP Instrument Cable
3 Lead Wire Set (International)
(Snap 18")
P/N 0012-00-1261-10
5 Lead Wire Set (International)
(Snap 18")
P/N 0012-00-1261-04
Passport 2
Installation Guide
Revised 03/07/02
