Datascope Passport 2 - Page 89

Passport 2®/Passport 2 LT™ Service Manual 0070-10-0441 3 - 23
Repair Information Disassembly Instructions

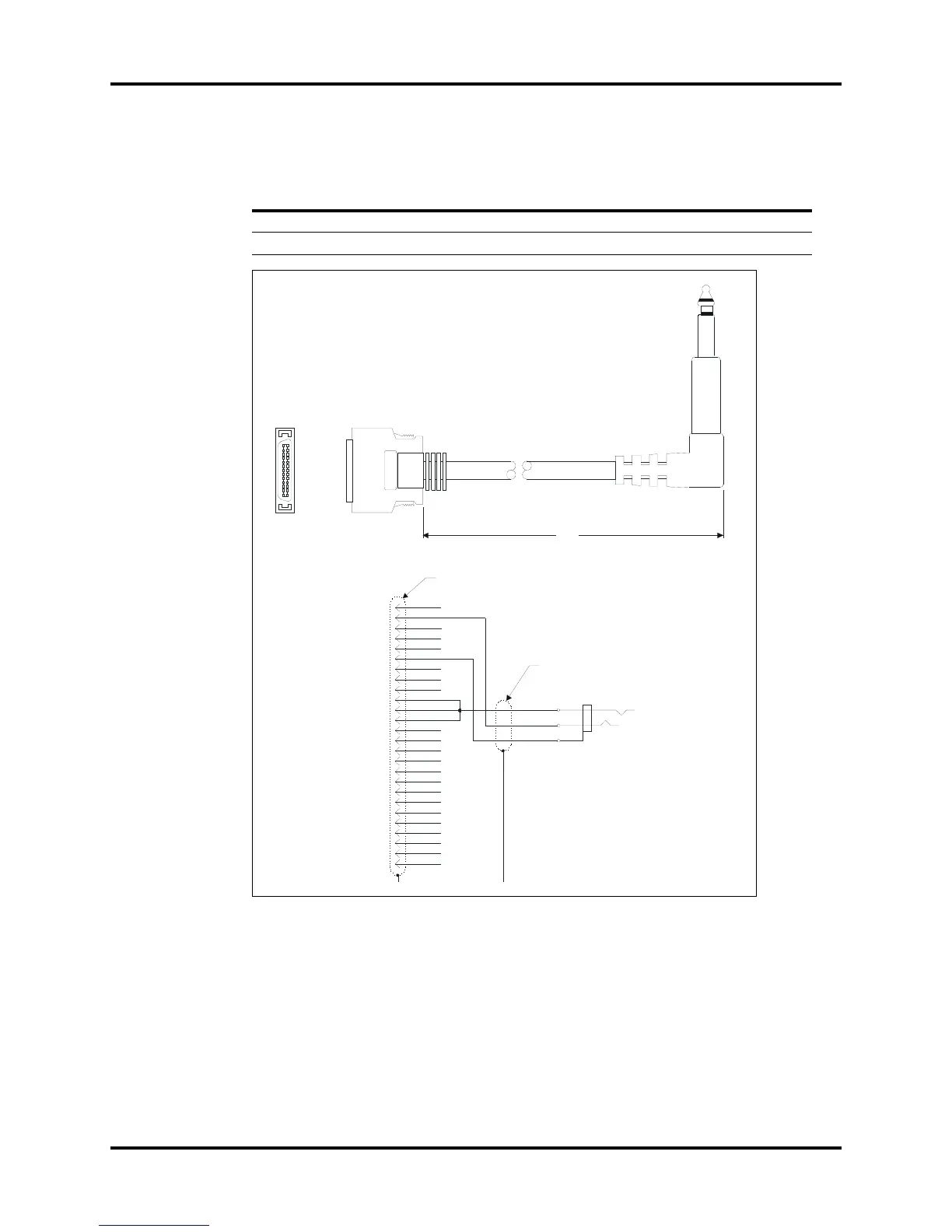

26 pin Molex to Mini Din Cable (DPD sync Cable)
PART NUMBER LENGTH
0012-00-1301-01 8 inches ± 1 inch
0012-00-1301-02 10 feet ± 6 inches
P1
P2
1
26 25
2
L
P2
P1
7
6
5
4
3
2
1
8
9
10
11
12
13
14
15
16
17
18
19
20
TIP
RING
SLV
21
22
23
24
25
26
GND
RSV'd
SYNC
Connector shield
Cable shield
