TYPICAL APPLICATIONS
Six Channel Set Up Sync’ed to AES Reference

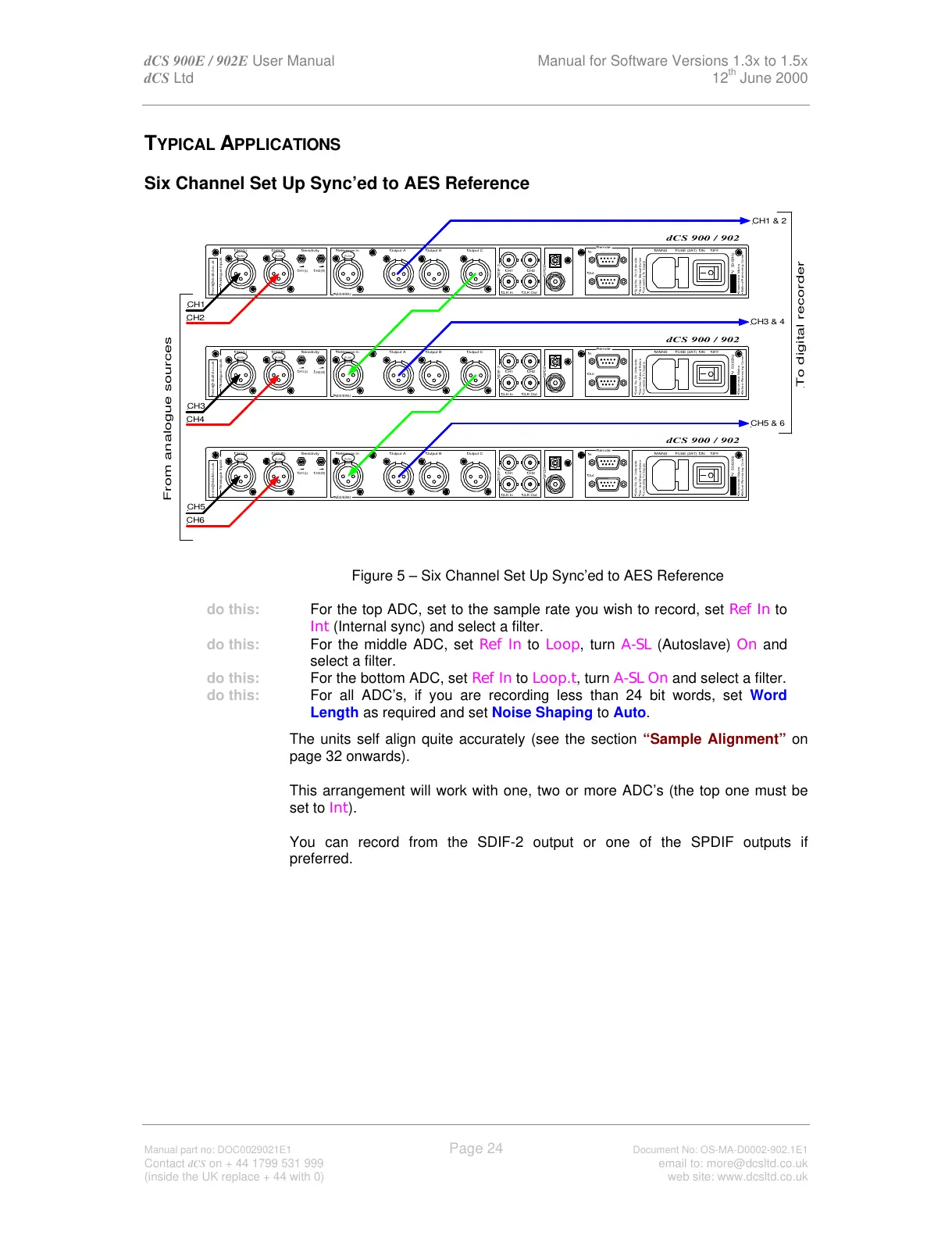

Figure 5 – Six Channel Set Up Sync’ed to AES Reference
do this: For the top ADC, set to the sample rate you wish to record, set Ref In to
Int (Internal sync) and select a filter.
do this: For the middle ADC, set Ref In to Loop, turn A-SL (Autoslave) On and
select a filter.
do this: For the bottom ADC, set Ref In to Loop.t, turn A-SL On and select a filter.
do this: For all ADC’s, if you are recording less than 24 bit words, set Word
Length as required and set Noise Shaping to Auto.
The units self align quite accurately (see the section “Sample Alignment” on
page 32 onwards).
This arrangement will work with one, two or more ADC’s (the top one must be
set to Int).
You can record from the SDIF-2 output or one of the SPDIF outputs if
preferred.
SPDIF
Reference In
AES/EBU
CH1(L)
Analogue Inputs
more@dcsltd.co.uk
CH2(R)
CH1(L)
Sensitivity
CH2(R)
Output BOutput A
SDIF-2
CH1 CH2
CLK OutCLK In
Output C
Remote
See User Manual Before
Connecting To Supply
Serial No. On Underside.
Out
In
MAINS ON OFF
Before Removing Cover
Disconnect Mains
V 50/60Hz
FUSE (2AT)
PUSH PUSHPUSH
CH1
From analogue sources
dCS 900 / 902
CH2
SPDIF
Reference In
AES/EBU
CH1(L)
Analogue Inputs
more@dcsltd.co.uk
CH2(R)
CH1(L)
Sensitivity
CH2(R)
Output BOutput A
SDIF-2
CH1 CH2
CLK OutCLK In
Output C
Remote
See User Manual Before
Connecting To Supply
Serial No. On Underside.
Out
In
MAINS ON OFF
Before Removing Cover
Disconnect Mains
V 50/60Hz
FUSE (2AT)
PUSH PUSHPUSH
CH3
dCS 900 / 902
CH4
SPDIF
Reference In
AES/EBU
CH1(L)
Analogue Inputs
more@dcsltd.co.uk
CH2(R)
CH1(L)
Sensitivity
CH2(R)
Output BOutput A
SDIF-2
CH1 CH2
CLK OutCLK In
Output C
Remote
See User Manual Before
Connecting To Supply
Serial No. On Underside.
Out
In
MAINS ON OFF
Before Removing Cover Disconnect Mains
V 50/60Hz
FUSE (2AT)
PUSH PUSHPUSH
CH5
dCS 900 / 902
CH6
CH1 & 2
CH3 & 4
CH5 & 6
To digital recorder
