Six Channel Set Up Sync’ed to Word Clock

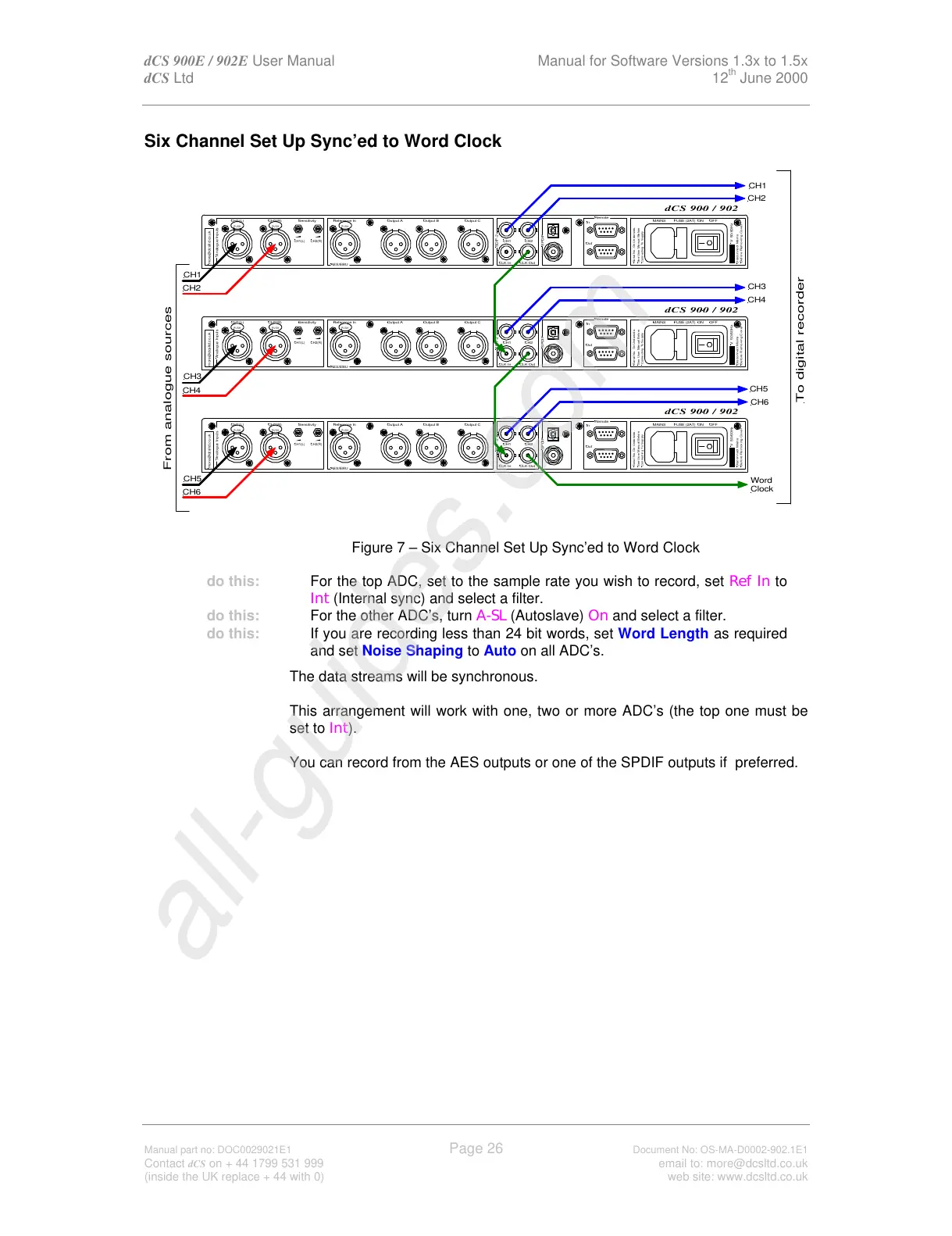

Figure 7 – Six Channel Set Up Sync’ed to Word Clock
do this: For the top ADC, set to the sample rate you wish to record, set Ref In to
Int (Internal sync) and select a filter.
do this: For the other ADC’s, turn A-SL (Autoslave) On and select a filter.
do this: If you are recording less than 24 bit words, set Word Length as required
and set Noise Shaping to Auto on all ADC’s.
The data streams will be synchronous.
This arrangement will work with one, two or more ADC’s (the top one must be
set to Int).
You can record from the AES outputs or one of the SPDIF outputs if preferred.
SPDIF
Reference In
AES/EBU
CH1(L)
Analogue Inputs
more@dcsltd.co.uk
CH2(R)
CH1(L)
Sensitivity
CH2(R)
Output BOutput A
SDIF-2
CH1 CH2
CLK OutCLK In
Output C
Remote
See User Manual Before
Connecting To Supply
Serial No. On Underside.
Out
In
MAINS ON OFF
Before Removing Cover
Disconnect Mains
V 50/60Hz
FUSE (2AT)
PUSH PUSHPUSH
CH1
From analogue sources
dCS 900 / 902
CH2
SPDIF
Reference In
AES/EBU
CH1(L)
Analogue Inputs
more@dcsltd.co.uk
CH2(R)
CH1(L)
Sensitivity
CH2(R)
Output BOutput A
SDIF-2
CH1 CH2
CLK OutCLK In
Output C
Remote
See User Manual Before
Connecting To Supply
Serial No. On Underside.
Out
In
MAINS ON OFF
Before Removing Cover
Disconnect Mains
V 50/60Hz
FUSE (2AT)
PUSH PUSHPUSH
CH3
dCS 900 / 902
CH4
SPDIF
Reference In
AES/EBU
CH1(L)
Analogue Inputs
more@dcsltd.co.uk
CH2(R)
CH1(L)
Sensitivity
CH2(R)
Output BOutput A
SDIF-2
CH1 CH2
CLK OutCLK In
Output C
Remote
See User Manual Before
Connecting To Supply
Serial No. On Underside.
Out
In
MAINS ON OFF
Before Removing Cover
Disconnect Mains
V 50/60Hz
FUSE (2AT)
PUSH PUSHPUSH
CH5
dCS 900 / 902
CH6
CH1
