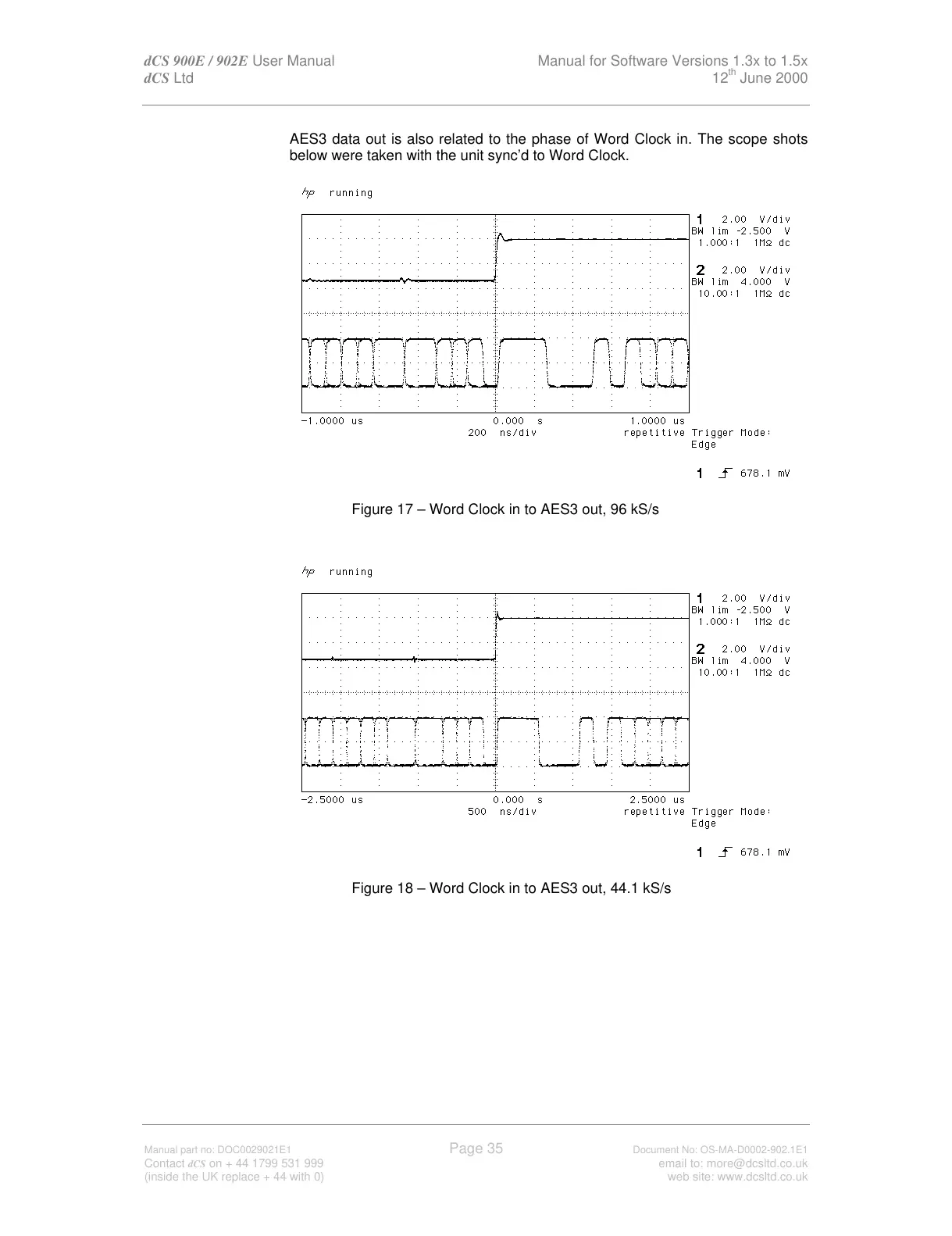

AES3 data out is also related to the phase of Word Clock in. The scope shots
below were taken with the unit sync’d to Word Clock.
Figure 17 – Word Clock in to AES3 out, 96 kS/s
Figure 18 – Word Clock in to AES3 out, 44.1 kS/s
