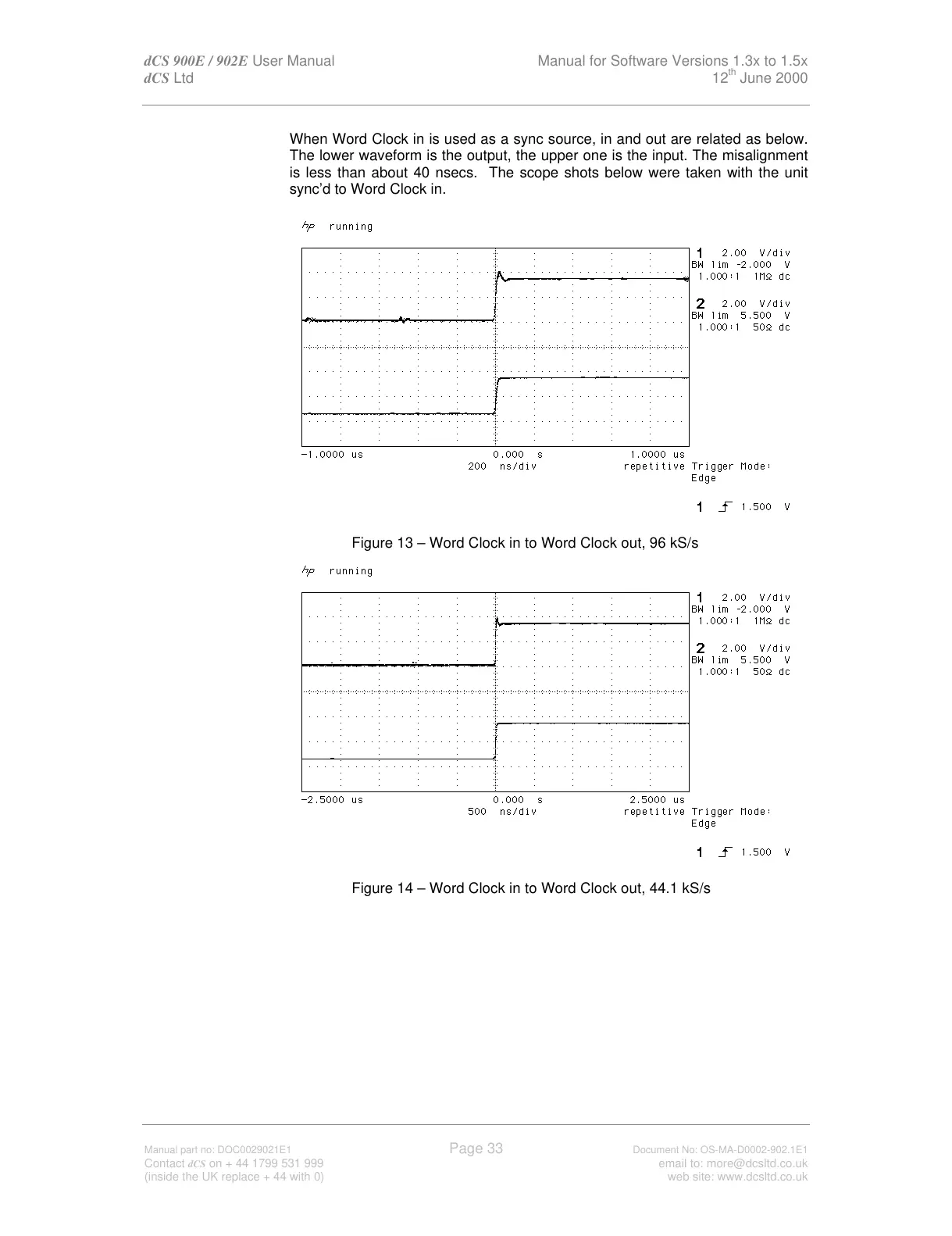

When Word Clock in is used as a sync source, in and out are related as below.
The lower waveform is the output, the upper one is the input. The misalignment
is less than about 40 nsecs. The scope shots below were taken with the unit
sync’d to Word Clock in.
Figure 13 – Word Clock in to Word Clock out, 96 kS/s
Figure 14 – Word Clock in to Word Clock out, 44.1 kS/s
