dCS 900E / 902E User Manual Manual for Software Versions 1.3x to 1.5x
dCS Ltd 12
th
June 2000
Manual part no: DOC0029021E1 Page 34 Document No: OS-MA-D0002-902.1E1
Contact dCS on + 44 1799 531 999 email to: more@dcsltd.co.uk
(inside the UK replace + 44 with 0) web site: www.dcsltd.co.uk

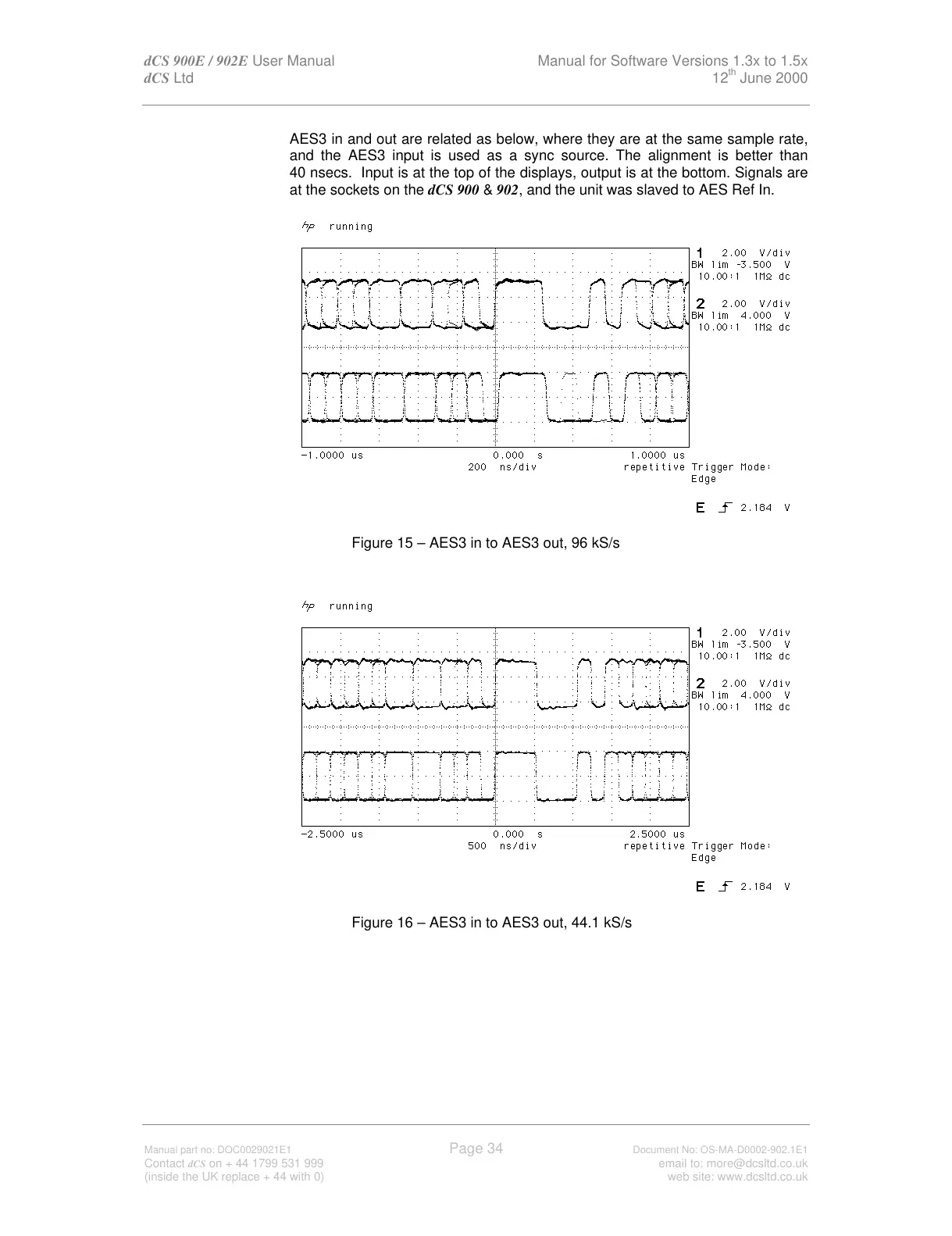

AES3 in and out are related as below, where they are at the same sample rate,
and the AES3 input is used as a sync source. The alignment is better than
40 nsecs. Input is at the top of the displays, output is at the bottom. Signals are
at the sockets on the dCS 900 & 902, and the unit was slaved to AES Ref In.
Figure 15 – AES3 in to AES3 out, 96 kS/s
Figure 16 – AES3 in to AES3 out, 44.1 kS/s
