Six Channel Set Up Sync’ed to Master Clock (Word Clock)

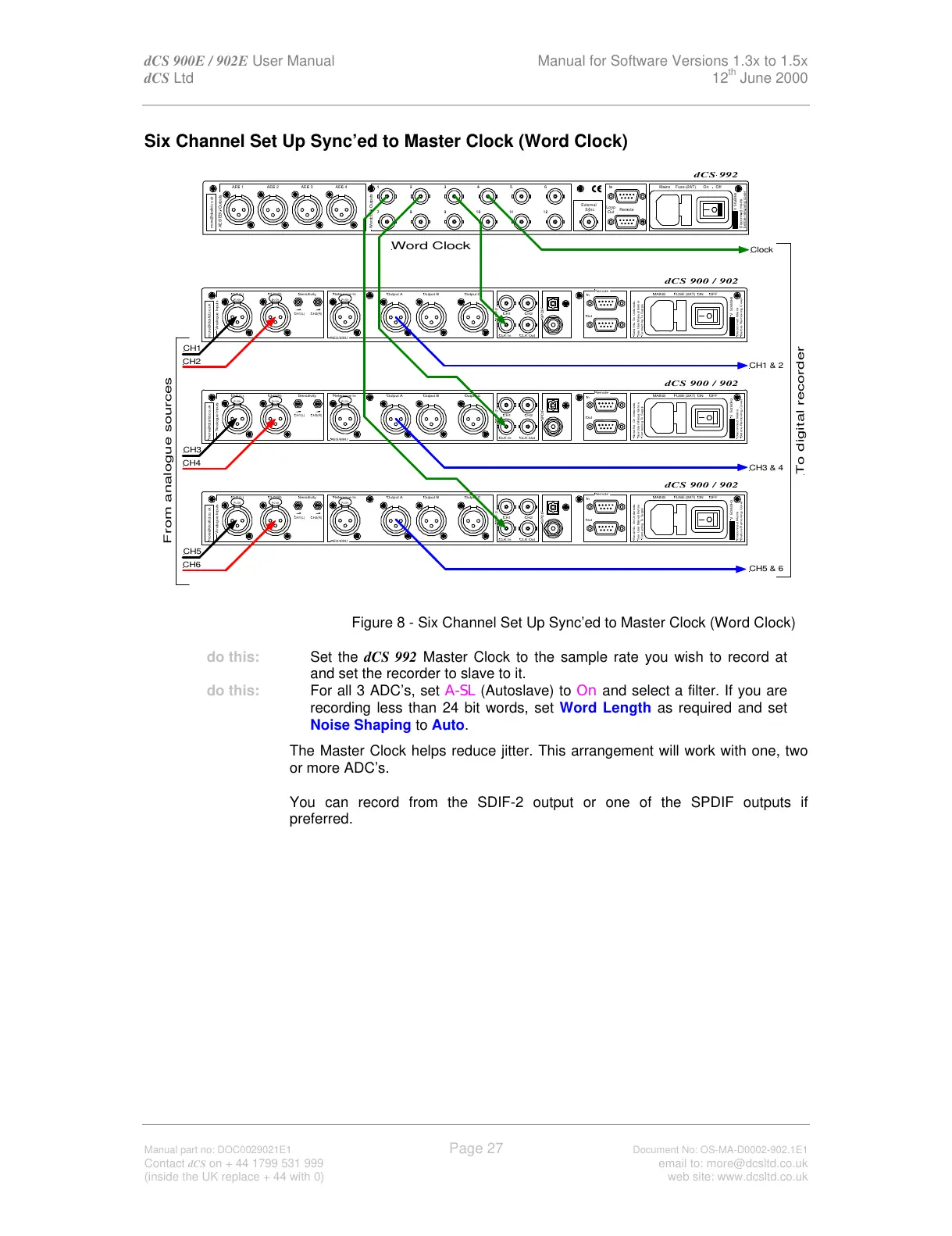

Figure 8 - Six Channel Set Up Sync’ed to Master Clock (Word Clock)
do this: Set the dCS 992 Master Clock to the sample rate you wish to record at
and set the recorder to slave to it.
do this: For all 3 ADC’s, set A-SL (Autoslave) to On and select a filter. If you are
recording less than 24 bit words, set Word Length as required and set
Noise Shaping to Auto.
The Master Clock helps reduce jitter. This arrangement will work with one, two
or more ADC’s.
You can record from the SDIF-2 output or one of the SPDIF outputs if
preferred.
