Operating Several Units on One Remote Chain

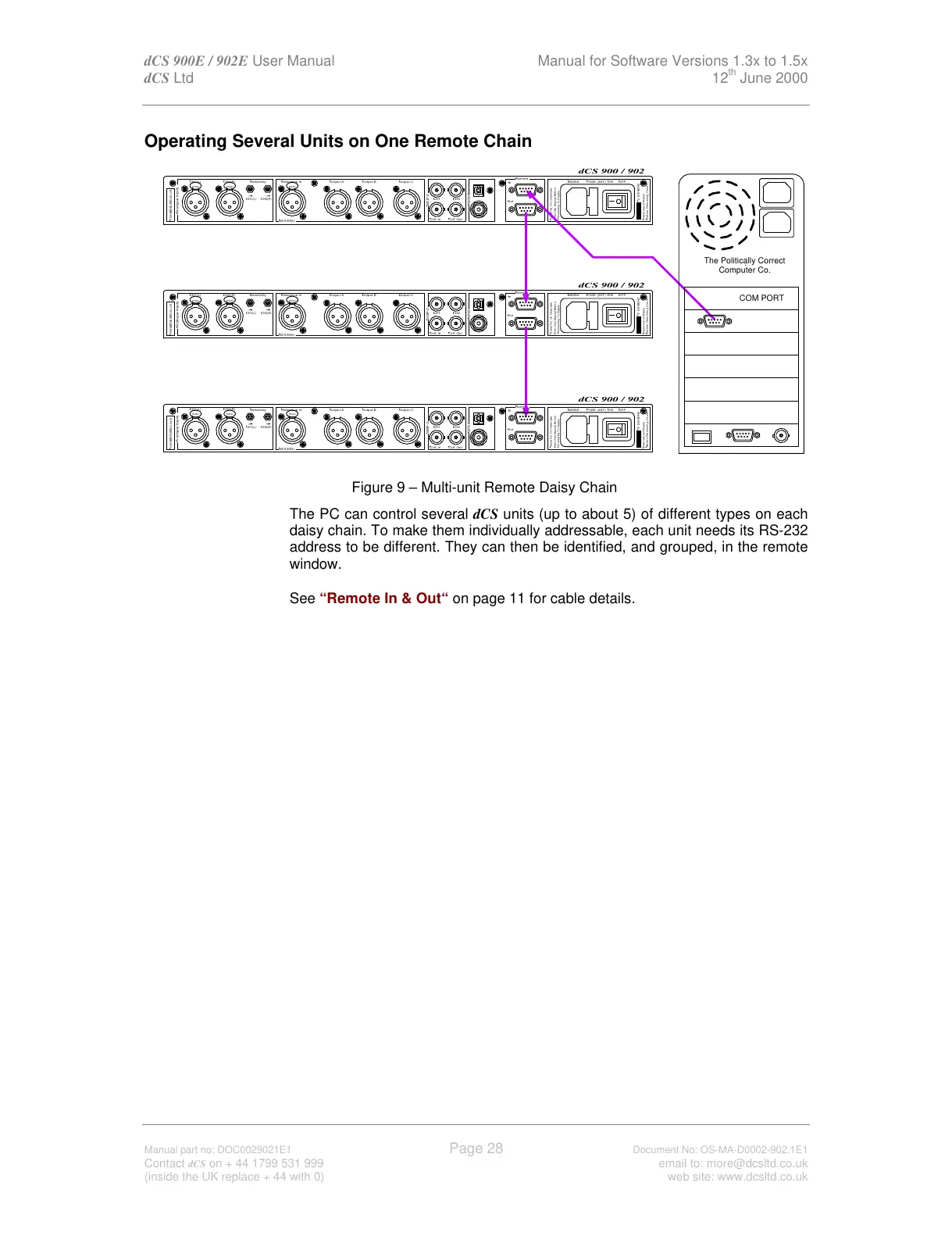

Figure 9 – Multi-unit Remote Daisy Chain
The PC can control several dCS units (up to about 5) of different types on each
daisy chain. To make them individually addressable, each unit needs its RS-232
address to be different. They can then be identified, and grouped, in the remote
window.
See “Remote In & Out“ on page 11 for cable details.
