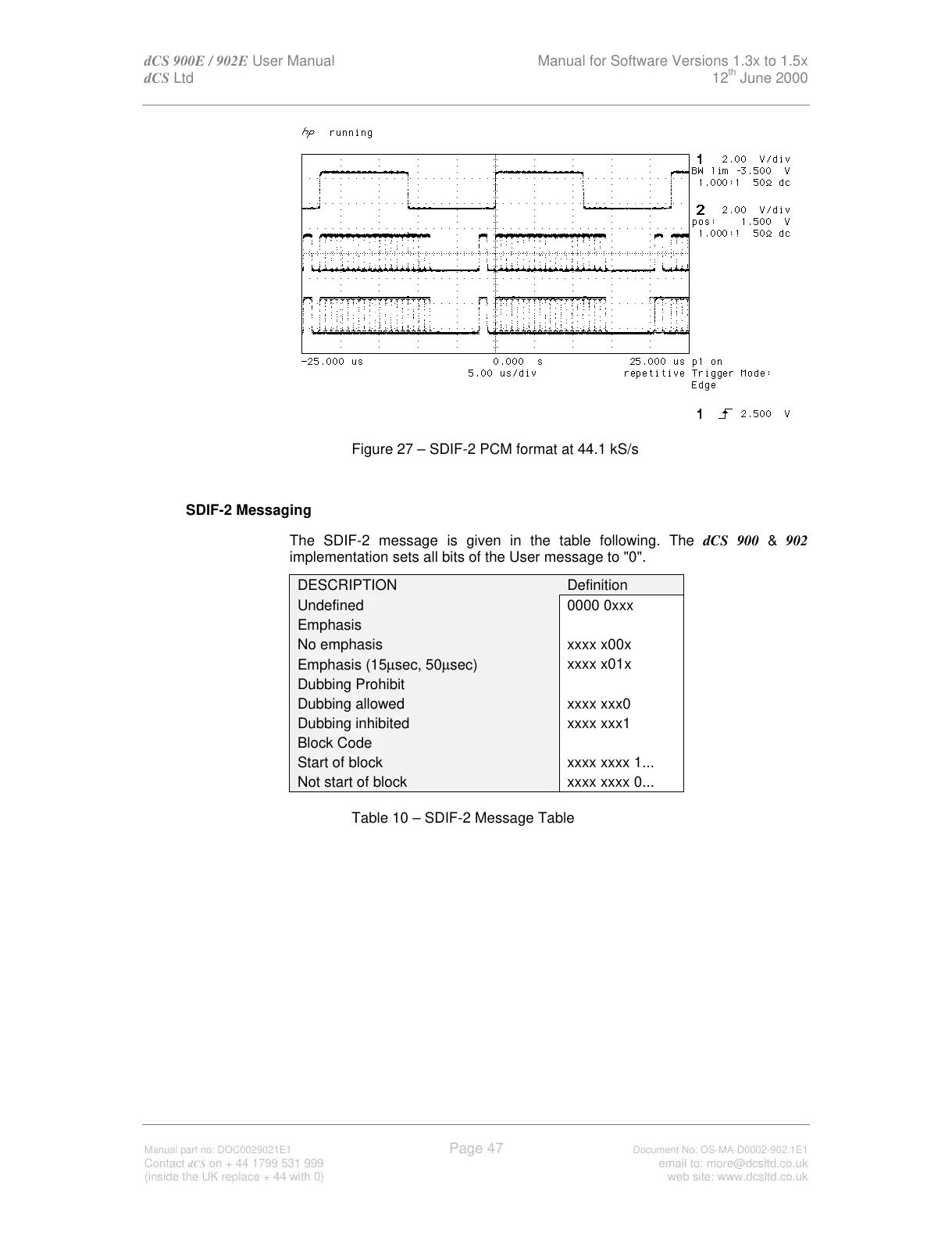

Figure 27 – SDIF-2 PCM format at 44.1 kS/s
SDIF-2 Messaging -
The SDIF-2 message is given in the table following. The dCS 900 & 902
implementation sets all bits of the User message to "0".
DESCRIPTION Definition
Undefined 0000 0xxx
Emphasis
No emphasis
Emphasis (15µsec, 50µsec)
xxxx x00x
xxxx x01x
Dubbing Prohibit
Dubbing allowed
Dubbing inhibited
xxxx xxx0
xxxx xxx1
Block Code
Start of block
Not start of block
xxxx xxxx 1...
xxxx xxxx 0...
Table 10 – SDIF-2 Message Table
