Recording Dual AES on a 4-Track Recorder

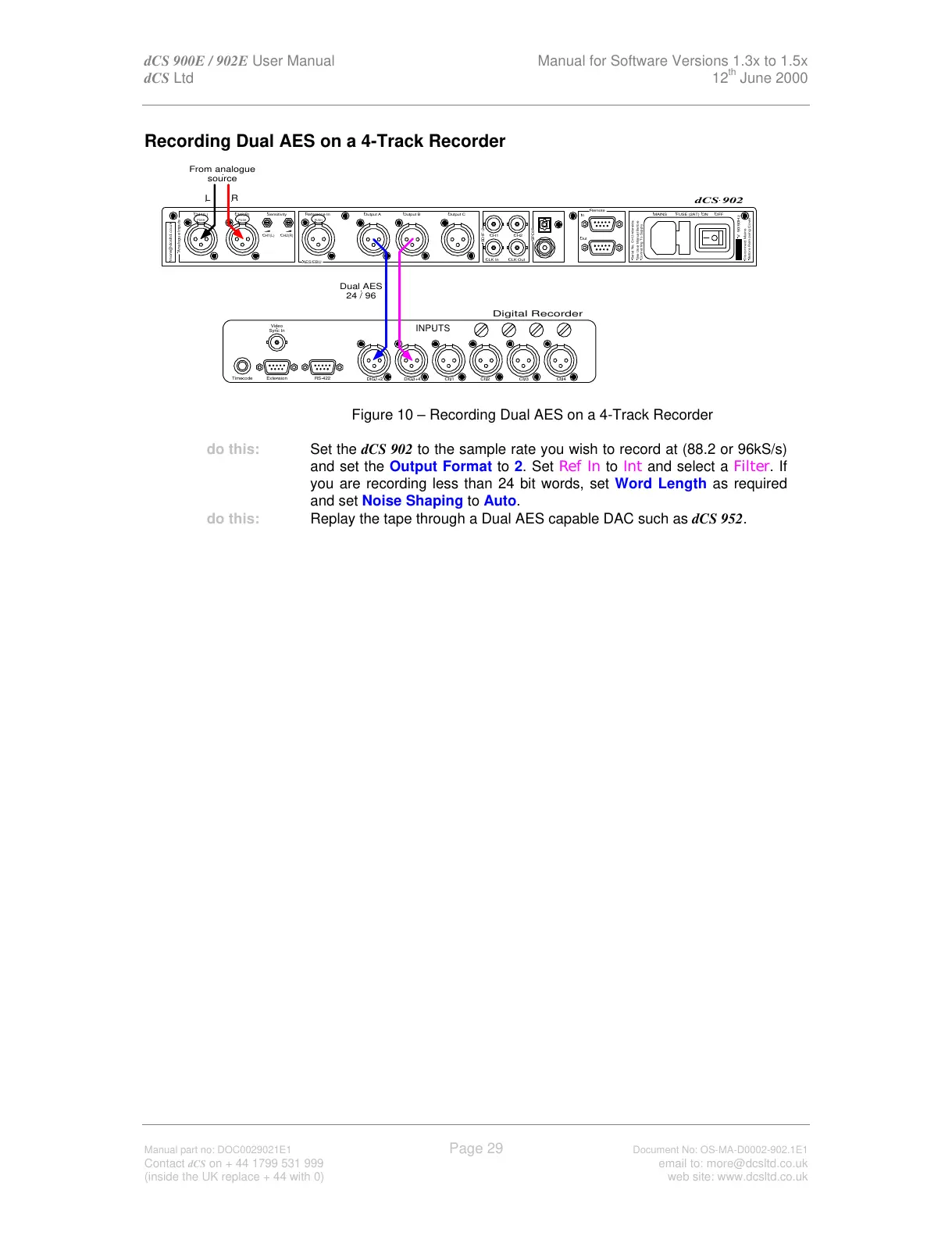

Figure 10 – Recording Dual AES on a 4-Track Recorder
do this: Set the dCS 902 to the sample rate you wish to record at (88.2 or 96kS/s)
and set the Output Format to 2. Set Ref In to Int and select a Filter. If
you are recording less than 24 bit words, set Word Length as required
and set Noise Shaping to Auto.
do this: Replay the tape through a Dual AES capable DAC such as dCS 952.
SPDIF
Reference In
AES/EBU
CH1(L)
Analogue Inputs
more@dcsltd.co.uk
CH2(R)
CH1(L)
Sensitivity
CH2(R)
Output BOutput A
SDIF-2
CH1 CH2
CLK OutCLK In
Output C
Remote
See User Manual Before
Connecting To Supply
Serial No. On Underside.
Out
In
MAINS ON OFF
