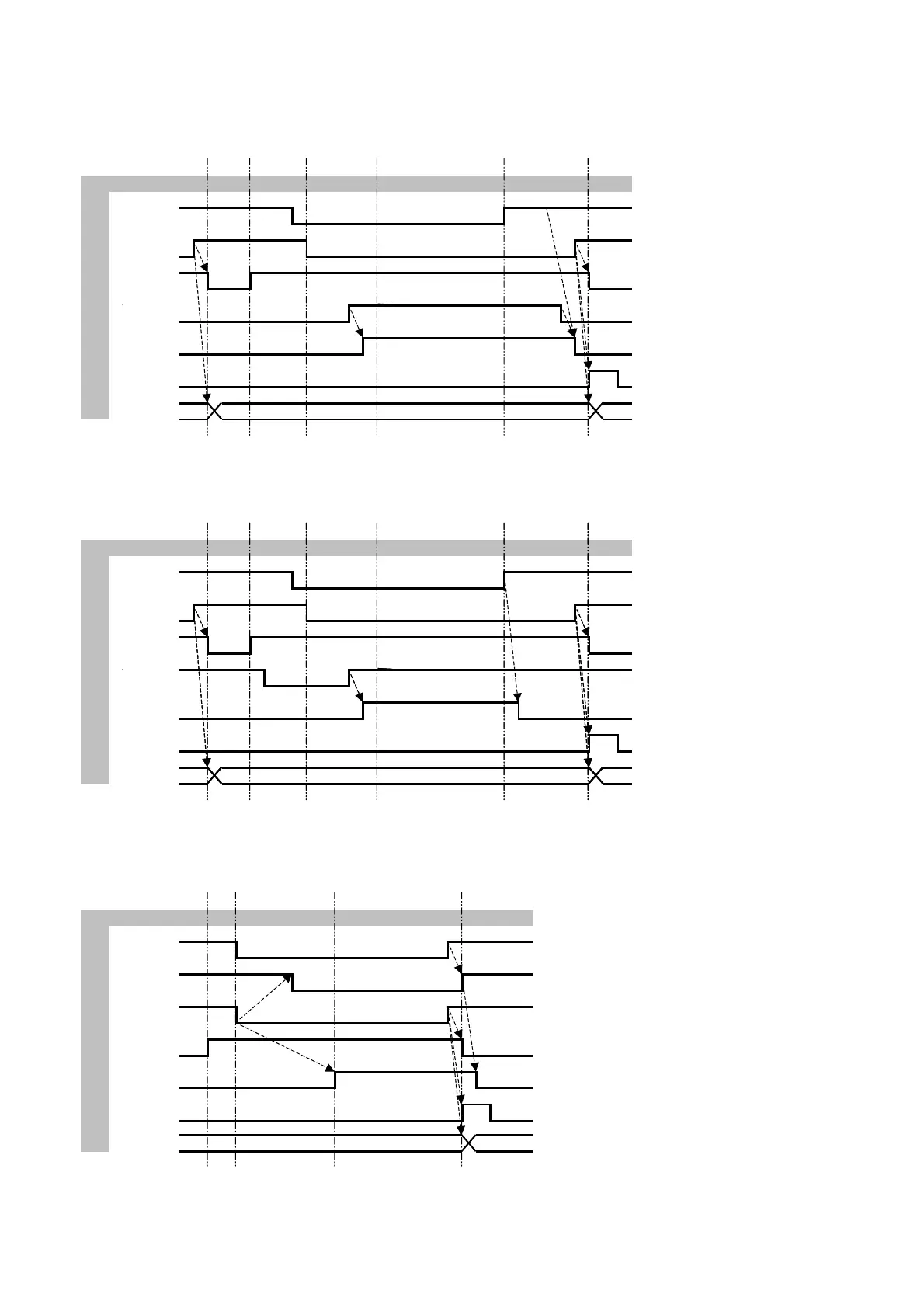

DAC-360 Interrupted cycle with Blade Return (BR)
S0 = Controller Stopped
Status S1 S2 S3 S4 S5 S1 S1 = Positioning
S2 = Wait for ST low
out UDP S3 = Wait for EOS
S4 = Wait for UDP
inp ST S5 = Wait for ST high
out RDY
in BR
out EOS
out EOC
out FD
DAC-360 Interrupted cycle with PEDAL
S0 = Controller Stopped
Status S1 S2 S3 S4 S5 S1 S1 = Positioning
S2 = Wait for ST low
out UDP S3 = Wait for EOS
S4 = Wait for UDP
inp ST S5 = Wait for ST high
out RDY
in PEDAL
out EOS
out EOC
out FD
DAC-360 with timed stroke
S0 = Controller Stopped
Status S1 S2 S3 S4 S1 S1 = Positioning
S2 = Wait for ST low
inp UDPIN S3 = Wait for EOS
S4 = Wait for ST high
out UDP
T6+T5+½T1
inp PEDAL T1 = Delay before cutting force
T5 = Clamping time
out RDY T6 = Delay before main clamping force
T6+T5+T1+T7 T7 = Stroke time
out EOS
out EOC
out FD
