5 Close the front panel door.
6 Install the:
a Front bezel
b Side cover
7 Follow the procedure in After working inside your computer.
Speaker
Removing speaker
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
3 Open the front panel door.

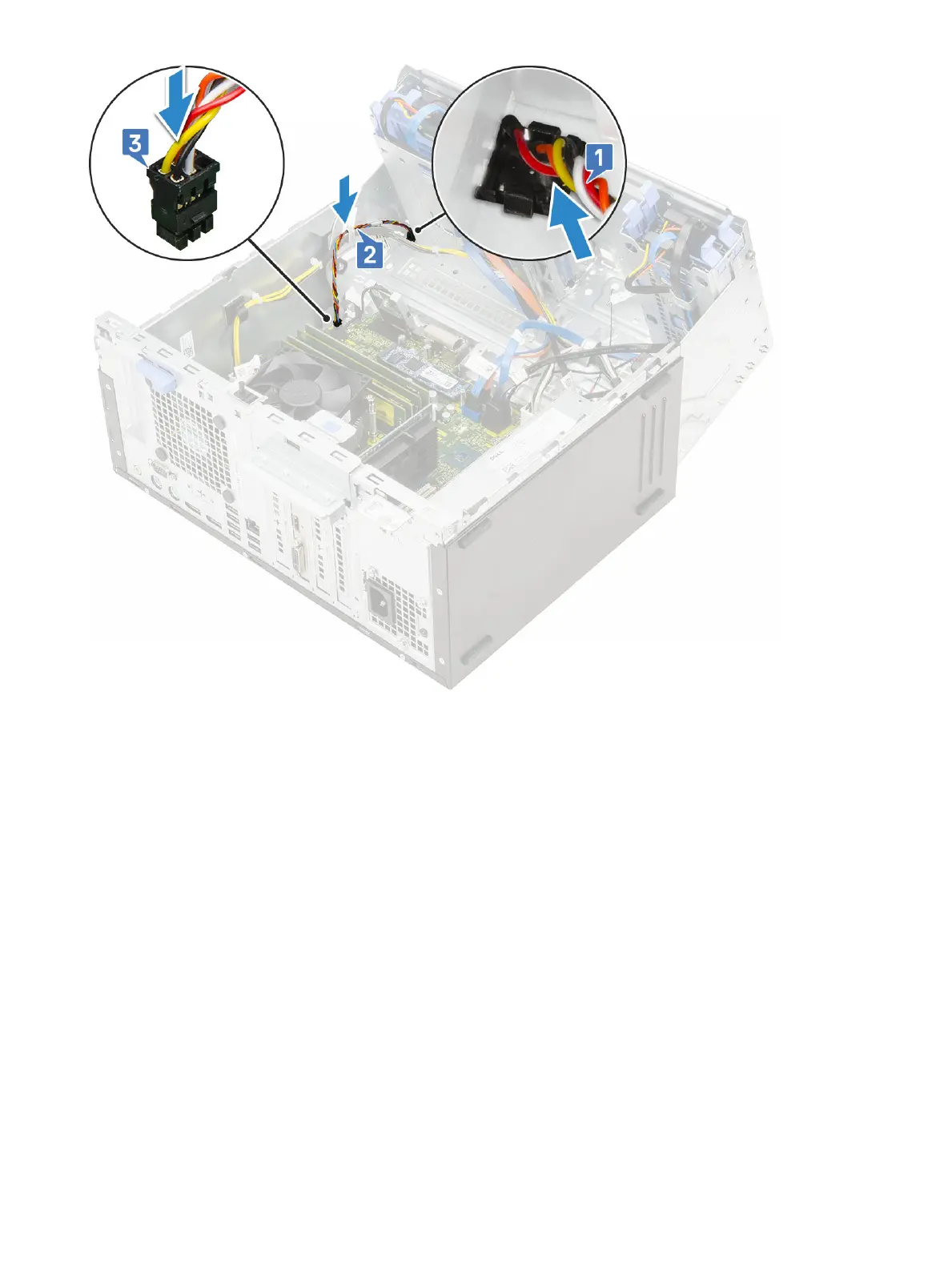

4 To remove the speaker:
a Disconnect the speaker cable from the connector on the system board [1].
b Lift the tab [2], and slide the speaker out of the slot [3].
50
Removing and installing components
