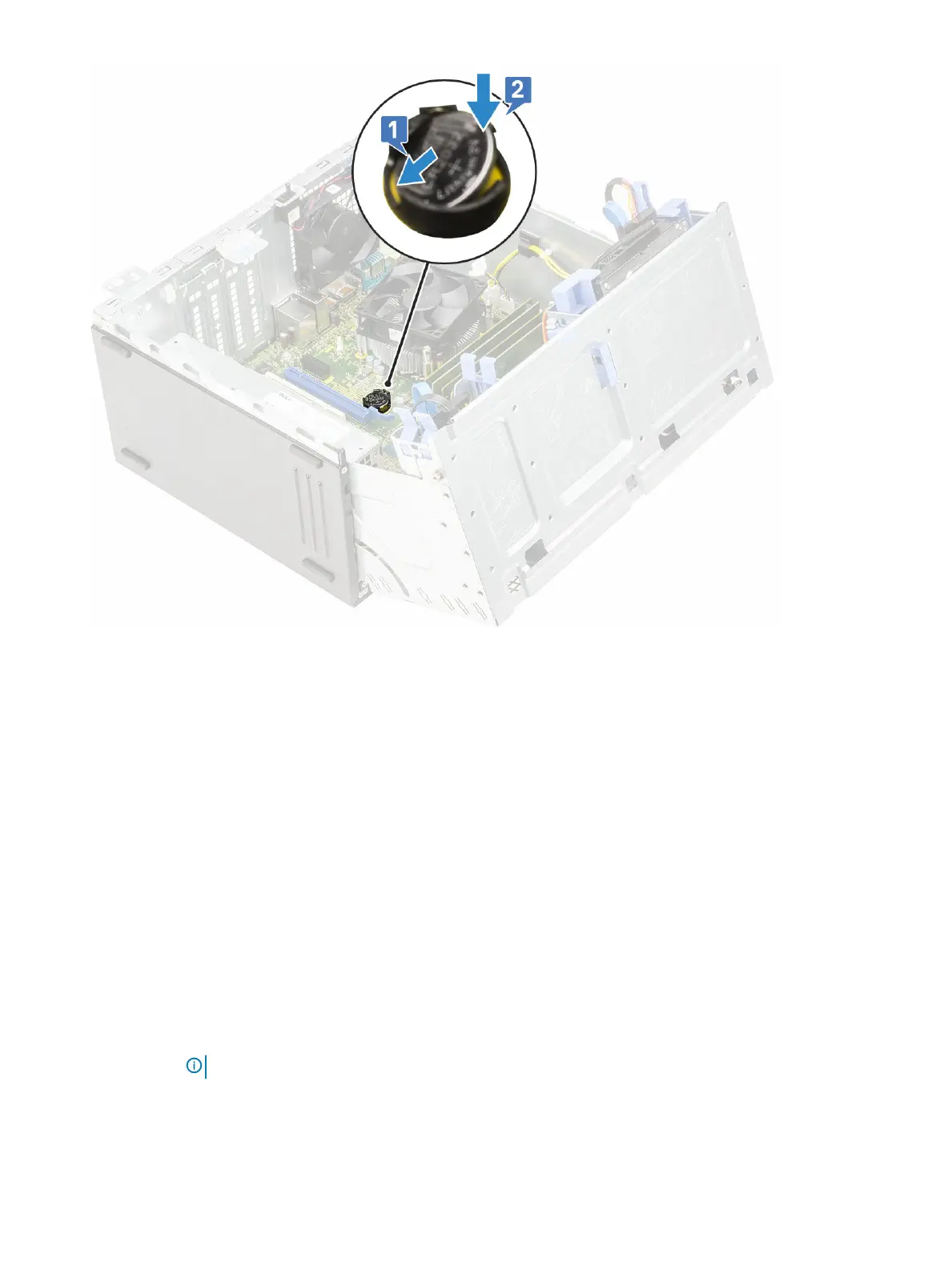

3 Close the front panel door.
4 Install the:
a Front bezel
b Side cover
5 Follow the procedure in After working inside your computer.
Heat sink fan
Removing heat sink fan
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
3 Open the front panel door.
4 To remove the heatsink fan assembly:
a Disconnect the heatsink fan assembly cable from the connector on the system board [1].
b Remove the screws that secure the fan to the heat sink [2].
NOTE
: Ensure to insert the Torx screw driver from top screw hole to remove the screws.
c Lift the heatsink fan away from the computer [3].
54
Removing and installing components
