44 | Removing the Speakers
Procedure
1 Remove the screws that secure the speakers to the palm-rest assembly
.
2 Disconnect the speakers cable from the status-light board.
3 Note the routing of the speakers cable and remove the cable from the routing guide.
4 Lift the speakers along with the its cable off the palm-rest assembly.

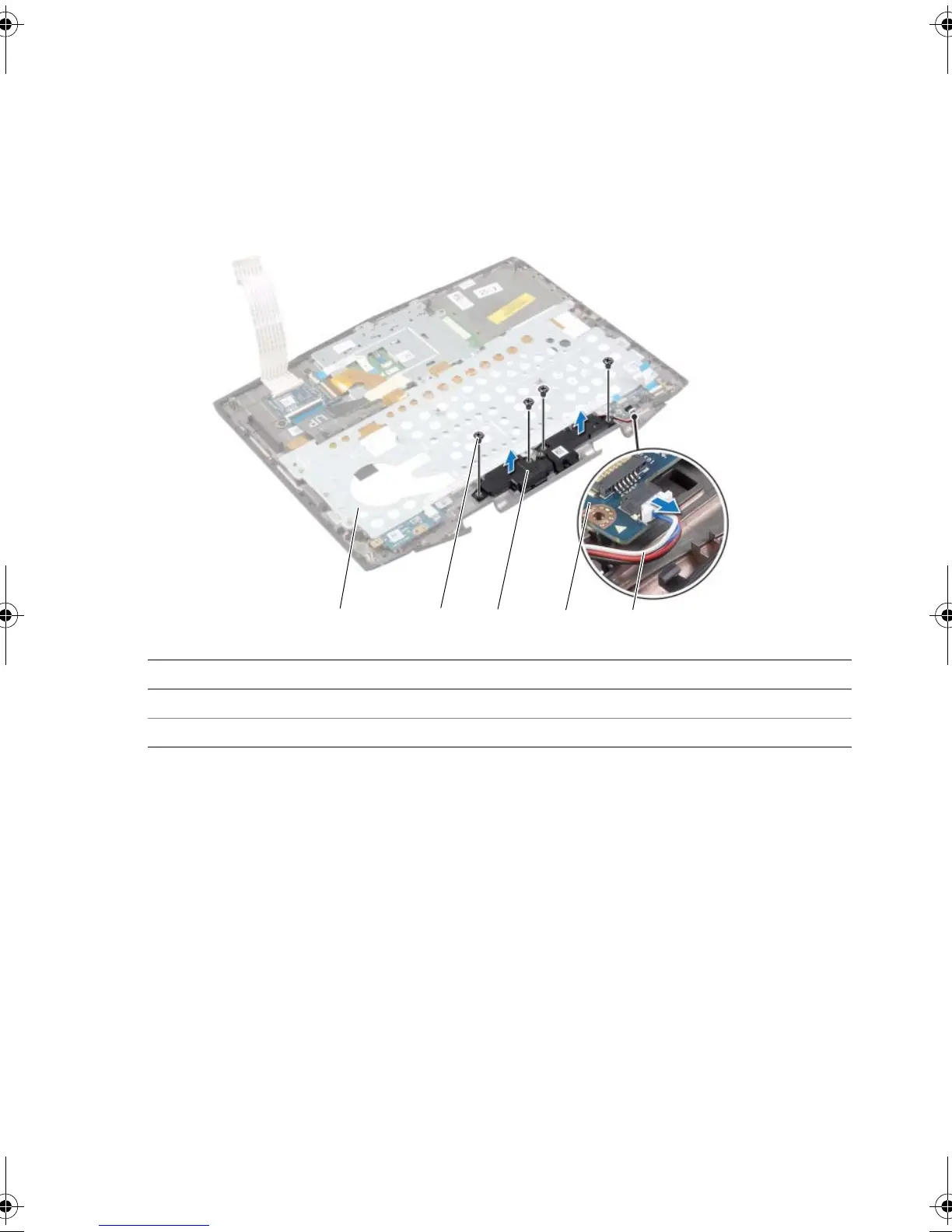

1 palm-rest assembly 2 screws (4)
3 speakers (2) 4 status-light board
5speakers cable
