Removing the Fan | 55
Procedure
1 Peel off the tape on the fan and release the camera cable.
2 Disconnect the fan cable from the system-board connector.
3 Remove the screws that secure the fan to the computer base.
4 Lift the fan along with its cable away from the computer base.

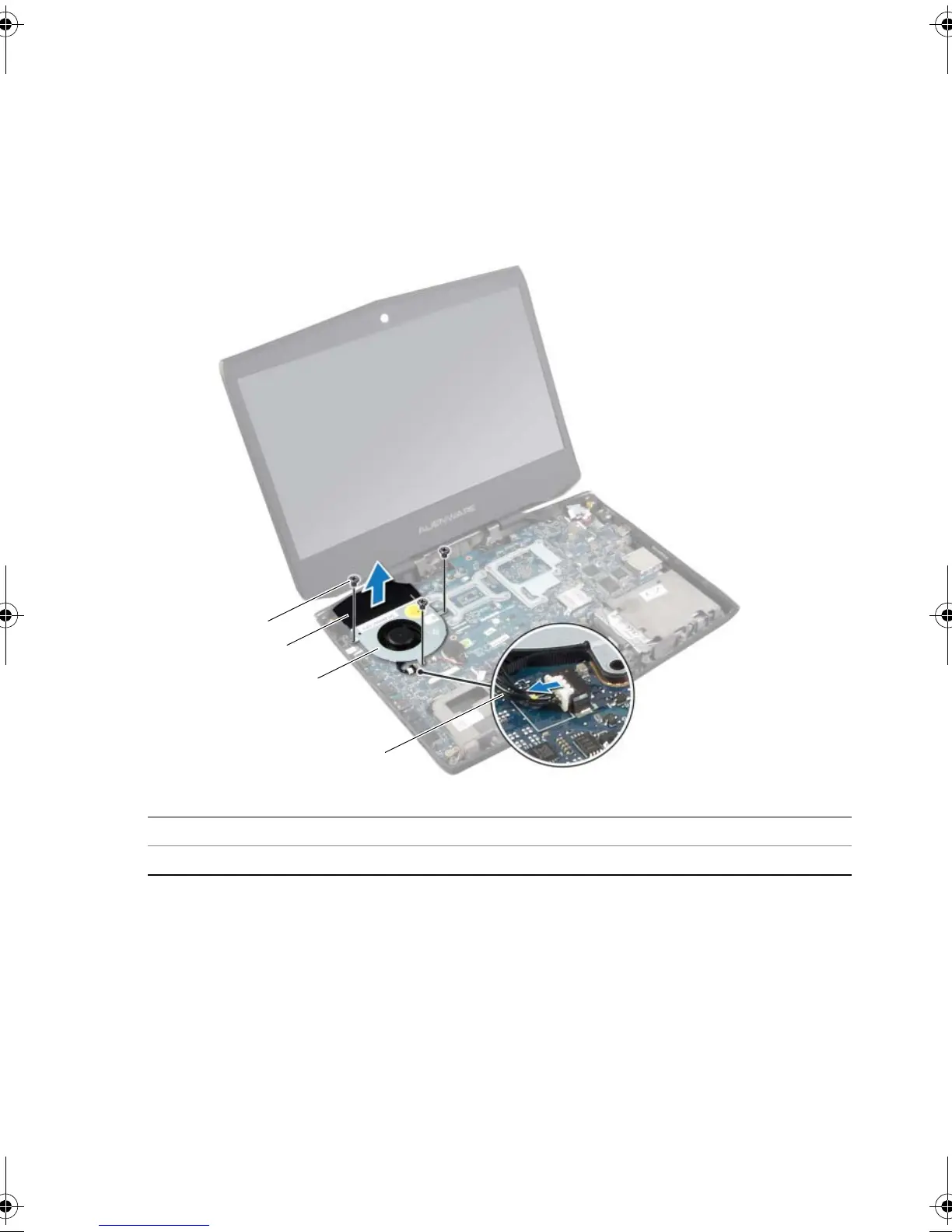

1fan cable 2fan
3 tape 4 screws (3)
