Dell Alienware 14 - Procedure

Removing the Logo Board | 83
Procedure
1 Remove the screws that secure the logo board to the display back-cover.
2 Carefully rotate the logo board over and disconnect the display-light board cables,
logo-board cable and display cable from the logo-board connectors.
3 Lift the logo board off the display back-cover.

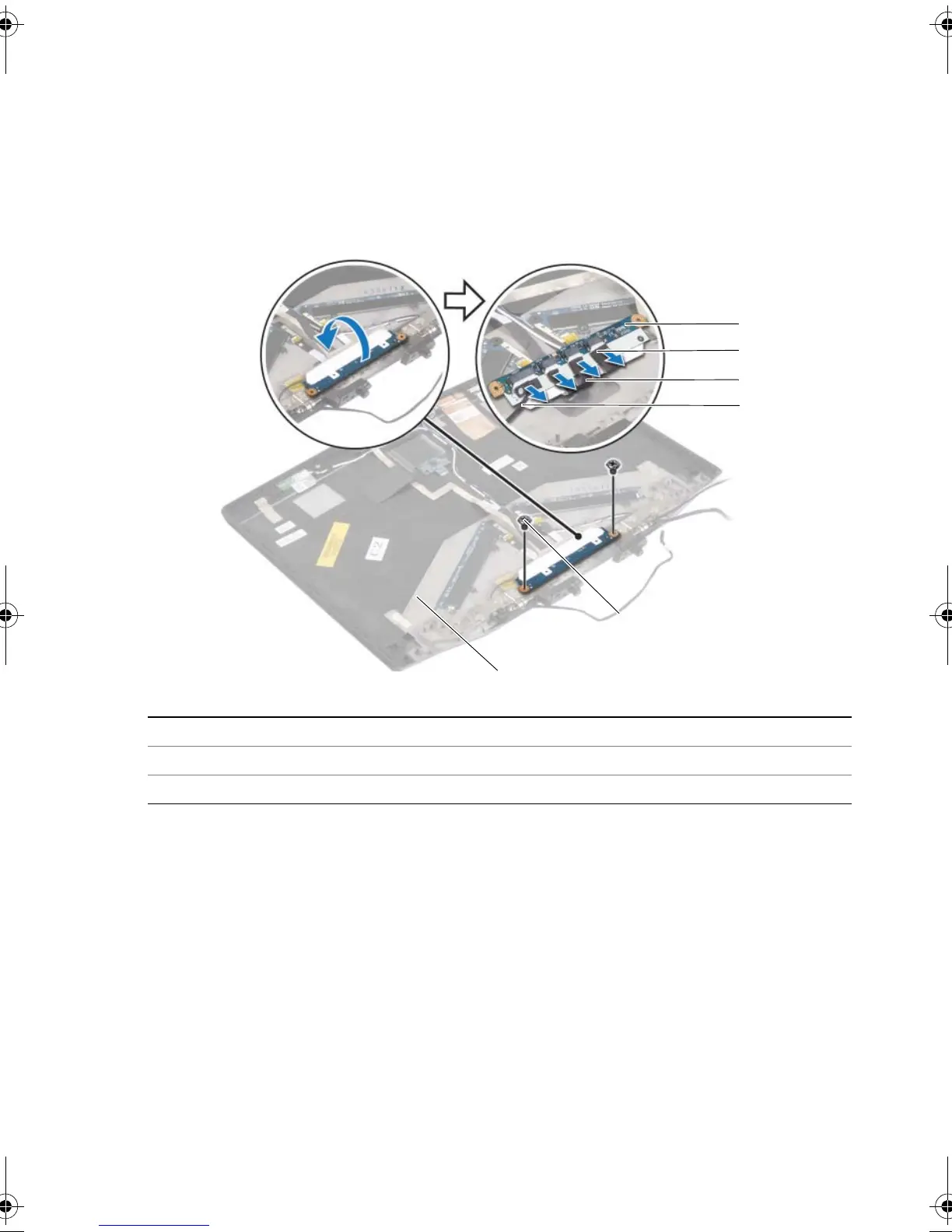

1 logo board 2 display-light board cables
3 logo-board cable 4 display cable
5 screws (2) 6 display back-cover
1
2
5
6
3
4
